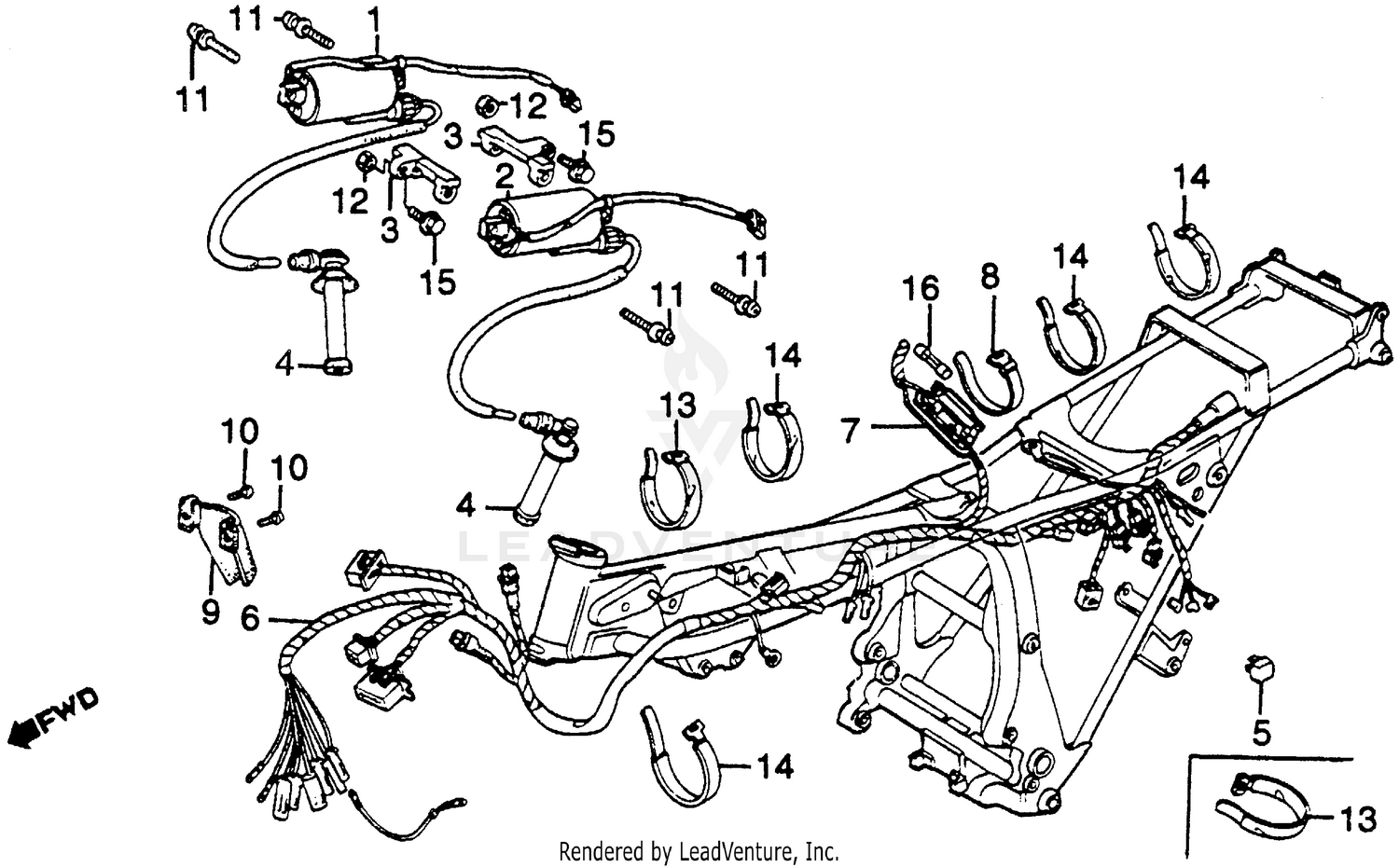

Wire Harness + Ignition Coil Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COIL ASSY., R. IGNITION (TOYO) (NOT AVAILABLE)
30501-MA1-003
|
$87.38 | ||
|
Unavailable |
|||
|
#2
COIL ASSY., L. IGNITION (TOYO) (NOT AVAILABLE)
30502-MA1-003
|
$103.65 | ||
|
Unavailable |
|||
|
#3
STAY, IGNITION COIL (NOT AVAILABLE)
30505-MA1-000
|
$17.69 | ||
|
Unavailable |
|||
|
#4
CAP ASSY. A, NOISE SUPPRESSOR
30700-415-000
Superseded by 30700-415-010
|
$32.34 | ||
|
Unavailable |
|||
|
#4
CAP ASSY. A, NOISE SUPPRESSOR
30700-415-010
|
$32.34 | ||
|
Unavailable |
|||
|
#5
RECTIFIER ASSY., SILICON (SHINDENGEN)
31700-124-003
Superseded by 31700-124-008
|
$36.00 | ||
|
Available to order. Add to View Price |
|||
|
#5
RECTIFIER ASSY., SILICON (SHINDENGEN)
31700-124-008
|
$36.00 | ||
|
Unavailable |
|||
|
#6
WIRE HARNESS (NOT AVAILABLE)
32100-MA1-730
|
$177.95 | ||
|
Unavailable |
|||
|
#7
CASE, FUSE (5A) (NOT AVAILABLE)
32125-463-770
|
$6.13 | ||
|
Unavailable |
|||
|
#8
BAND B1, CABLE
32161-404-000
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#9
PROTECTOR, WIRE (NOT AVAILABLE)
35114-371-000
|
$8.57 | ||
|
Unavailable |
|||
|
#10
SCREW, PAN (3X8)
93500-03008-0A
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, PAN (3X8)
93500-03008-1A
Superseded by 93500-03008-0A
|
$0.87 | ||
|
Unavailable |
|||
|
#11
SCREW-WASHER (5X25)
93891-05025-08
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, FLANGE (6MM)
94050-06080
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BAND B1, CABLE
32161-404-000
|
$2.67 | ||
|
Unavailable |
|||
|
#13
BAND B1, CABLE
95014-61100
Superseded by 32161-404-000
|
$2.67 | ||
|
Unavailable |
|||
|
#14
BAND A2, CABLE
95014-61200
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X25) (NOT AVAILABLE)
95725-06025-08
|
$0.67 | ||
|
Unavailable |
|||
|
#16
FUSE B (5A)
98200-20500
|
$1.38 | ||
|
Available to order. Add to View Price |
|||
