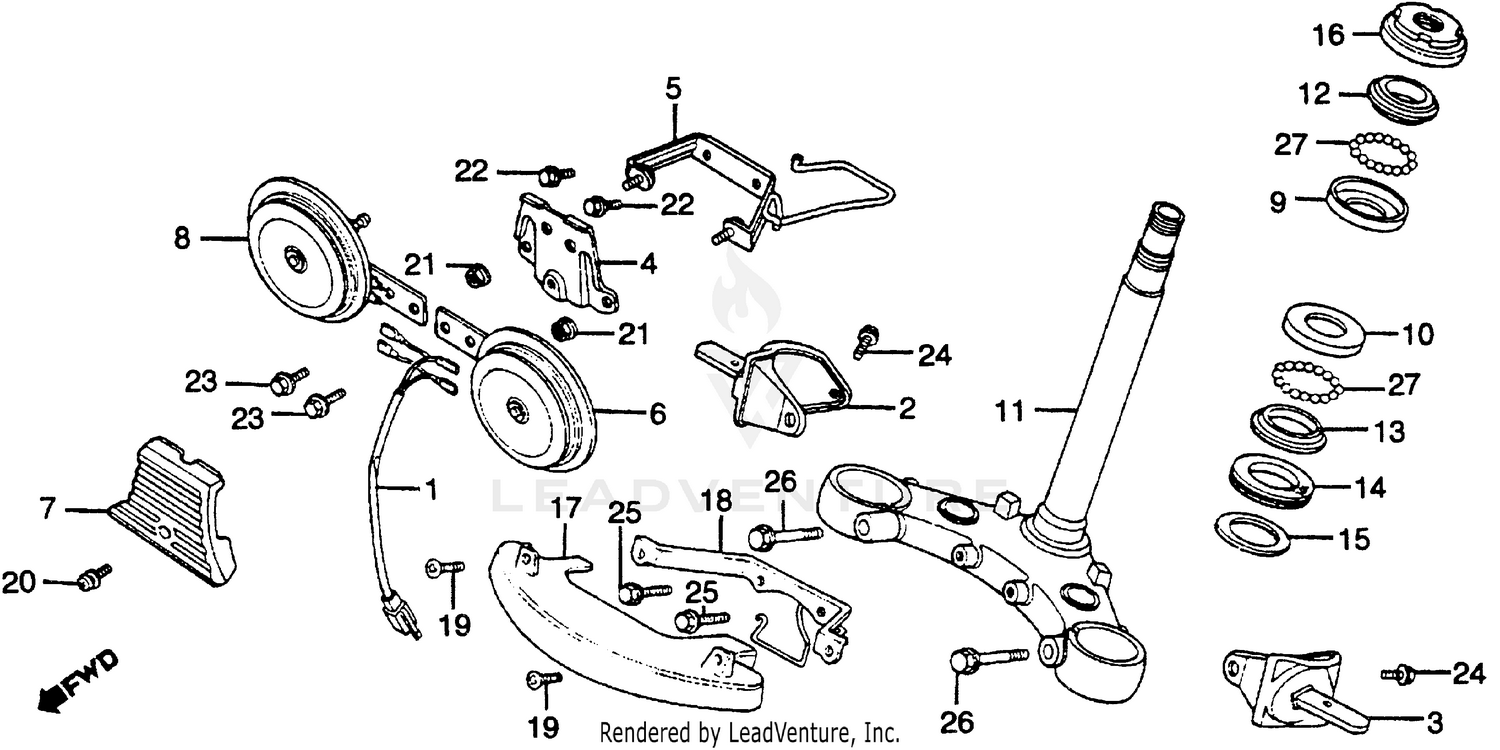

Steering Stem + Horn Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SUB-WIRE HARNESS A (NOT AVAILABLE)
32101-438-000
|
$12.35 | ||
|
Available to order. Add to View Price |
|||
|
#2
STAY, R. TURN SIGNAL (NOT AVAILABLE)
33410-MA1-000
Superseded by 33410-ME2-000
|
$24.02 | ||
|
Unavailable |
|||
|
#2
STAY, R. TURN SIGNAL (NOT AVAILABLE)
33410-ME2-000
|
$24.02 | ||
|
Unavailable |
|||
|
#3
STAY, L. TURN SIGNAL (NOT AVAILABLE)
33610-MA1-000
Superseded by 33610-ME2-000
|
$29.39 | ||
|
Unavailable |
|||
|
#3
STAY, L. TURN SIGNAL (NOT AVAILABLE)
33610-ME2-000
|
$29.39 | ||
|
Unavailable |
|||
|
#4
STAY, HORN
38102-438-004
|
$10.80 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET, HORN (NOT AVAILABLE)
38103-MA1-000
|
$20.96 | ||
|
Unavailable |
|||
|
#6
HORN (HIGH) (MITSUBA)
38110-GT8-621
|
$61.71 | ||
|
Available to order. Add to View Price |
|||
|
#6
HORN (HIGH) (MITSUBA)
38110-ME2-601
Superseded by 38110-GT8-621
|
$61.71 | ||
|
Unavailable |
|||
|
#6
HORN (HIGH) (MITSUBA)
38110-410-004
Superseded by 38110-GT8-621
|
$61.71 | ||
|
Unavailable |
|||
|
#6
HORN (HIGH) (MITSUBA)
38110-438-004
Superseded by 38110-GT8-621
|
$61.71 | ||
|
Unavailable |
|||
|
#6
HORN (HIGH) (MITSUBA)
38110-438-601
Superseded by 38110-GT8-621
|
$61.71 | ||
|
Unavailable |
|||
|
#7
EMBLEM, HORN (NOT AVAILABLE)
38111-438-000
|
$22.10 | ||
|
Unavailable |
|||
|
#8
HORN (LOW)
38120-438-004
Superseded by 38120-438-601
|
$58.75 | ||
|
Unavailable |
|||
|
#8
HORN (LOW)
38120-438-601
|
$58.75 | ||
|
Unavailable |
|||
|
#9
RACE, STEERING TOP BALL
50301-268-000
Superseded by 50301-268-010
|
$26.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
RACE, STEERING BALL (UPPER)
50301-268-010
|
$26.02 | ||
|
Unavailable |
|||
|
#10
RACE, STEERING BALL (LOWER)
50302-268-000
Superseded by 50302-268-010
|
$25.56 | ||
|
Available to order. Add to View Price |
|||
|
#10
RACE, STEERING BALL (LOWER)
50302-268-010
|
$25.56 | ||
|
Unavailable |
|||
|
#11
STEM, STEERING *NH1* (BLACK) (NOT AVAILABLE)
53200-MA1-000ZA
|
$204.15 | ||
|
Unavailable |
|||
|
#12
RACE, STEERING TOP CONE
53211-268-000
Superseded by 53211-268-010
|
$31.64 | ||
|
Available to order. Add to View Price |
|||
|
#12
RACE, STEERING CONE (UPPER)
53211-268-010
|
$31.64 | ||
|
Unavailable |
|||
|
#13
RACE, STEERING CONE (LOWER)
53212-250-000
Superseded by 53212-250-010
|
$25.38 | ||
|
Available to order. Add to View Price |
|||
|
#13
RACE, STEERING CONE (LOWER)
53212-250-010
|
$25.38 | ||
|
Unavailable |
|||
|
#14
DUST SEAL
53214-250-000
Superseded by 53214-K0T-J00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, STEERING HEAD DUST SEAL
53215-250-000
|
$2.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
THREAD, STEERING HEAD (UPPER)
53220-286-000
|
$25.19 | ||
|
Unavailable |
|||
|
#20
SCREW-WASHER (5X20)
93891-05020-07
|
$0.76 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, FLANGE (6MM)
94050-06080
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X10)
95700-06010-08
|
$1.68 | ||
|
Unavailable |
|||
|
#22
BOLT, FLANGE (6X10)
95701-06010-08
|
$1.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X12)
95700-06012-00
Superseded by 95701-06012-00
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X12)
95701-06012-00
|
$2.09 | ||
|
Unavailable |
|||
|
#24
BOLT, FLANGE (6X12)
95700-06012-07
Superseded by 95701-06012-07
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X12)
95701-06012-07
|
$1.70 | ||
|
Unavailable |
|||
|
#26
BOLT, FLANGE (10X35)
95700-10035-07
Superseded by 95701-10035-07
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (10X35)
95701-10035-07
|
$2.29 | ||
|
Unavailable |
|||
|
#27
BALL, STEEL (#8) (1/4)
96211-08000
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
