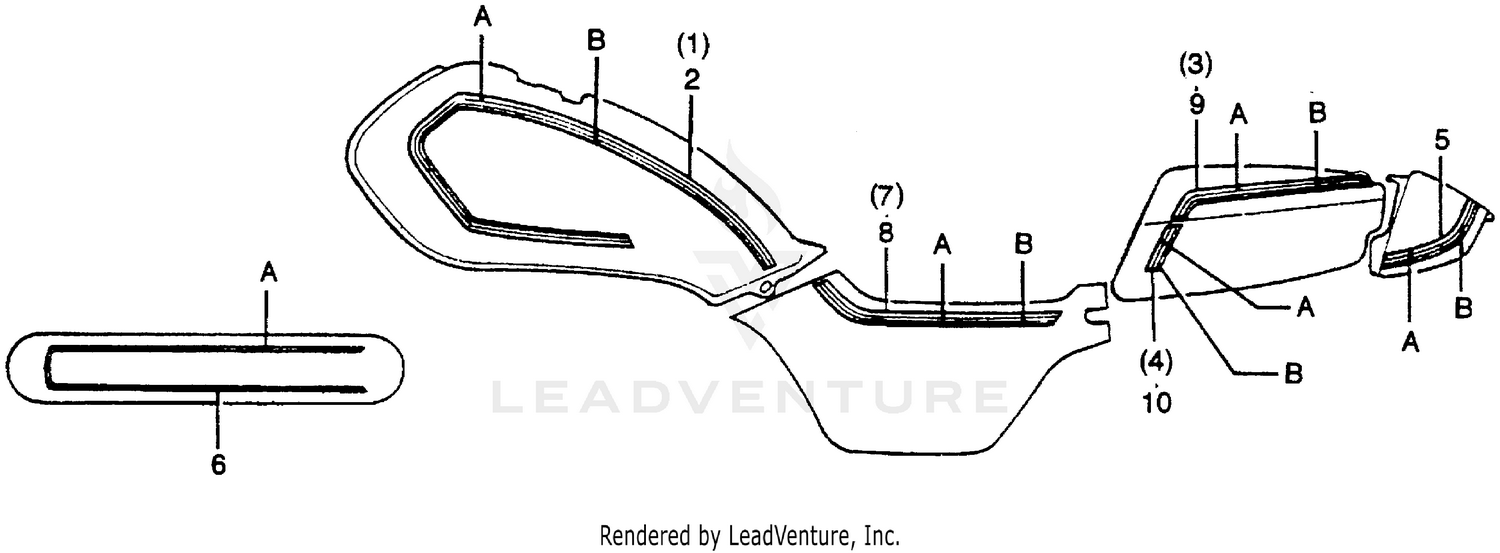

Gl500 Stripe Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STRIPE, R. FUEL TANK (TYPE1) (A.M.) (NOT AVAILABLE)
87111-MA1-730ZA
|
$49.33 | ||
|
Unavailable |
|||
|
#1
STRIPE, R. FUEL TANK (TYPE2) (A.M.) (NOT AVAILABLE)
87111-MA1-730ZB
|
$55.16 | ||
|
Unavailable |
|||
|
#2
STRIPE, L. FUEL TANK (TYPE1) (A.M.) (NOT AVAILABLE)
87112-MA1-730ZA
|
$49.33 | ||
|
Unavailable |
|||
|
#2
STRIPE, L. FUEL TANK (TYPE2) (A.M.) (NOT AVAILABLE)
87112-MA1-730ZB
|
$55.16 | ||
|
Unavailable |
|||
|
#3
STRIPE, R. TRUNK (UPPER) (TYPE1) (A.M.) (NOT AVAILABLE)
87115-MA1-730ZA
|
$26.77 | ||
|
Unavailable |
|||
|
#3
STRIPE, R. TRUNK (UPPER) (TYPE2) (A.M.) (NOT AVAILABLE)
87115-MA1-730ZB
|
$34.79 | ||
|
Unavailable |
|||
|
#4
STRIPE, R. TRUNK (LOWER) (TYPE1) (A.M.)
87116-MA1-730ZA
|
$9.96 | ||
|
Unavailable |
|||
|
#4
STRIPE, R. TRUNK (LOWER) (TYPE2) (A.M.) (NOT AVAILABLE)
87116-MA1-730ZB
|
$7.32 | ||
|
Unavailable |
|||
|
#5
STRIPE, RR. COWL (TYPE1) (A.M.) (NOT AVAILABLE)
87117-MA1-730ZA
|
$29.95 | ||
|
Unavailable |
|||
|
#5
STRIPE, RR. COWL (TYPE2) (A.M.) (NOT AVAILABLE)
87117-MA1-730ZB
|
$29.95 | ||
|
Unavailable |
|||
|
#6
STRIPE, FR. FENDER (TYPE1) (A.M.) (NOT AVAILABLE)
87118-MA1-730ZA
|
$73.50 | ||
|
Unavailable |
|||
|
#6
STRIPE, FR. FENDER (TYPE2) (A.M.)
87118-MA1-730ZB
|
$100.15 | ||
|
Unavailable |
|||
|
#7
STRIPE, R. SIDE COVER (TYPE1) (A.M.) (NOT AVAILABLE)
87128-MA1-730ZA
|
$18.71 | ||
|
Unavailable |
|||
|
#7
STRIPE, R. SIDE COVER (TYPE2) (A.M.) (NOT AVAILABLE)
87128-MA1-730ZB
|
$18.71 | ||
|
Unavailable |
|||
|
#8
STRIPE, L. SIDE COVER (TYPE1) (A.M.) (NOT AVAILABLE)
87129-MA1-730ZA
|
$18.71 | ||
|
Unavailable |
|||
|
#8
STRIPE, L. SIDE COVER (TYPE2) (A.M.) (NOT AVAILABLE)
87129-MA1-730ZB
|
$21.74 | ||
|
Unavailable |
|||
|
#9
STRIPE, L. TRUNK (UPPER) (TYPE1) (A.M.)
87145-MA1-730ZA
|
$40.83 | ||
|
Unavailable |
|||
|
#9
STRIPE, L. TRUNK (UPPER) (TYPE2) (A.M.) (NOT AVAILABLE)
87145-MA1-730ZB
|
$34.79 | ||
|
Unavailable |
|||
|
#10
STRIPE, L. TRUNK (LOWER) (TYPE1) (A.M.)
87146-MA1-730ZA
|
$9.96 | ||
|
Unavailable |
|||
|
#10
STRIPE, L. TRUNK (LOWER) (TYPE2) (A.M.)
87146-MA1-730ZB
|
$9.96 | ||
|
Unavailable |
|||
