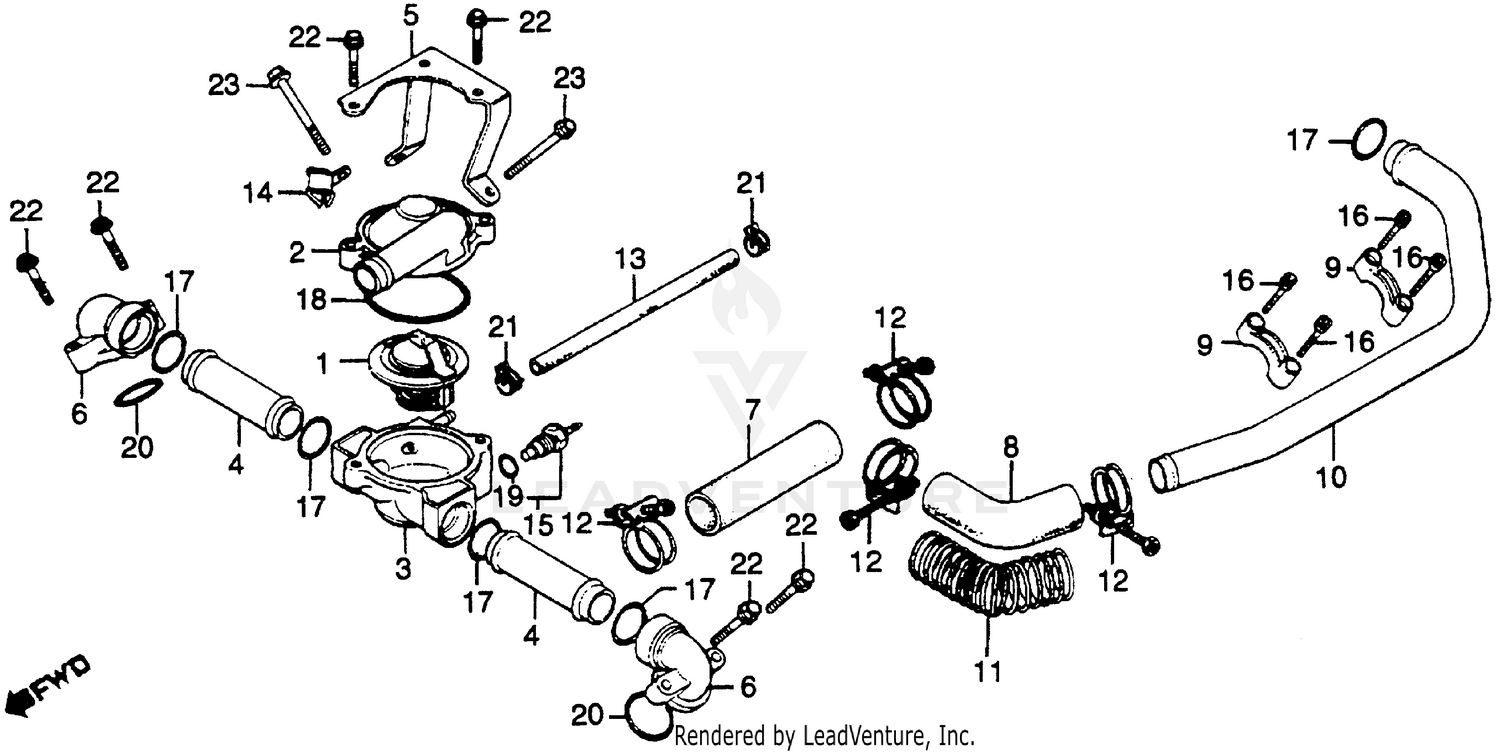

Thermostat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
THERMOSTAT UNIT
19300-611-005
|
$54.80 | ||
|
Available to order. Add to View Price |
|||
|
#1
THERMOSTAT UNIT
19300-657-003
Superseded by 19300-611-005
|
$54.80 | ||
|
Unavailable |
|||
|
#2
COVER, THERMOSTAT (NOT AVAILABLE)
19315-MA1-000
|
$27.79 | ||
|
Unavailable |
|||
|
#3
CASE, THERMOSTAT (NOT AVAILABLE)
19411-415-000
|
$50.07 | ||
|
Unavailable |
|||
|
#4
PIPE, WATER (UPPER) (NOT AVAILABLE)
19414-415-000
|
$15.35 | ||
|
Unavailable |
|||
|
#5
STAY, THERMOSTAT (NOT AVAILABLE)
19418-415-010
|
$13.94 | ||
|
Unavailable |
|||
|
#6
JOINT A, WATER PIPE
19421-415-000
|
$32.65 | ||
|
Unavailable |
|||
|
#7
HOSE, WATER (UPPER) (NOT AVAILABLE)
19501-MA1-000
|
$10.22 | ||
|
Unavailable |
|||
|
#8
HOSE, WATER (LOWER)
19502-415-000
|
$21.47 | ||
|
Unavailable |
|||
|
#9
CLAMP, WATER PIPE (NOT AVAILABLE)
19503-415-000
|
$8.12 | ||
|
Unavailable |
|||
|
#10
PIPE, RR. WATER (NOT AVAILABLE)
19504-415-000
|
$62.86 | ||
|
Unavailable |
|||
|
#11
WIRE B, GUARD (NOT AVAILABLE)
19512-449-000
|
$10.31 | ||
|
Unavailable |
|||
|
#12
BAND, HOSE (NOT AVAILABLE)
19515-449-000
|
$5.20 | ||
|
Unavailable |
|||
|
#13
TUBE (5X240) (NOT AVAILABLE)
19521-415-000
|
$6.06 | ||
|
Unavailable |
|||
|
#14
CLAMP A, CABLE (NOT AVAILABLE)
32111-333-000
Superseded by 32117-371-000
|
$3.23 | ||
|
Unavailable |
|||
|
#15
SENDING UNIT, WATER TEMPERATURE (DENSO)
37750-611-154
|
$63.80 | ||
|
Unavailable |
|||
|
#16
BOLT, SPECIAL (5X22) (NOT AVAILABLE)
90089-415-000
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING (21.9X2.3)
91301-MB6-003
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING (21.9X2.3)
91302-371-013
Superseded by 91301-MB6-003
|
$2.42 | ||
|
Unavailable |
|||
|
#17
O-RING (21.9X2.3)
91302-371-023
Superseded by 91301-MB6-003
|
$2.42 | ||
|
Unavailable |
|||
|
#18
O-RING (53.8X3.1)
91302-657-000
|
$6.28 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING (13.5X1.4)
91307-PH7-660
|
$3.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
O-RING (13.5X1.4)
91307-611-000
Superseded by 91307-PH7-660
|
$3.20 | ||
|
Unavailable |
|||
|
#20
O-RING (23X2.8)
94608-50000
|
$1.18 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
CLIP, TUBE (D10.5)
95002-41050-08
|
$2.65 | ||
|
Unavailable |
|||
|
#22
BOLT, FLANGE (6X25)
95700-06025-00
Superseded by 95701-06025-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X25)
95701-06025-00
|
$1.88 | ||
|
Unavailable |
|||
|
#23
BOLT, FLANGE (6X50)
95700-06050-00
Superseded by 95701-06050-00
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X50)
95701-06050-00
|
$2.27 | ||
|
Unavailable |
|||
