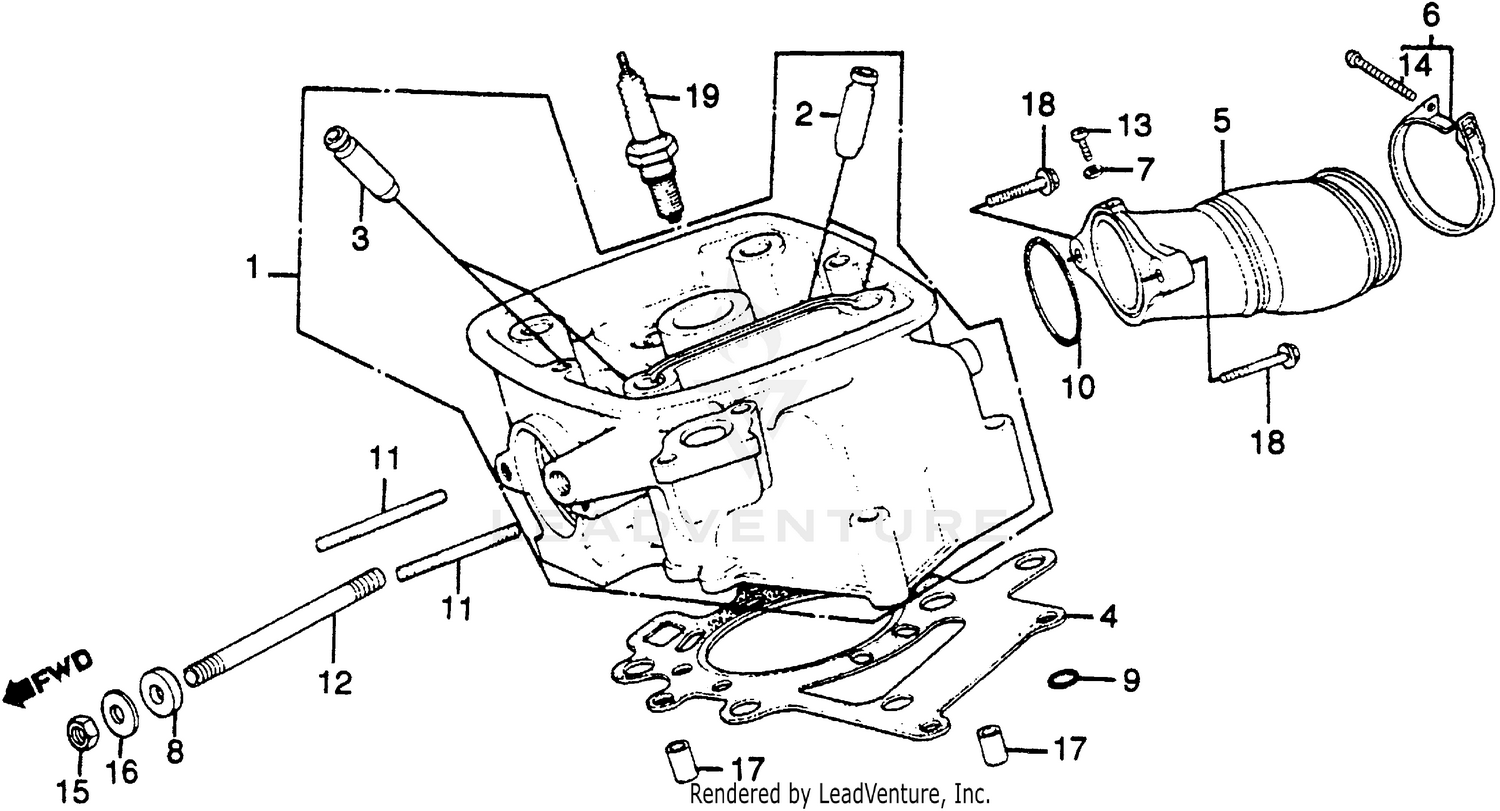

Right Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD, R.
12200-MA1-000
|
$446.87 | ||
|
Unavailable |
|||
|
#2
GUIDE, IN VALVE
12231-415-305
Superseded by 12233-MG8-405
|
$20.26 | ||
|
Unavailable |
|||
|
#2
GUIDE, IN VALVE
12233-MG8-405
|
$20.26 | ||
|
Unavailable |
|||
|
#3
GUIDE, IN VALVE
12233-MG8-405
|
$20.26 | ||
|
Unavailable |
|||
|
#3
GUIDE, IN VALVE
12241-415-305
Superseded by 12233-MG8-405
|
$20.26 | ||
|
Unavailable |
|||
|
#4
GASKET, CYLINDER HEAD
12251-415-014
Superseded by 12251-415-306
|
$35.95 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, CYLINDER HEAD
12251-415-024
Superseded by 12251-415-306
|
$35.95 | ||
|
Unavailable |
|||
|
#4
GASKET, CYLINDER HEAD
12251-415-034
Superseded by 12251-415-306
|
$35.95 | ||
|
Unavailable |
|||
|
#4
GASKET, CYLINDER HEAD
12251-415-306
|
$35.95 | ||
|
Unavailable |
|||
|
#5
INSULATOR, R. CARBURETOR
16211-MA1-000
|
$73.30 | ||
|
Unavailable |
|||
|
#6
BAND, AIR CLEANER CONNECTING TUBE (56)
17255-356-000
Superseded by 95018-56200
|
$11.57 | ||
|
Available to order. Add to View Price |
|||
|
#6
BAND, AIR CLEANER CONNECTING TUBE (56)
90651-GHB-710
Superseded by 95018-56200
|
$11.57 | ||
|
Unavailable |
|||
|
#6
BAND, AIR CLEANER CONNECTING TUBE (56)
95018-56200
|
$11.57 | ||
|
Unavailable |
|||
|
#7
WASHER, SEALING (5MM)
90452-323-000
|
$1.91 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER (10X24) (NOT AVAILABLE)
90455-MA1-000
Superseded by 90516-187-000
|
$1.34 | ||
|
Unavailable |
|||
|
#9
O-RING (6.9X1.5)
91302-044-013
|
$2.10 | ||
|
Unavailable |
|||
|
#10
O-RING (40X2.4)
91325-413-830
|
$10.56 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING (40X2.4)
91325-567-005
Superseded by 91325-413-830
|
$10.56 | ||
|
Unavailable |
|||
|
#11
BOLT, STUD (6X55)
92700-06055
Superseded by 92700-06055-0B
|
$1.76 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, STUD (6X55)
92700-06055-0B
|
$1.76 | ||
|
Unavailable |
|||
|
#12
BOLT, STUD (10X80)
92700-10100
Superseded by 92900-10080-0B
|
$3.97 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, STUD (10X80)
92900-10080-0B
|
$3.97 | ||
|
Unavailable |
|||
|
#13
SCREW, PAN (5X8)
93500-05008-0A
|
$0.92 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
SCREW, PAN (5X20)
93500-05020-0G
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, FLANGE (10MM)
94050-10000
|
$1.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
PIN A, DOWEL (8X14) (YAMADA)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X22)
96000-06022-00
Superseded by 96001-06022-00
|
$1.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X22)
96001-06022-00
|
$1.42 | ||
|
Unavailable |
|||
|
#19
SPARK PLUG (DR8ES-L) (NGK)
98069-38716
Superseded by 98069-38719
|
$2.91 | ||
|
Unavailable |
|||
|
#19
SPARK PLUG (DR8ES-L) (NGK)
98069-38719
|
$2.91 | ||
|
Unavailable |
|||
|
#19
SPARK PLUG (X24ESR-U) (DENSO)
98069-58726
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPARK PLUG (DR8ES) (NGK)
98069-58716
Superseded by 98069-58719
|
$2.91 | ||
|
Unavailable |
|||
|
#19
SPARK PLUG (DR8ES) (NGK)
98069-58719
|
$2.91 | ||
|
Unavailable |
|||
|
#19
SPARK PLUG (X27ESR-U) (DENSO)
98069-59726
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
