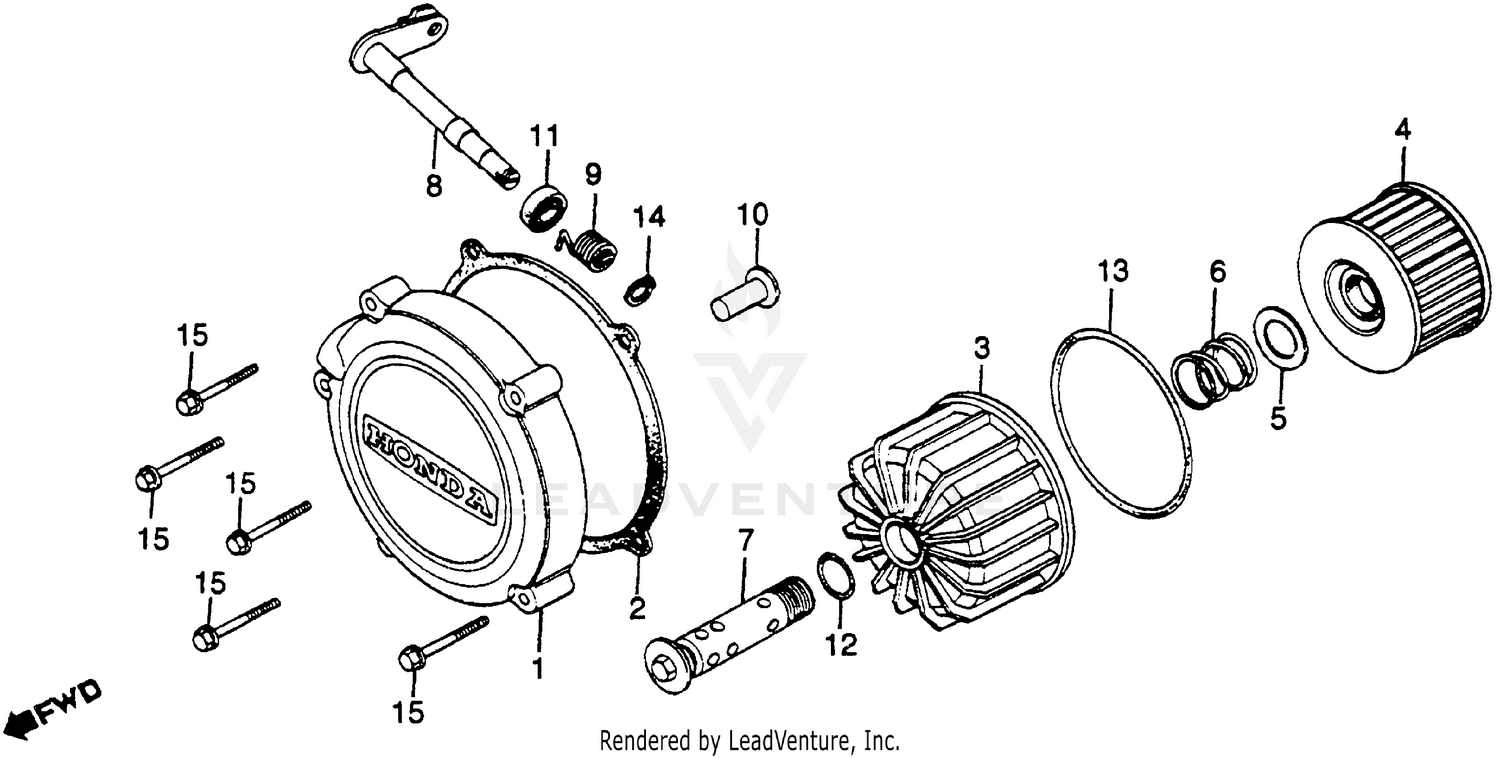

Clutch Cover + Oil Filter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CLUTCH (NOT AVAILABLE)
11370-449-000
|
$199.94 | ||
|
Unavailable |
|||
|
#2
GASKET, CLUTCH COVER
11372-449-306
|
$9.53 | ||
|
Unavailable |
|||
|
#2
GASKET, CLUTCH COVER
11372-449-700
Superseded by 11372-449-306
|
$9.53 | ||
|
Unavailable |
|||
|
#3
CASE, OIL FILTER (NOT AVAILABLE)
15411-449-000
|
$71.30 | ||
|
Unavailable |
|||
|
#4
ELEMENT, OIL FILTER
154A1-MA6-000
Superseded by 154A1-413-505
|
$11.14 | ||
|
Available to order. Add to View Price |
|||
|
#4
ELEMENT, OIL FILTER
154A1-413-005
Superseded by 154A1-413-505
|
$11.14 | ||
|
Unavailable |
|||
|
#4
FILTER, OIL
154A1-415-000
|
|||
|
Unavailable |
|||
|
#4
ELEMENT, OIL FILTER
15412-413-005
Superseded by 154A1-413-505
|
$11.14 | ||
|
Unavailable |
|||
|
#5
SEAT, OIL FILTER SPRING
15414-300-000
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, FILTER ELEMENT SETTING
15415-413-000
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, OIL FILTER CENTER
15420-MA6-000
|
$46.24 | ||
|
Unavailable |
|||
|
#7
BOLT, OIL FILTER CENTER
15420-415-000
Superseded by 15420-MA6-000
|
$46.24 | ||
|
Unavailable |
|||
|
#8
SHAFT, CLUTCH LEVER (NOT AVAILABLE)
22811-449-000
|
$34.25 | ||
|
Unavailable |
|||
|
#9
SPRING, CLUTCH LEVER
22815-413-000
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#10
ROD, CLUTCH LIFTER
22847-415-000
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
OIL SEAL (12X18X3) (ARAI)
91201-951-003
|
$4.62 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING (15X2.5)
91302-377-000
|
$6.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
O-RING (81X4.5) (ARAI)
91311-415-000
Superseded by 91315-MA6-003
|
$3.93 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING (81X4.5) (ARAI)
91315-MA6-003
|
$3.93 | ||
|
Unavailable |
|||
|
#14
CIRCLIP (OUTER) (10MM)
94510-10000
|
$1.15 | ||
|
Unavailable |
|||
|
#15
BOLT, FLANGE (6X28)
96000-06028-00
Superseded by 96001-06028-00
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X28)
96001-06028-00
|
$2.27 | ||
|
Unavailable |
|||
