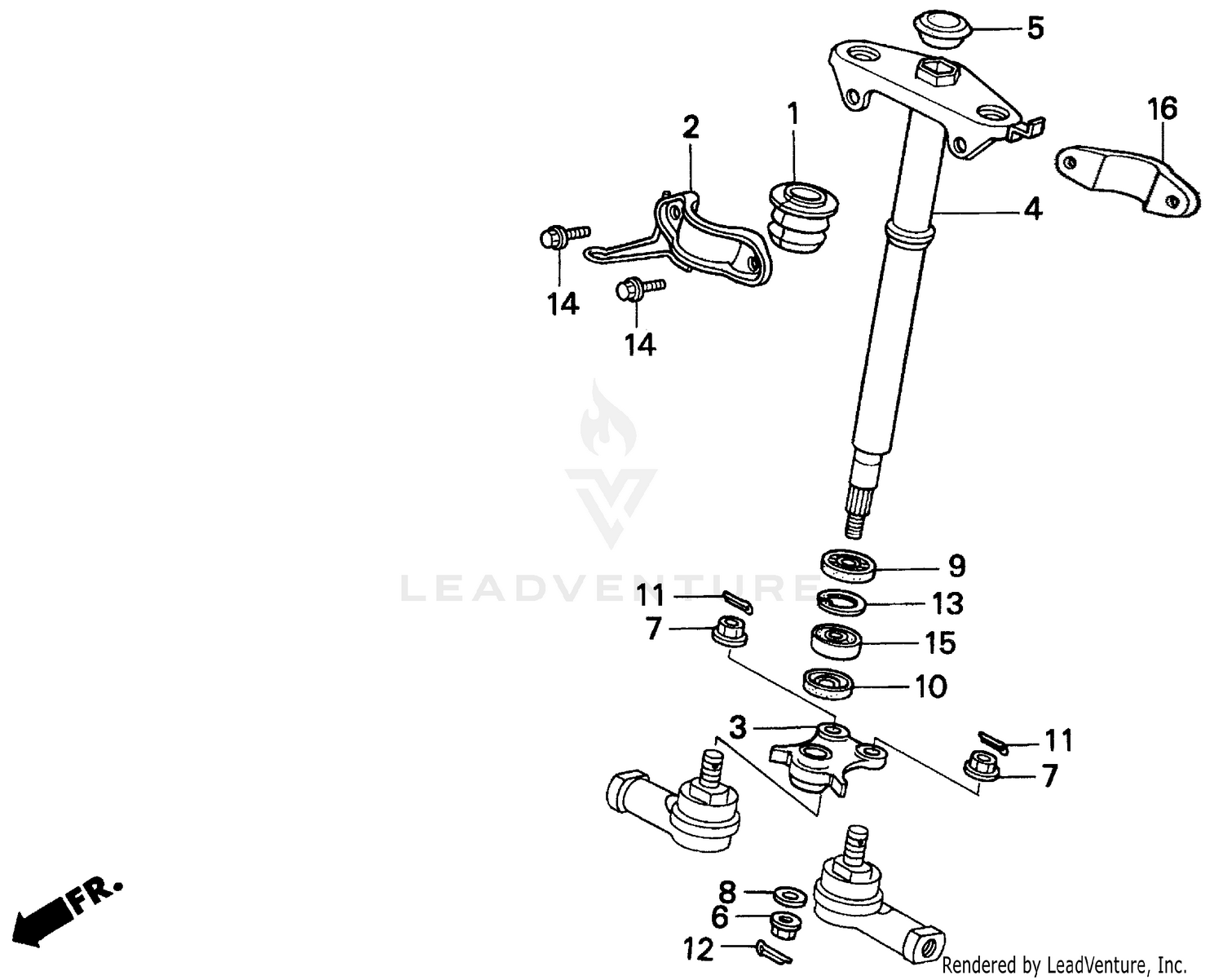

Steering Shaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BUSH, STEERING
53221-HC4-004
|
$38.13 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOLDER A, STEERING SHAFT (NOT AVAILABLE)
53224-HC5-970
|
$22.12 | ||
|
Unavailable |
|||
|
#3
ARM, STEERING (SOURCE: VINTAGE PARTS INC.)
53235-HM4-930
|
$152.93 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHAFT, STEERING (NOT AVAILABLE)
53310-HM4-850
|
$160.77 | ||
|
Unavailable |
|||
|
#5
CAP, STEERING SHAFT (NOT AVAILABLE)
53314-HC4-000
|
$8.70 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, U (14MM)
90305-GE8-003
|
$4.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
NUT, SELF-LOCK (12MM)
90305-HC4-000
|
$5.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
WASHER, THRUST (14MM)
90402-HA0-000
|
$4.73 | ||
|
Available to order. Add to View Price |
|||
|
#9
OIL SEAL (25X42X7) (ARAI)
91205-950-003
|
$11.87 | ||
|
Available to order. Add to View Price |
|||
|
#10
DUST SEAL (37X25X6)
91258-HB3-003
|
$9.11 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, SPLIT (2.0X22)
94201-20220
|
$1.08 | ||
|
Unavailable |
|||
|
#11
PIN, COTTER (2.0X35)
94201-20250
Superseded by 94201-20350
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, COTTER (2.0X35)
94201-20280
Superseded by 94201-20350
|
$1.08 | ||
|
Unavailable |
|||
|
#11
PIN, COTTER (2.0X35)
94201-20320
Superseded by 94201-20350
|
$1.08 | ||
|
Unavailable |
|||
|
#11
PIN, SPLIT (2.0X35)
94201-20350
|
$1.08 | ||
|
Unavailable |
|||
|
#12
PIN, COTTER (3.0X45)
94201-30250
Superseded by 94201-30450
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, COTTER (3.0X45)
94201-30300
Superseded by 94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#12
PIN, COTTER (3.0X45)
94201-30400
Superseded by 94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#12
PIN, SPLIT (3.0X45)
94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#13
CIRCLIP (INNER) (42MM)
94520-42000
|
$2.27 | ||
|
Unavailable |
|||
|
#14
BOLT, FLANGE (8X16)
95701-08016-07
|
$1.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BEARING, RADIAL BALL (6004UU)
96150-60041-10
|
$28.60 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOLDER, STEERING SHAFT
53223-HC4-000
|
$22.44 | ||
|
Available to order. Add to View Price |
|||
