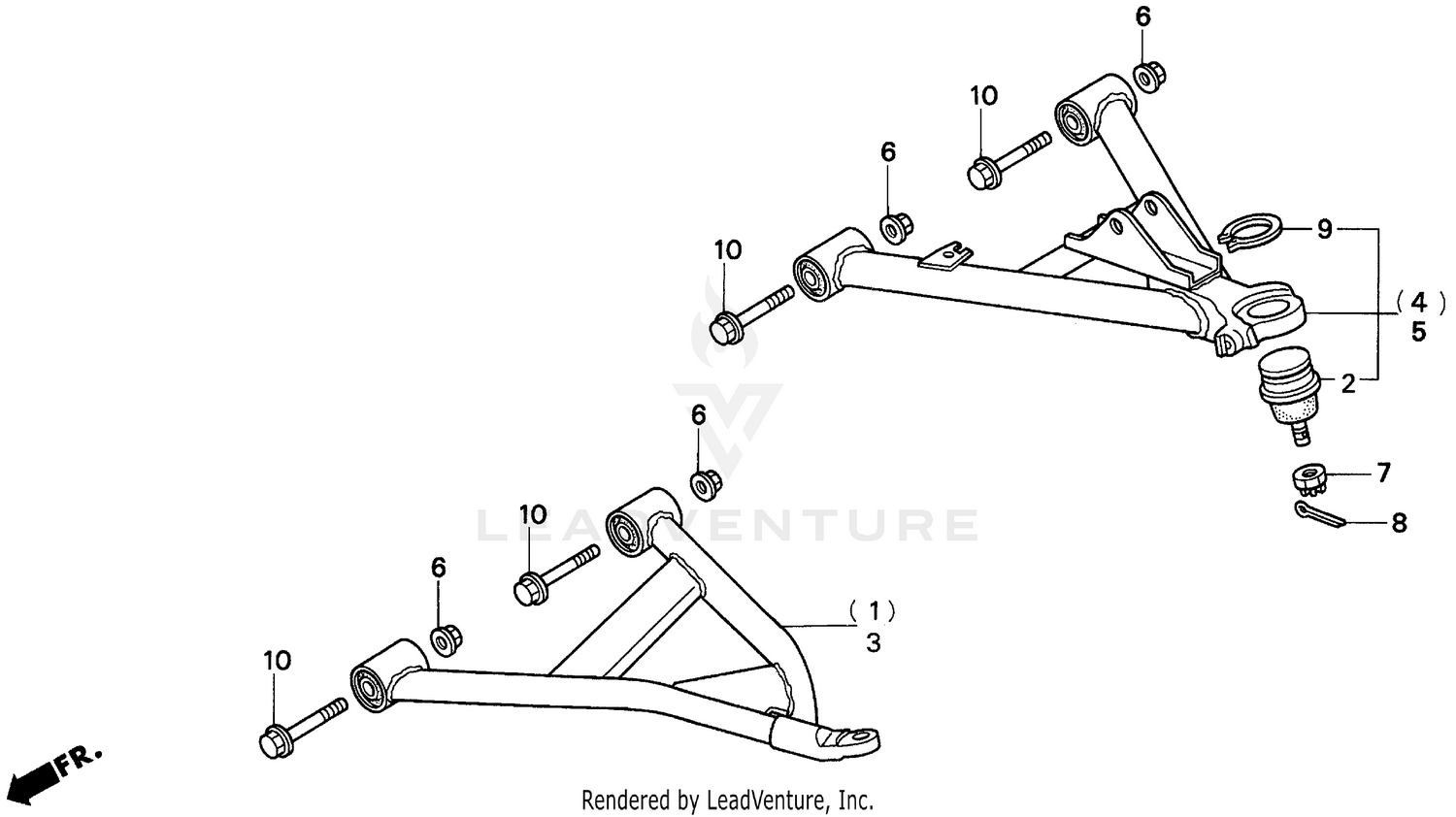

300 Front Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ARM ASSY., R. FR. (LOWER) (SOURCE: VINTAGE PARTS INC.)
51350-HM4-850
|
$242.73 | ||
|
Available to order. Add to View Price |
|||
|
#2
JOINT A, ARM BALL
51355-HM5-A81
Superseded by 51355-HP5-601
|
$22.84 | ||
|
Available to order. Add to View Price |
|||
|
#2
JOINT A, ARM BALL
51355-HM5-931
Superseded by 51355-HP5-601
|
$22.84 | ||
|
Unavailable |
|||
|
#2
JOINT A, ARM BALL
51355-HP5-601
|
$22.84 | ||
|
Unavailable |
|||
|
#3
ARM ASSY., L. FR. (LOWER)
51360-HM4-850
|
$242.73 | ||
|
Available to order. Add to View Price |
|||
|
#4
ARM ASSY., R. (UPPER) (SOURCE: VINTAGE PARTS INC.)
51370-HM4-A10
Superseded by 51370-HM4-A20
|
$274.34 | ||
|
Unavailable |
|||
|
#4
ARM ASSY., R. (UPPER) (SOURCE: VINTAGE PARTS INC.)
51370-HM4-A20
|
$274.34 | ||
|
Unavailable |
|||
|
#4
ARM ASSY., R. (UPPER) (SOURCE: VINTAGE PARTS INC.)
51370-HM4-930
Superseded by 51370-HM4-A20
|
$274.34 | ||
|
Unavailable |
|||
|
#5
ARM ASSY., L. (UPPER) (SOURCE: VINTAGE PARTS INC.)
51380-HM4-A10
Superseded by 51380-HM4-A20
|
$286.00 | ||
|
Available to order. Add to View Price |
|||
|
#5
ARM ASSY., L. (UPPER) (SOURCE: VINTAGE PARTS INC.)
51380-HM4-A20
|
$286.00 | ||
|
Unavailable |
|||
|
#5
ARM ASSY., L. (UPPER) (SOURCE: VINTAGE PARTS INC.)
51380-HM4-930
Superseded by 51380-HM4-A20
|
$286.00 | ||
|
Unavailable |
|||
|
#6
NUT, SELF-LOCK (10MM)
90305-HC0-770
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, CASTLE (12MM)
90310-HB9-000
|
$7.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, SPLIT (3.0X18)
94201-30180
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
CIRCLIP (OUTER) (32MM)
94514-32000
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (10X62)
90151-HC5-000
|
$9.74 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (10X62)
95801-10065-00
Superseded by 90151-HC5-000
|
$9.74 | ||
|
Unavailable |
|||
