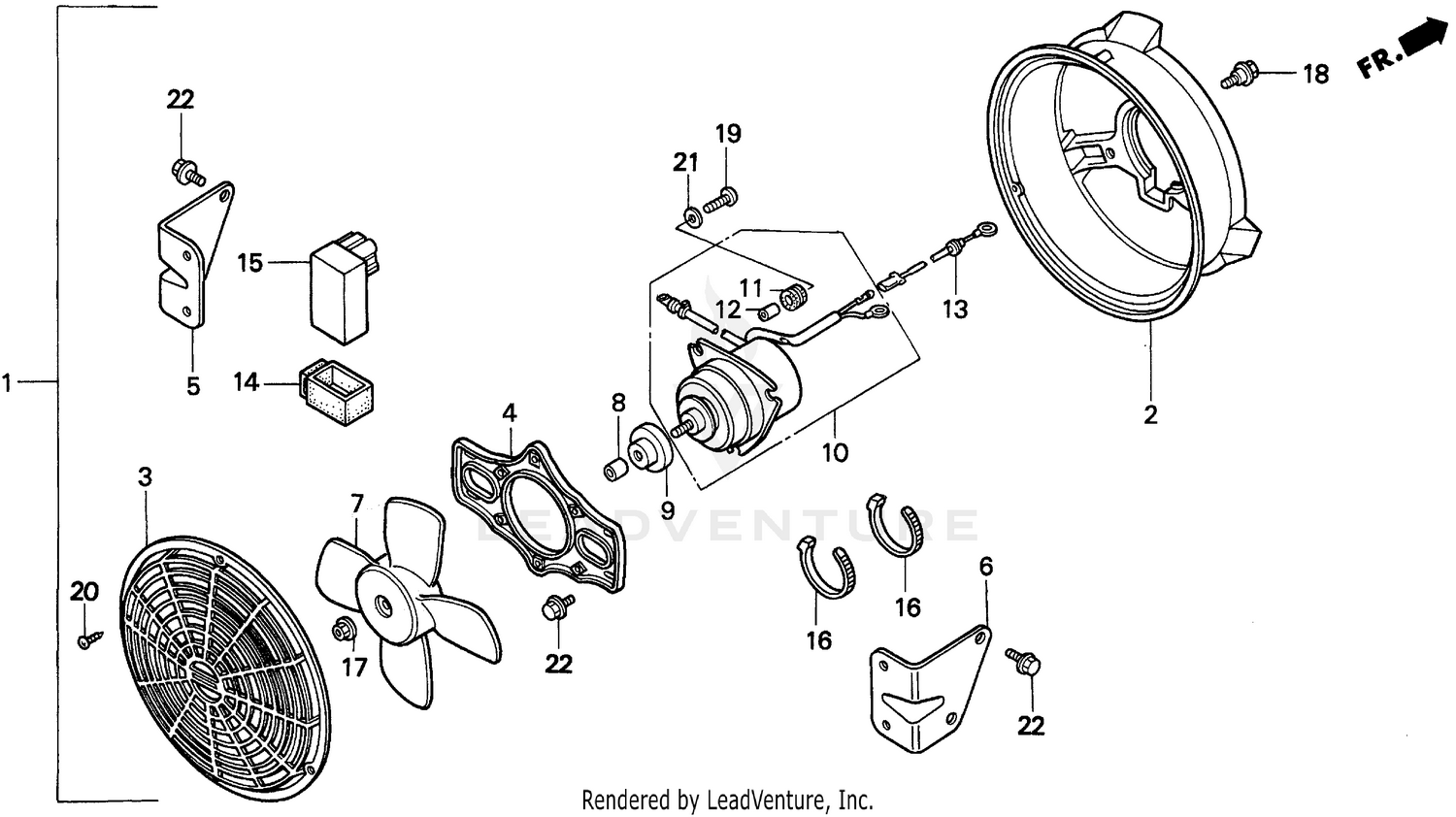

Cooling Fan Kit Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FAN KIT, COOLING (NOT AVAILABLE)
19000-HC5-306
|
$545.20 | ||
|
Unavailable |
|||
|
#2
SHROUD, COOLING FAN (NOT AVAILABLE)
19015-HC4-000
|
$95.55 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, SHROUD (NOT AVAILABLE)
19016-HC4-000
|
$63.41 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRACKET, COOLING FAN (NOT AVAILABLE)
19017-HC4-000
|
$36.78 | ||
|
Unavailable |
|||
|
#5
BRACKET, R. FAN (NOT AVAILABLE)
19018-HC5-970
|
$12.83 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, L. FAN (NOT AVAILABLE)
19019-HC5-970
|
$12.83 | ||
|
Available to order. Add to View Price |
|||
|
#7
FAN, COOLING (MITSUBA) (NOT AVAILABLE)
19020-HC4-003
|
$45.32 | ||
|
Unavailable |
|||
|
#8
SPACER, FAN
19021-HC4-000
|
$6.04 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUP, WASHER
19021-VM5-305
|
$23.18 | ||
|
Available to order. Add to View Price |
|||
|
#10
MOTOR ASSY., COOLING FAN (NOT AVAILABLE)
19030-HC5-850
Superseded by 19030-HC5-960
|
$292.18 | ||
|
Unavailable |
|||
|
#11
GROMMET
19031-HA7-671
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR
19032-HA7-671
|
$3.96 | ||
|
Available to order. Add to View Price |
|||
|
#13
SUB-WIRE, FAN (NOT AVAILABLE)
19035-HC5-810
|
$9.45 | ||
|
Unavailable |
|||
|
#14
CUSHION, FAN CONTROL UNIT (TATEISHI)
38401-HC4-004
|
$5.31 | ||
|
Unavailable |
|||
|
#15
CONTROL UNIT, FAN (OMRON) (NOT AVAILABLE)
38710-HC5-971
|
$153.35 | ||
|
Unavailable |
|||
|
#16
BAND, NYLON
83645-GG0-000
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, HEX. (5MM) (MITSUBA)
90041-PG6-004
|
$5.52 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6MM)
90116-ME9-000
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, PAN (4X20)
93500-04020-0A
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, TAPPING (5X16)
93901-25380
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLAIN (4MM)
94103-04800
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X12)
95701-06012-08
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
