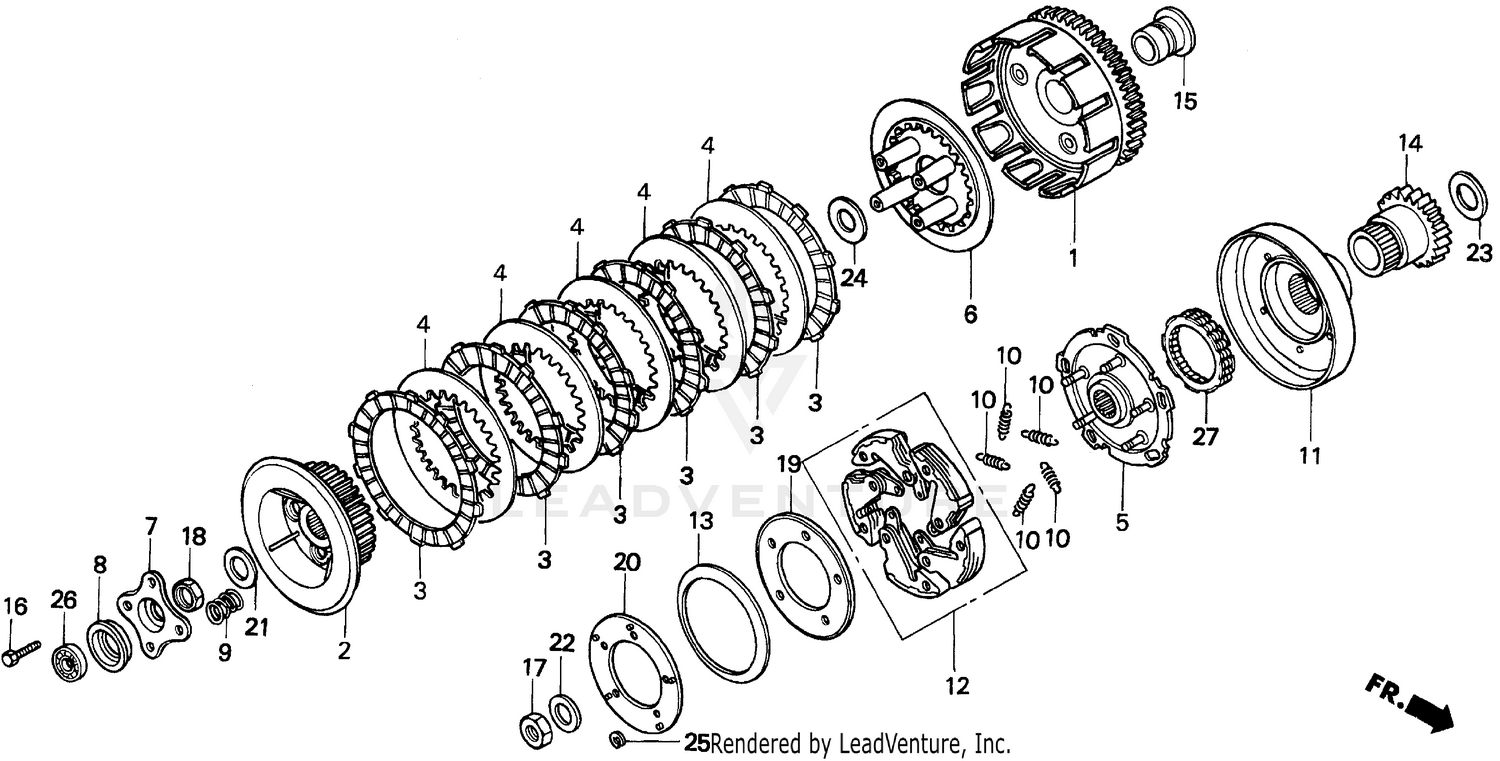

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLUTCH OUTER (NOT AVAILABLE)
22100-HC4-000
|
$343.59 | ||
|
Unavailable |
|||
|
#2
CENTER, CLUTCH
22120-HA7-670
|
$100.76 | ||
|
Unavailable |
|||
|
#3
DISK, CLUTCH FRICTION
22201-ML4-610
|
$19.87 | ||
|
Available to order. Add to View Price |
|||
|
#3
DISK, CLUTCH FRICTION
22201-377-000
Superseded by 22201-ML4-610
|
$19.87 | ||
|
Unavailable |
|||
|
#4
PLATE, CLUTCH
22321-KF0-000
Superseded by 22321-KF0-770
|
$18.07 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
PLATE, CLUTCH
22321-KF0-770
|
$18.07 | ||
|
Unavailable |
|||
|
#5
PLATE, DRIVE (NOT AVAILABLE)
22350-HM5-850
|
$64.45 | ||
|
Unavailable |
|||
|
#6
PLATE, CLUTCH PRESSURE
22351-HA7-670
|
$55.51 | ||
|
Unavailable |
|||
|
#7
PLATE, CLUTCH LIFTER (NOT AVAILABLE)
22366-HM7-000
|
$16.41 | ||
|
Unavailable |
|||
|
#8
COLLAR, CLUTCH LIFTER
22367-HM7-000
|
$23.57 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, CLUTCH
22401-HA7-670
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, CLUTCH DRIVE
22451-HC4-000
|
$6.62 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLUTCH OUTER (NOT AVAILABLE)
22500-HC4-000
|
$79.54 | ||
|
Available to order. Add to View Price |
|||
|
#12
WEIGHT SET, CLUTCH
22535-HM5-305
|
$189.63 | ||
|
Available to order. Add to View Price |
|||
|
#12
WEIGHT SET, CLUTCH
22535-HM5-630
Superseded by 22535-HM5-305
|
$189.63 | ||
|
Unavailable |
|||
|
#13
SPRING, CONE DISK
22714-HA0-010
|
$26.25 | ||
|
Available to order. Add to View Price |
|||
|
#14
GEAR, DRIVE (27T) (NOT AVAILABLE)
23120-HC4-750
|
$134.70 | ||
|
Unavailable |
|||
|
#15
BUSH (22MM)
23213-HA0-000
|
$25.07 | ||
|
Unavailable |
|||
|
#16
BOLT, HEX. (6X25)
90001-HM7-000
Superseded by 90001-HN0-670
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEX. (6X25)
90001-HN0-670
|
$2.56 | ||
|
Unavailable |
|||
|
#17
NUT, LOCK (20MM)
90235-HA0-680
|
$13.98 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, LOCK (18MM)
90236-HA0-000
|
$12.65 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER (64X122X1.0) (NOT AVAILABLE)
90406-HA7-671
|
$14.96 | ||
|
Unavailable |
|||
|
#20
WASHER (64X105X1.6) (NOT AVAILABLE)
90407-HA7-671
|
$20.76 | ||
|
Unavailable |
|||
|
#21
WASHER, LOCK
90432-KF0-000
|
$11.67 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, SPRING (20MM)
90432-426-000
|
$11.40 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, THRUST (27X40)
90457-HC4-000
|
$8.38 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, THRUST (22X45X0.8)
90458-KE8-000
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#25
CIRCLIP (7MM)
90605-166-720
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
BEARING, BALL (6903) (KOYO)
91008-HC4-004
|
$27.95 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLUTCH, ONE-WAY
91101-HA0-004
|
$140.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
