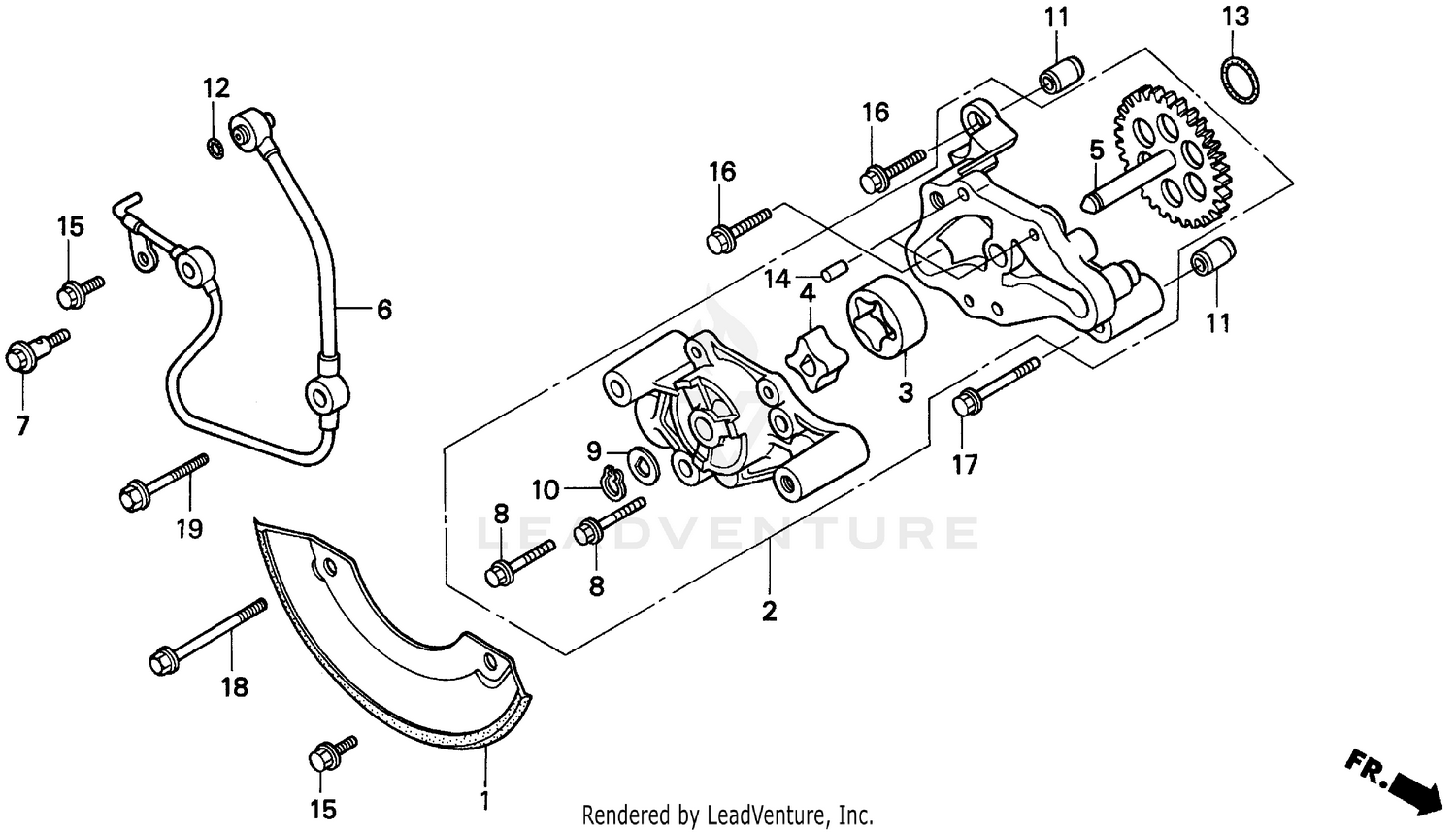

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PLATE, OIL SEPARATE (KOYO) (NOT AVAILABLE)
11140-HC4-005
|
$25.74 | ||
|
Unavailable |
|||
|
#2
PUMP ASSY., OIL (NOT AVAILABLE)
15100-HM5-670
|
$145.86 | ||
|
Unavailable |
|||
|
#3
ROTOR, OIL PUMP (OUTER)
15122-KF0-000
|
$37.09 | ||
|
Available to order. Add to View Price |
|||
|
#4
ROTOR, OIL PUMP (INNER)
15123-KF0-000
|
$28.73 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, OIL PUMP DRIVEN (30T) (NOT AVAILABLE)
15140-HA0-010
|
$88.91 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIPE, OIL (NOT AVAILABLE)
15510-HA7-670
|
$65.43 | ||
|
Unavailable |
|||
|
#7
BOLT, FLANGE (7X18.5)
15532-HA0-000
|
$10.63 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE (5X22)
90014-ZV1-000
Superseded by 90014-ZV1-010
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE (5X22)
90014-ZV1-010
|
$1.64 | ||
|
Unavailable |
|||
|
#9
WASHER (8MM)
90465-HA0-000
|
$3.80 | ||
|
Unavailable |
|||
|
#10
CIRCLIP (OUTER) (8MM)
90604-HA0-000
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, DOWEL (8X10)
91103-429-000
|
$2.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
O-RING (8.2X1.5)
91308-MC7-000
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING (17.0X2.5) (ARAI)
91333-KE5-003
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN C, DOWEL (4X6.5)
94303-04065
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X12)
95701-06012-00
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X22)
95701-06022-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X35)
95701-06035-00
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X45)
95701-06045-00
Superseded by 95701-06045-07
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X45)
95701-06045-07
|
$2.27 | ||
|
Unavailable |
|||
|
#19
BOLT, FLANGE (6X35)
95801-06035-08
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
