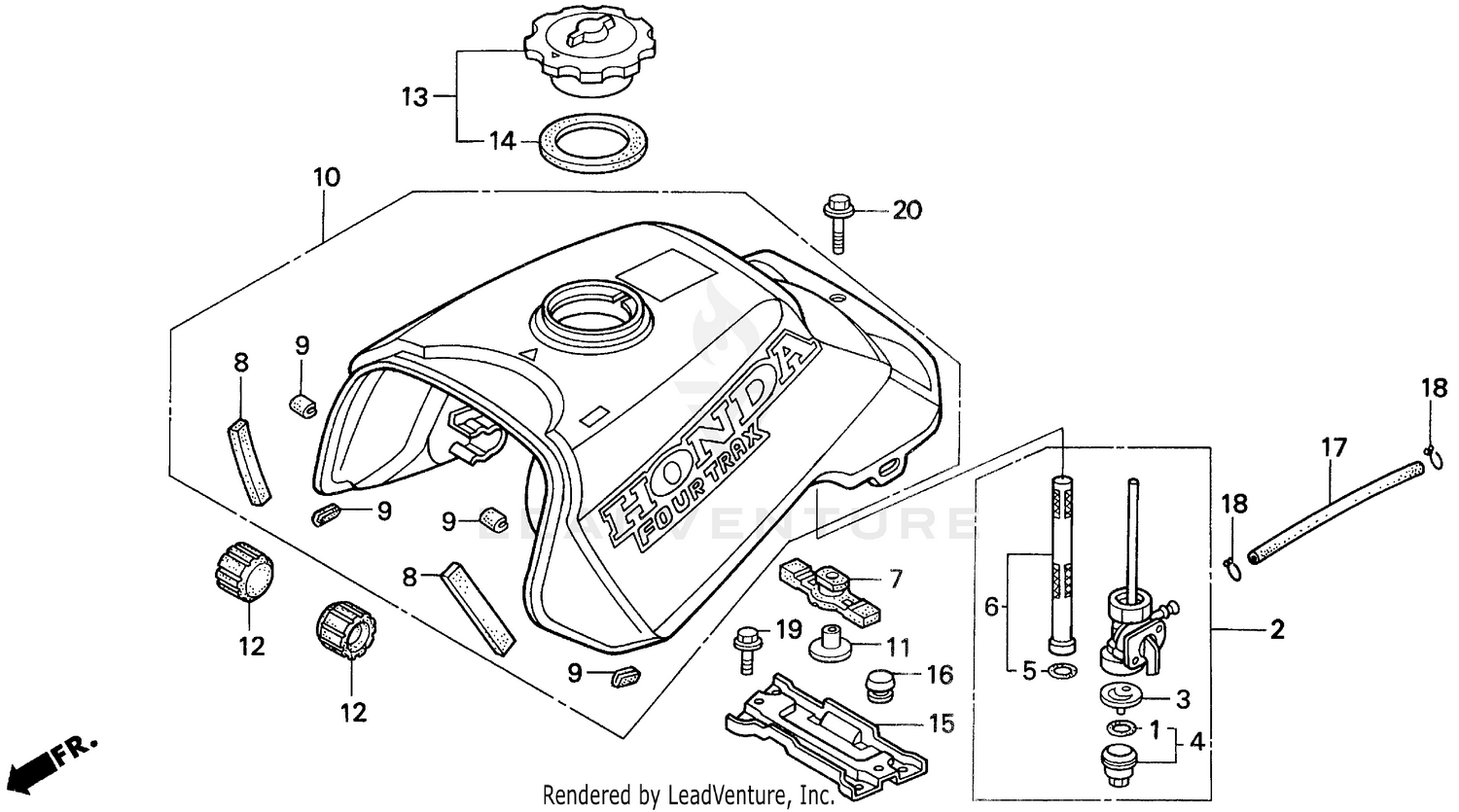

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET, FUEL STRAINER CUP
16173-001-004
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
PETCOCK ASSY.
16950-HC4-840
|
$93.75 | ||
|
Available to order. Add to View Price |
|||
|
#3
FILTER, CUP
16959-471-831
|
$11.33 | ||
|
Available to order. Add to View Price |
|||
|
#4
CUP SET, FUEL STRAINER
16953-GG2-731
|
$24.75 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING
16075-GHB-720
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING
16195-657-300
Superseded by 16075-GHB-720
|
$3.67 | ||
|
Unavailable |
|||
|
#5
O-RING
16958-MA1-731
Superseded by 16075-GHB-720
|
$3.67 | ||
|
Unavailable |
|||
|
#6
SCREEN SET, FUEL STRAINER
16952-HC4-840
Superseded by 16952-449-751
|
$39.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
SCREEN SET, FUEL STRAINER
16952-449-751
|
$39.64 | ||
|
Unavailable |
|||
|
#7
RUBBER, RR. FUEL TANK
17503-KG0-000
|
$23.47 | ||
|
Available to order. Add to View Price |
|||
|
#8
RUBBER, TANK SPACER
17511-HM5-670
|
$13.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
TRIM, FUEL TANK
17516-HC4-000
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
|
#10
TANK ASSY., FUEL *G152* (WL) (ADVENTURE GREEN) (NOT AVAILABLE)
17520-HM4-850ZA
Superseded by 17520-HM4-A10ZA
|
$807.70 | ||
|
Unavailable |
|||
|
#10
TANK ASSY., FUEL *R109* (WL) (PASSION RED) (NOT AVAILABLE)
17520-HM4-850ZC
|
$854.11 | ||
|
Unavailable |
|||
|
#10
TANK ASSY., FUEL *YR176* (WL) (HARVEST BEIGE) (NOT AVAILABLE)
17520-HM4-850ZD
Superseded by 17520-HM4-A10ZD
|
$807.75 | ||
|
Unavailable |
|||
|
#11
COLLAR, FUEL TANK MOUNTING
17525-KC5-000
|
$8.44 | ||
|
Available to order. Add to View Price |
|||
|
#12
CUSHION, FUEL TANK
17611-HM5-730
|
$30.05 | ||
|
Available to order. Add to View Price |
|||
|
#13
FUEL FILL CAP (TOYOSHA)
17620-HC3-505
|
$55.54 | ||
|
Unavailable |
|||
|
#13
FUEL FILL CAP (TOYOSHA)
17620-HC3-771
Superseded by 17620-HC3-505
|
$55.54 | ||
|
Unavailable |
|||
|
#14
GASKET, FUEL FILLER CAP
17632-435-730
|
$11.45 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE, FR. CROSS
50189-HM5-670
|
$37.57 | ||
|
Available to order. Add to View Price |
|||
|
#16
RUBBER B, STOPPER
50354-HM5-730
|
$17.18 | ||
|
Available to order. Add to View Price |
|||
|
#17
BULK HOSE, FUEL (7.5X8000) (7.5X210)
95001-75008-60M
|
$125.78 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP, TUBE (B12)
95002-02120
|
$2.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOLT, FLANGE (8X12)
95701-08012-08
|
$1.83 | ||
|
Unavailable |
|||
|
#20
BOLT, FLANGE (8X30)
95701-08030-08
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
