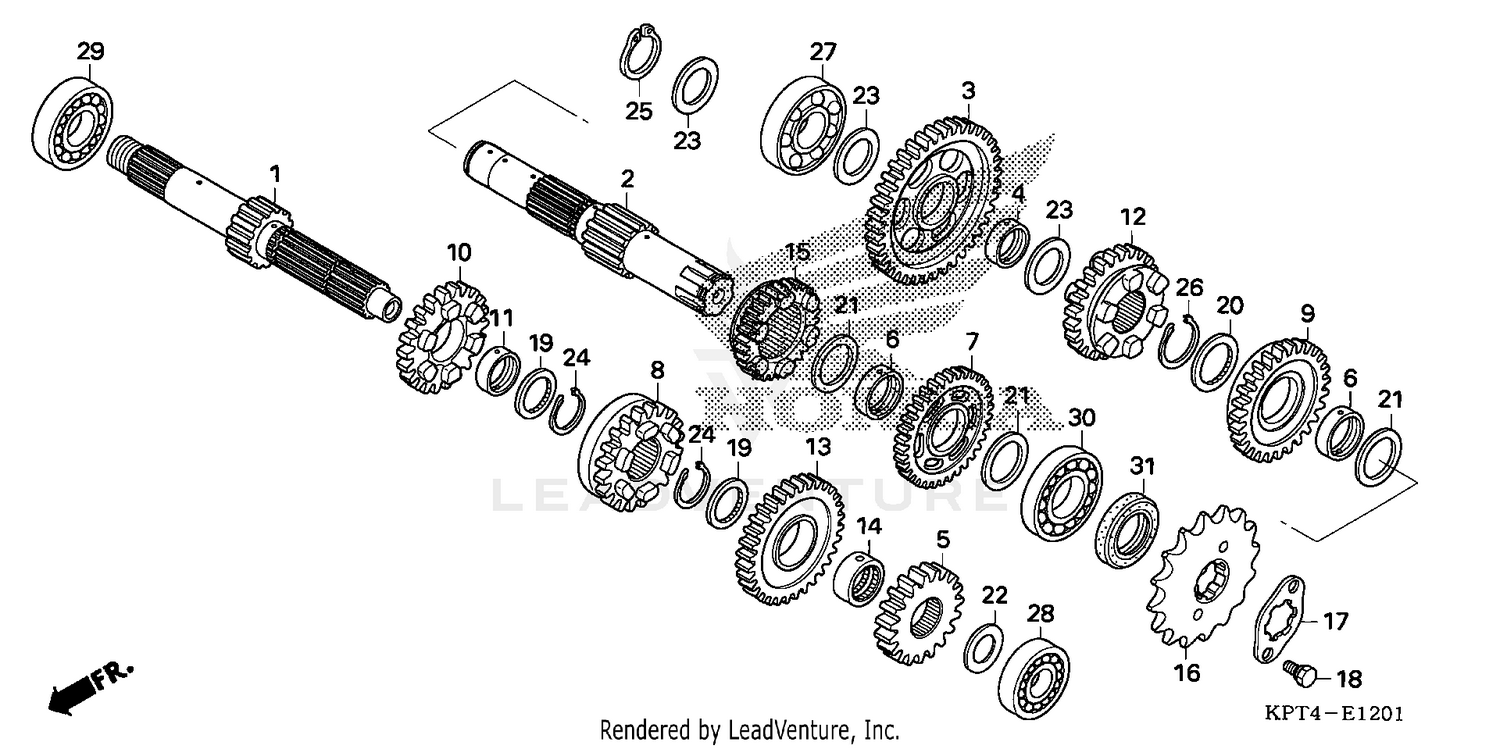

Transmission (2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAINSHAFT, TRANSMISSION (14T)
23210-KRM-841
|
$72.98 | ||
|
Available to order. Add to View Price |
|||
|
#2
COUNTERSHAFT
23220-KPT-A00
|
$117.18 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, COUNTERSHAFT FIRST (39T)
23421-KRM-840
|
$35.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
BUSH (17X20.5X8.0)
23427-KRM-840
|
$12.78 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, MAINSHAFT SECOND (16T)
23431-KPT-A00
|
$9.19 | ||
|
Available to order. Add to View Price |
|||
|
#6
BUSH (20MM)
23432-KRM-840
|
$31.87 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR, COUNTERSHAFT SECOND (30T)
23441-KPT-A00
|
$8.24 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, MAINSHAFT THIRD (22T)
23451-KPT-A01
|
$41.96 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, COUNTERSHAFT THIRD (31T)
23461-KPT-A01
|
$20.15 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, MAINSHAFT FOURTH (25T)
23471-KPT-A00
|
$27.98 | ||
|
Available to order. Add to View Price |
|||
|
#11
BUSH (17MM)
23472-KRM-840
|
$11.67 | ||
|
Available to order. Add to View Price |
|||
|
#12
GEAR, COUNTERSHAFT FOURTH (28T)
23481-KPT-A00
|
$32.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR, MAINSHAFT FIFTH (32T)
23491-KRM-870
|
$45.02 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR, SPLINE (17X20X11)
23492-KRM-840
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, COUNTERSHAFT FIFTH (30T)
23501-KRM-842
|
$24.07 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRKT,DRIVE 13T
23801-KPS-900
Superseded by 23801-KPS-305
|
$29.95 | ||
|
Unavailable |
|||
|
#17
PLATE A2, FIXING
23811-KPS-900
Superseded by 23811-KR3-600
|
$5.75 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLATE A2, FIXING
23811-KR3-600
|
$5.75 | ||
|
Unavailable |
|||
|
#18
BOLT, HEX. (6X10)
90011-KPT-A00
|
$3.07 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SPLINE (17X23X1.6)
90452-KRM-840
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, SPLINE (20MM)
90453-KRM-840
|
$1.44 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER B, THRUST (20MM)
90454-KPS-900
|
$0.91 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, THRUST (12MM)
90456-KRM-840
|
$0.47 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, THRUST (17MM)
90452-GB4-770
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#24
CIRCLIP (17MM)
90601-KRM-840
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#25
CIRCLIP (OUTER) (17MM)
90602-KRM-840
|
$1.27 | ||
|
Available to order. Add to View Price |
|||
|
#26
SET-RING (20MM)
90605-KPS-900
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#27
BEARING (17X42X12)
91003-KRM-841
Superseded by 91003-KRE-G01
|
$27.24 | ||
|
Unavailable |
|||
|
#28
BEARING, RADIAL BALL (6201U)
91014-KRM-840
|
$13.64 | ||
|
Available to order. Add to View Price |
|||
|
#29
BEARING, RADIAL BALL (6203) (C3) (FUJIKOSHI)
91015-KRM-840
Superseded by 91015-KRM-841
|
$29.95 | ||
|
Available to order. Add to View Price |
|||
|
#30
BEARING, RADIAL BALL (6204)
91016-KPS-900
|
$24.45 | ||
|
Available to order. Add to View Price |
|||
|
#31
OIL SEAL (20X34X7)
91216-KRM-841
Superseded by 91216-KGH-901
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
