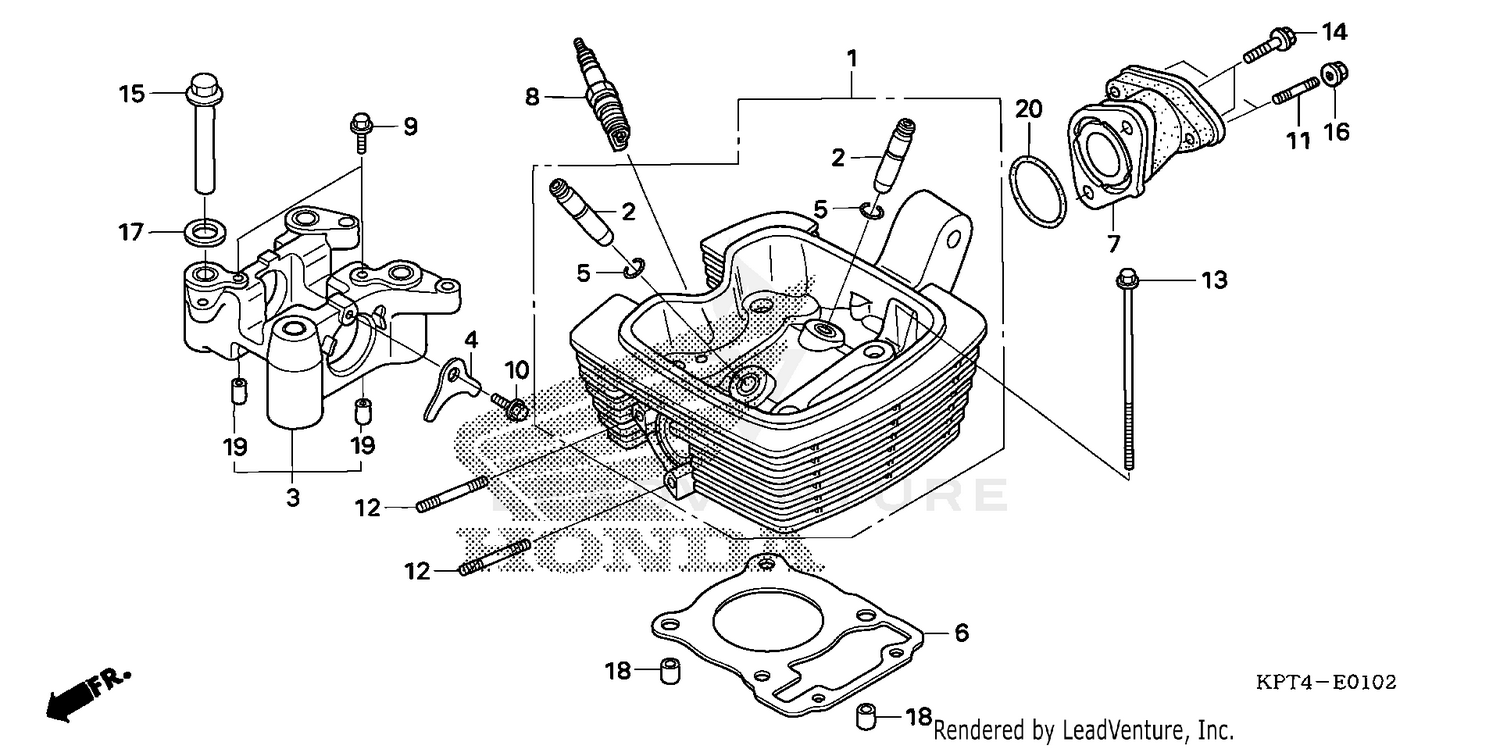

Cylinder Head (3) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD
12200-KPT-A00
|
$181.05 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, VALVE (OVER SIZE)
12204-KRM-305
|
$15.05 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOLDER, CAMSHAFT
12210-KRM-840
Superseded by 12210-K13-910
|
$44.04 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOLDER, CAMSHAFT
12210-K13-910
|
$44.04 | ||
|
Unavailable |
|||
|
#4
PLATE, STOPPER
12212-KRM-840
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLIP, VALVE GUIDE
12213-KRM-840
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, CYLINDER HEAD
12251-KRM-B41
|
$7.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
INSULATOR, CARBURETOR
16210-KPT-A00
|
$59.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPARK PLUG (CPR8EA-9) (NGK)
31916-KRM-841
|
$7.10 | ||
|
Unavailable |
|||
|
#8
SPARK PLUG (CPR9EA-9) (NGK) (NA USE ALT:31916-KRM-841)
31926-KRM-841
|
$10.05 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (5X14)
90002-KRM-840
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (6X14)
90032-GHR-650
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, STUD (6X16)
90033-KPT-900
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, STUD (8X22)
90035-KRM-840
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X105)
90036-GHR-890
Superseded by 90036-KVS-900
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X105)
90036-KVS-900
|
$4.31 | ||
|
Unavailable |
|||
|
#14
BOLT, FLANGE SOCKET (6X22)
90091-KRM-840
|
$0.84 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, CYLINDER HEAD
90306-KRM-840
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, FLANGE (6MM)
90208-GHR-630
Superseded by 94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
Unavailable |
|||
|
#17
WASHER, PLAIN (12MM)
90404-KPT-A00
|
$1.56 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN, DOWEL (10X12)
90703-KRM-840
Superseded by 94301-10120
|
$2.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
PIN, DOWEL (10X12)
94301-10120
|
$2.58 | ||
|
Unavailable |
|||
|
#19
PIN, DOWEL (6X10)
90704-KRM-840
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN, DOWEL (6X10)
94303-06100
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING (33.5X3.0)
91304-KRM-840
|
$3.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
