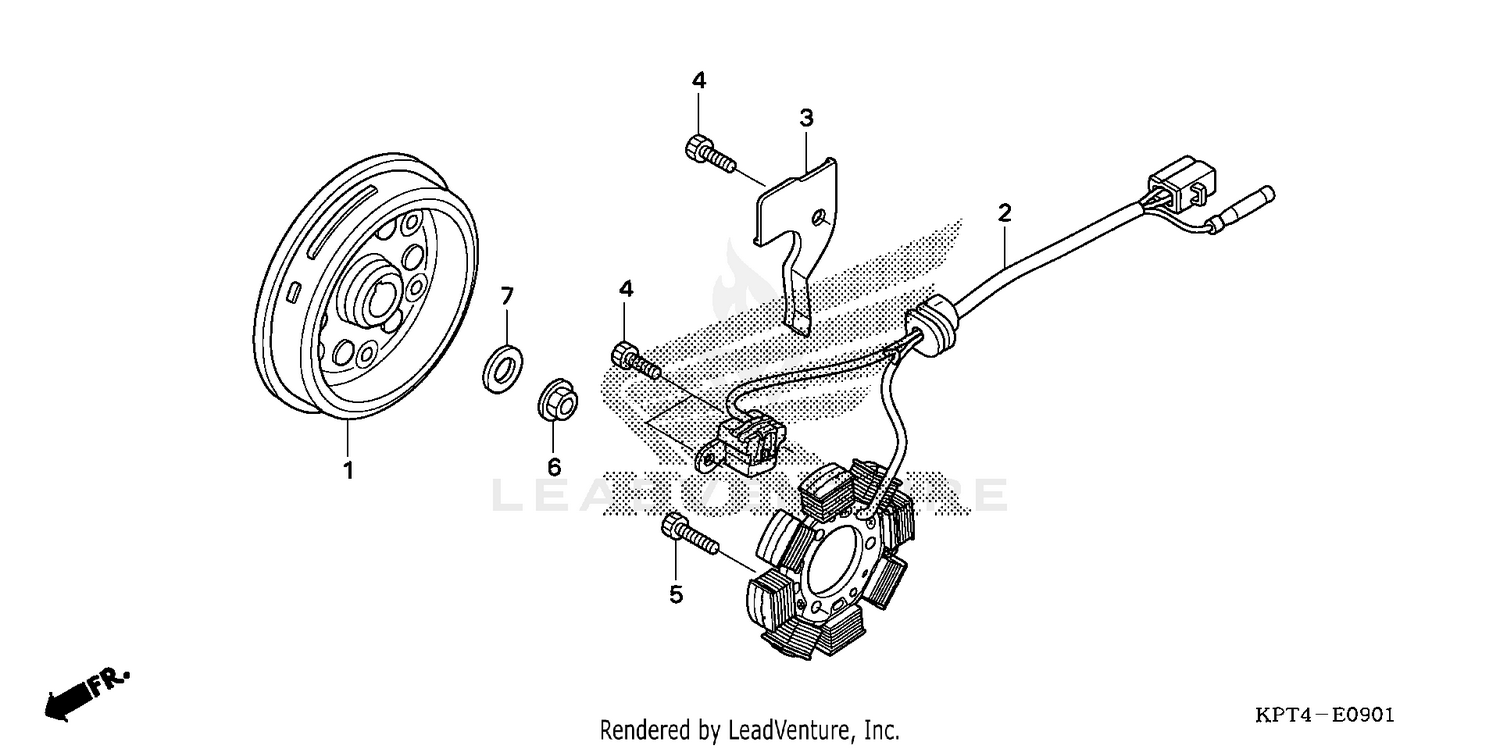

Alternator (2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FLYWHEEL
31110-KPT-A01
|
$210.31 | ||
|
Available to order. Add to View Price |
|||
|
#2
STATOR
31120-KPT-A01
|
$174.40 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP, ALTERNATOR WIRE
32111-KSP-910
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, SOCKET (6X16)
90009-KRM-840
|
$9.58 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, SOCKET (6X22)
90010-KRM-840
Superseded by 96600-06022-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, FLANGE (14MM)
90201-KRM-840
|
$1.76 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER (14.1X29X2.8)
90501-KPT-A00
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
