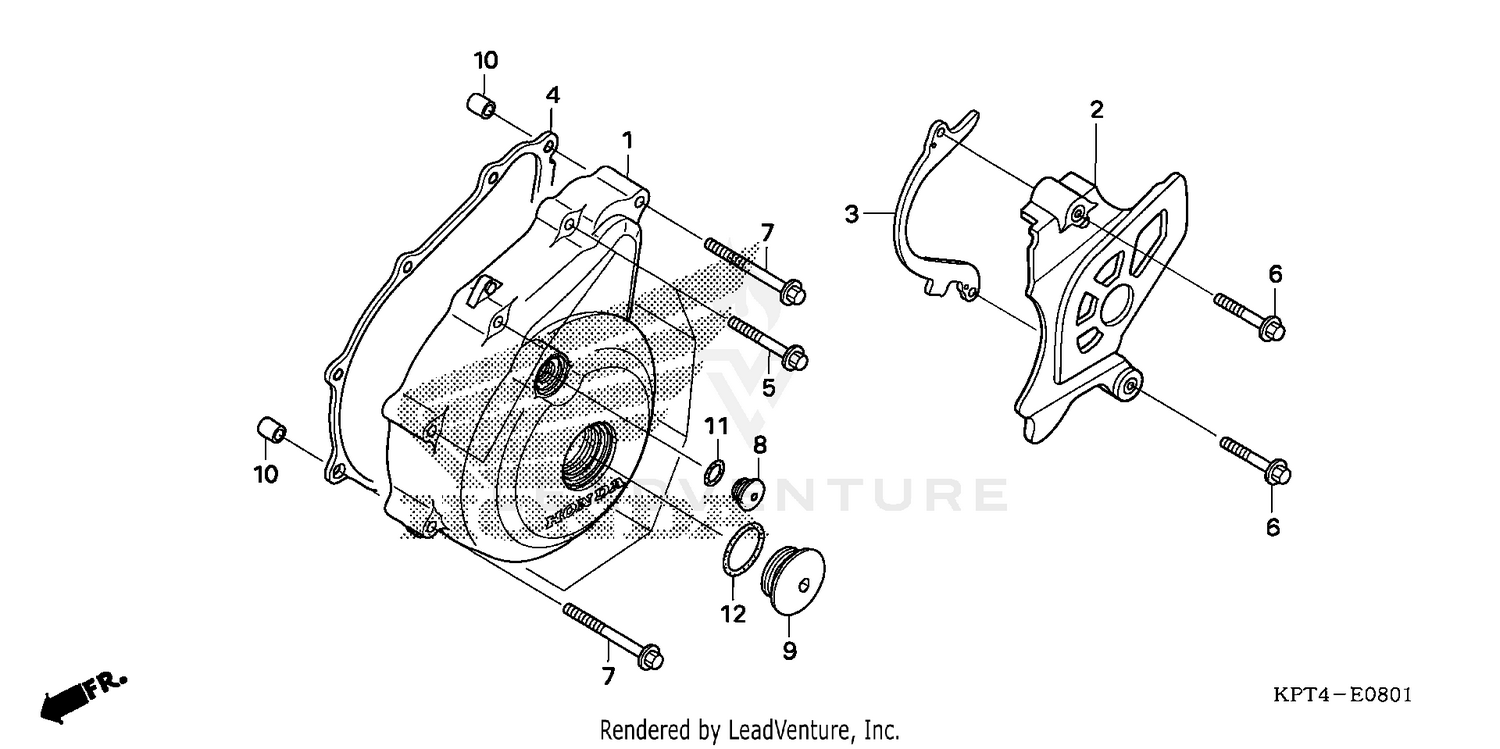

Left Crankcase Cover (2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, L. CRANKCASE
11341-KRM-840
|
$64.55 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, L. RR.
11360-KPT-A00
|
$17.13 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, DRIVE CHAIN
11365-KPT-A00
|
$9.76 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, L COVER
11395-KRM-840
Superseded by 11395-KYA-C00
|
$12.16 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE (6X35)
90040-GHR-740
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE (6X40)
90040-GHR-760
|
$1.71 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE (6X45)
90040-GHR-770
|
$4.73 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP (14MM)
90084-KPS-900
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP (32MM)
90087-KRM-840
|
$24.71 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, DOWEL (8X14)
90702-KRM-840
|
$0.76 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING (13.8X2.5)
91303-KRM-840
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING (31.7X2.4)
91305-KRM-840
|
$1.58 | ||
|
Available to order. Add to View Price |
|||
