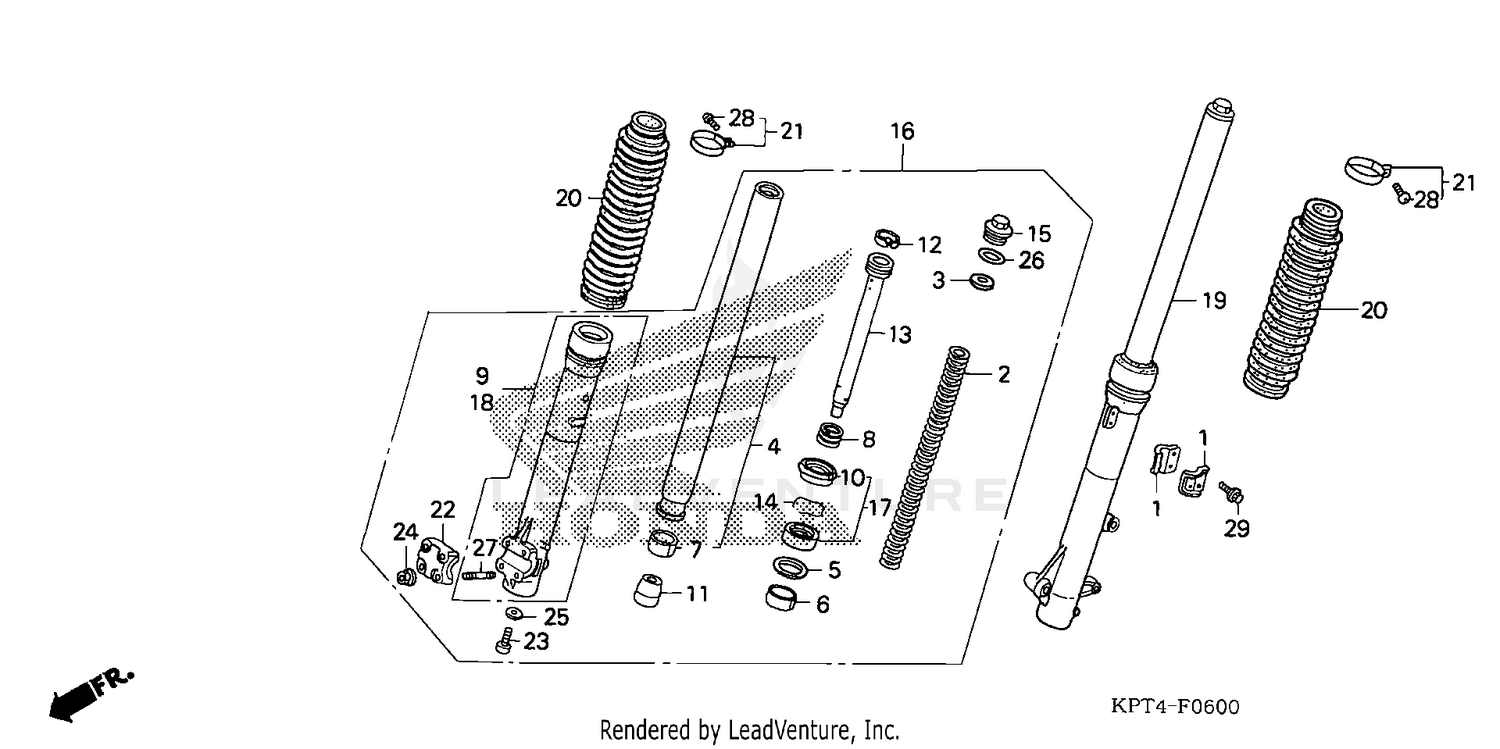

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLAMP A, BRAKE HOSE
45461-KPS-900
|
$9.64 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING, FR. FORK
51401-KPT-901
|
$15.07 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIPE, FR. FORK
51410-KPT-901
|
$128.93 | ||
|
Available to order. Add to View Price |
|||
|
#5
RING, BACK-UP
51412-422-003
|
$9.40 | ||
|
Available to order. Add to View Price |
|||
|
#6
BUSH, GUIDE
51414-469-003
Superseded by 51414-MBV-711
|
$23.78 | ||
|
Available to order. Add to View Price |
|||
|
#7
BUSH, SLIDER
51415-KL4-951
Superseded by 51415-MBV-711
|
$21.53 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, FR. REBOUND
51416-GC4-731
|
$9.31 | ||
|
Available to order. Add to View Price |
|||
|
#9
CASE SET, R. (LOWER)
51430-KPT-A01
|
$117.71 | ||
|
Available to order. Add to View Price |
|||
|
#10
DUST SEAL
51425-KL4-951
|
$10.56 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIECE, OIL LOCK
51432-KB7-003
|
$29.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
RING, PISTON
51437-461-003
|
$11.62 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIPE, SEAT
51440-KPT-A01
|
$22.76 | ||
|
Available to order. Add to View Price |
|||
|
#14
RING, OIL SEAL STOPPER
51447-KL4-951
|
$5.05 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FR. FORK
51455-KE1-901
|
$51.09 | ||
|
Available to order. Add to View Price |
|||
|
#16
FORK SET, R. FR. (COO)
51480-KPT-A01
Superseded by 51480-KPT-305
|
$490.00 | ||
|
Available to order. Add to View Price |
|||
|
#16
FORK SET, R. FR. (COO)
51480-KPT-305
|
$490.00 | ||
|
Unavailable |
|||
|
#17
SEAL SET, FR. FORK
51490-KL4-951
|
$32.67 | ||
|
Available to order. Add to View Price |
|||
|
#18
CASE SET, L. (LOWER)
51530-KPT-A01
|
$113.04 | ||
|
Available to order. Add to View Price |
|||
|
#19
FORK SET, L. FR. (COO)
51580-KPT-A01
Superseded by 51580-KPT-305
|
$490.00 | ||
|
Available to order. Add to View Price |
|||
|
#19
FORK SET, L. FR. (COO)
51580-KPT-305
|
$490.00 | ||
|
Unavailable |
|||
|
#20
BOOT, FR. FORK *NH1* (BLACK)
51611-KL4-952ZK
|
$45.69 | ||
|
Available to order. Add to View Price |
|||
|
#21
BAND, FR. FORK BOOT
51612-428-900
|
$13.20 | ||
|
Available to order. Add to View Price |
|||
|
#21
BAND, FR. FORK BOOT
51612-473-000
Superseded by 51612-428-900
|
$13.20 | ||
|
Unavailable |
|||
|
#22
HOLDER, AXLE
51634-MA0-003
|
$45.40 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, SOCKET (8MM) (SHOWA)
90116-KV3-701
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, U (6MM) (FUSE RASHI)
90301-473-003
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#25
GASKET (SHOWA)
90544-439-930
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING (25.7X2.8) (SHOWA)
91356-428-003
|
$4.53 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, STUD (6X25) (R. SIDE ONLY)
92900-06025-0E
|
$1.18 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW, PAN (3X20)
93500-03020-0G
|
$0.85 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE (6X14)
90040-GHR-650
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
