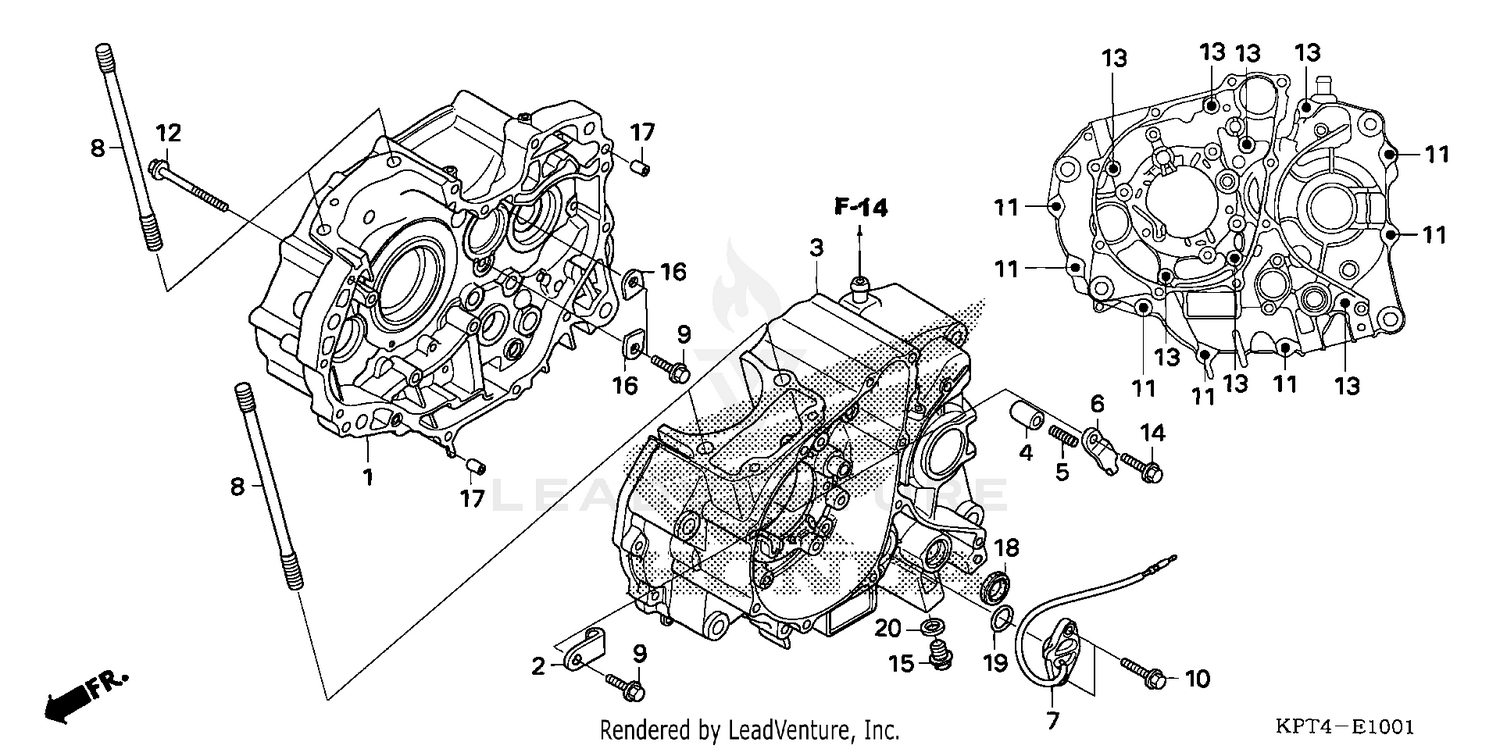

Crankcase (2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE, R.
11100-KPT-A00
Superseded by 11100-KRE-B00
|
$108.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE, BEARING SETTING
11108-KRM-840
|
$14.40 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE, L. BEARING SETTING
11108-KTT-900
|
$20.17 | ||
|
Available to order. Add to View Price |
|||
|
#3
CRANKCASE, L.
11200-KPT-A00
Superseded by 11200-KRE-B00
|
$113.67 | ||
|
Available to order. Add to View Price |
|||
|
#3
CRANKCASE, L.
11200-KRE-B00
|
$113.67 | ||
|
Unavailable |
|||
|
#4
PLUG, BEARING PUSH
11215-KRM-840
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, BEARING PUSH
11216-KRM-840
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, BEARING PUSH
11217-KRM-840
|
$13.13 | ||
|
Available to order. Add to View Price |
|||
|
#7
CONTACT ASSY., NEUTRAL SWITCH
35759-KPT-A01
|
$24.36 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, CYLINDER STUD (8X140)
90031-KRM-840
|
$4.11 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (6X16)
90032-GHR-660
|
$1.58 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (6X20)
90032-GHR-680
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X40)
90032-GHR-760
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X45)
90032-GHR-770
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X70)
90032-GHR-820
|
$15.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X18)
90040-GHR-670
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, DRAIN PLUG (12MM)
90131-KRM-840
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLATE, BEARING HOLDER
90441-KRM-840
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN, DOWEL (8X14)
90702-KRM-840
|
$0.76 | ||
|
Available to order. Add to View Price |
|||
|
#18
OIL SEAL (14X22X5) (ARAI)
91203-KRM-841
Superseded by 91203-KSP-911
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING (19.4X2.3)
91305-KPH-900
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, DRAIN PLUG (12MM)
94109-12000
|
$1.28 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
