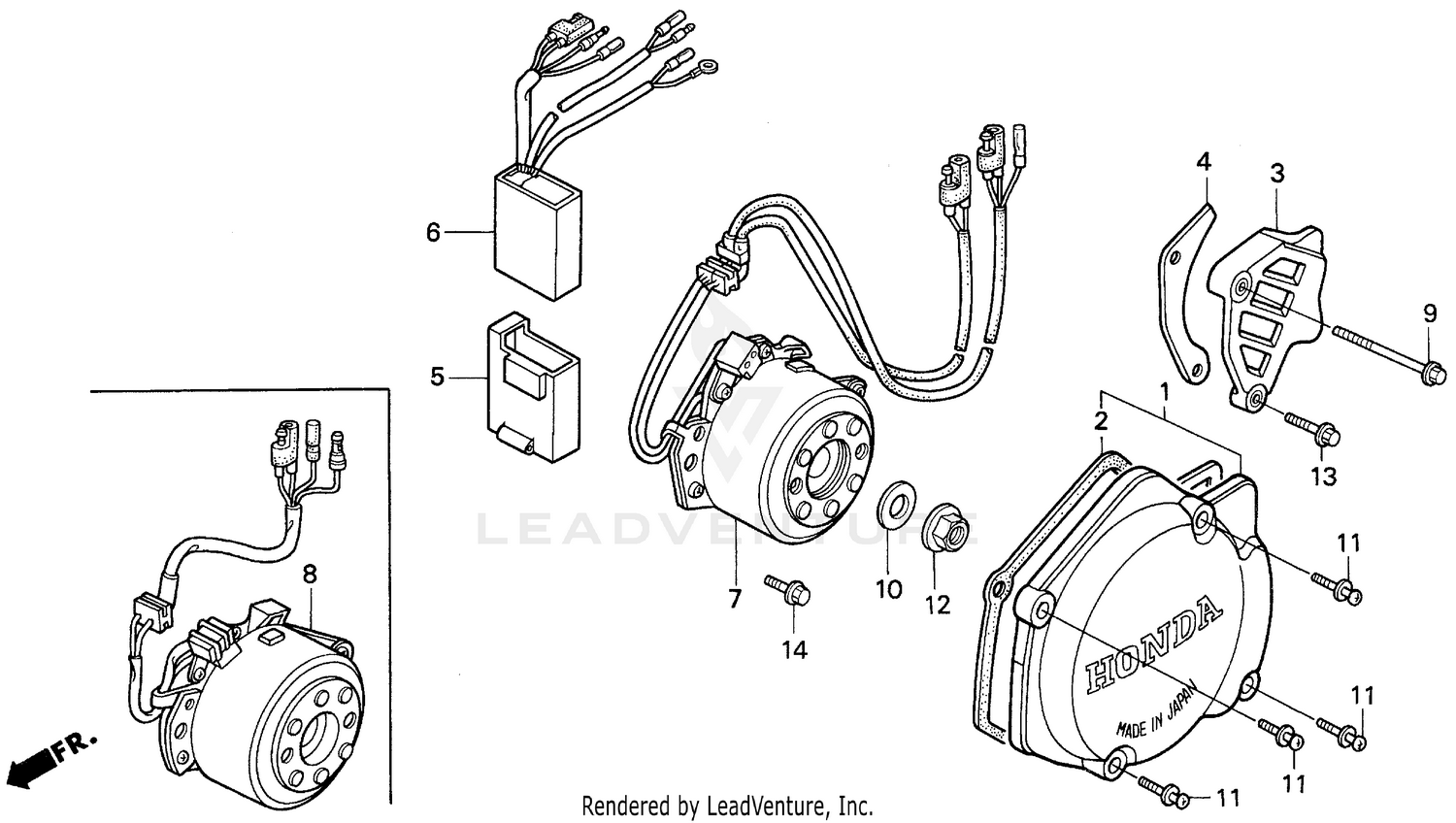

Left Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER ASSY., L. CRANKCASE
11350-KS6-701
|
$43.92 | ||
|
Unavailable |
|||
|
#2
SEAL, L. COVER
11352-KS6-700
|
$14.91 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, DRIVE SPROCKET
23810-KS6-701
|
$24.90 | ||
|
Unavailable |
|||
|
#4
GUIDE, DRIVE CHAIN
23812-KS6-700
|
$20.57 | ||
|
Unavailable |
|||
|
#5
SUSPENSION, IGNITION CONTROL MODULE
30401-ML3-681
Superseded by 30401-KZ3-861
|
$12.83 | ||
|
Unavailable |
|||
|
#5
SUSPENSION, IGNITION CONTROL MODULE
30401-KZ3-861
|
$12.83 | ||
|
Unavailable |
|||
|
#6
MODULE, IGNITION CONTROL (CDI) (NOT AVAILABLE)
30410-KZ4-701
Superseded by 30410-KZ4-731
|
$261.40 | ||
|
Available to order. Add to View Price |
|||
|
#7
ALTERNATOR ASSY., FLYWHEEL TYPE
31100-KZ4-701
Superseded by 31100-KZ4-731
|
$665.91 | ||
|
Unavailable |
|||
|
#7
ALTERNATOR ASSY., FLYWHEEL TYPE
31100-KZ4-731
|
$665.91 | ||
|
Unavailable |
|||
|
#9
BOLT, FLANGE (6X120)
90053-KZ4-000
|
$4.35 | ||
|
Unavailable |
|||
|
#10
WASHER, PLAIN (12MM)
90437-611-000
|
$5.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
SCREW-WASHER (6X28)
93891-06028-07
|
$1.22 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, FLANGE (12MM)
94050-12000
|
$1.18 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X32)
96001-06032-07
|
$1.76 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X18)
96300-06018-00
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
