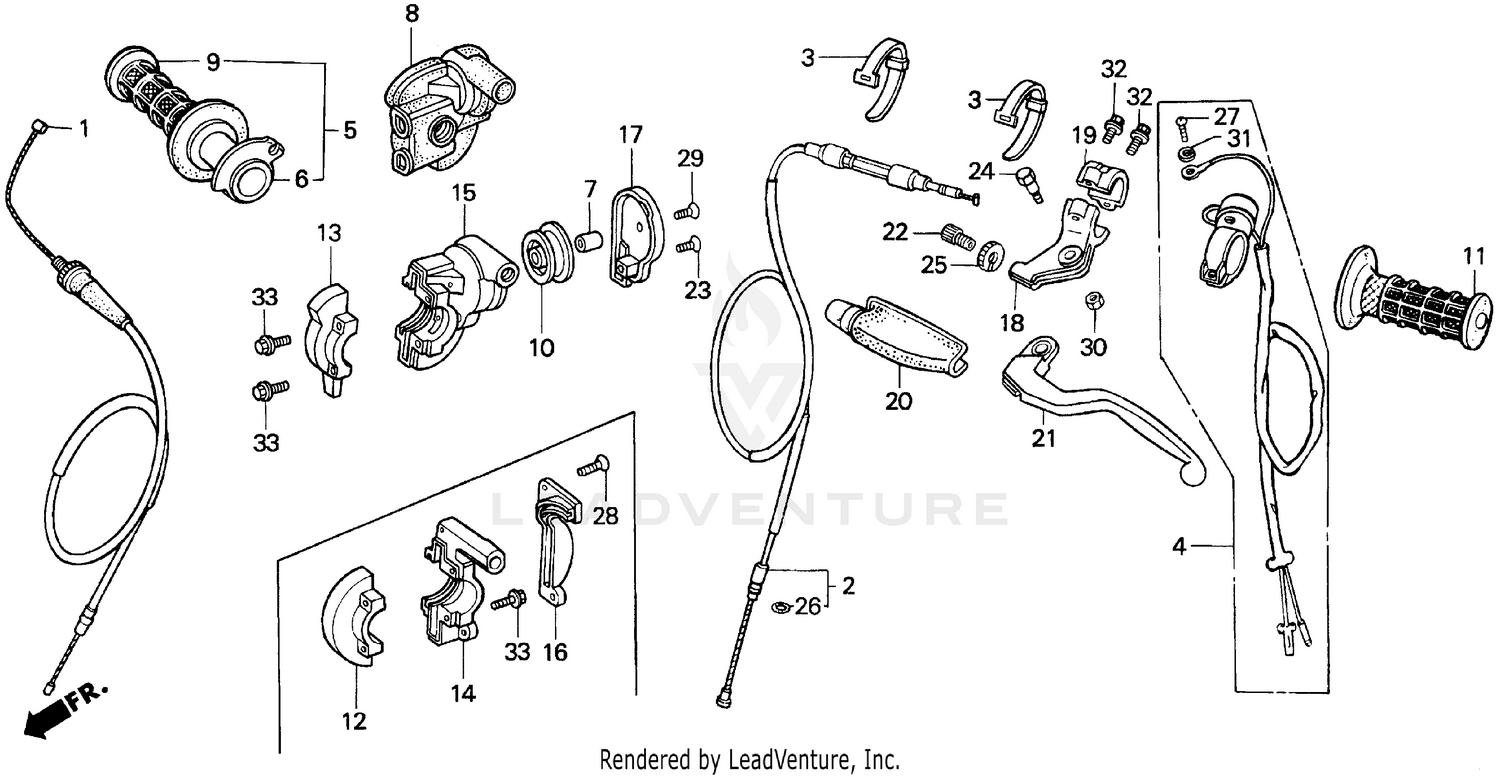

Handle Switch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CABLE, THROTTLE
17910-KZ4-700
Superseded by 17910-KZ4-730
|
$20.62 | ||
|
Unavailable |
|||
|
#1
CABLE, THROTTLE
17910-KZ4-730
|
$20.62 | ||
|
Unavailable |
|||
|
#2
CABLE, CLUTCH
22870-KS6-700
Superseded by 22870-KZ4-P00
|
$25.24 | ||
|
Unavailable |
|||
|
#2
CABLE, CLUTCH
22870-KZ4-P00
|
$25.24 | ||
|
Unavailable |
|||
|
#3
BAND B1, WIRE
32161-404-000
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#4
SWITCH ASSY., STOP
35130-GM7-700
Superseded by 35130-KZ3-860
|
$53.67 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIPE, THROTTLE GRIP
53141-KZ4-000
|
$13.64 | ||
|
Available to order. Add to View Price |
|||
|
#9
GRIP, R. HANDLE
53165-430-000
Superseded by 53165-GFW-305
|
$15.29 | ||
|
Available to order. Add to View Price |
|||
|
#11
GRIP, L. HANDLEBAR
53166-430-000
Superseded by 53166-459-910
|
$11.44 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOUSING A, GRIP
53167-KS6-000
|
$33.79 | ||
|
Unavailable |
|||
|
#14
HOUSING B, GRIP
53168-KS6-000
|
$30.96 | ||
|
Unavailable |
|||
|
#16
COVER B, HOUSING
53169-KZ4-000
Superseded by 53169-ML3-790
|
$12.55 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER B, HOUSING
53169-ML3-790
|
$12.55 | ||
|
Unavailable |
|||
|
#18
BRACKET, L. HANDLEBAR
53172-KA3-730
|
$46.98 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOLDER, L. LEVER BRACKET
53174-KA3-730
|
$28.53 | ||
|
Available to order. Add to View Price |
|||
|
#20
COVER, L. HANDLE LEVER
53177-430-000
|
$13.33 | ||
|
Available to order. Add to View Price |
|||
|
#21
CONTROL LEVER, L. HANDLEBAR
53178-KA3-840
|
$36.13 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, CLUTCH WIRE ADJUSTING
53192-KA3-700
|
$17.04 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, HANDLE LEVER PIVOT
90114-428-870
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, FIXING
90321-KA4-700
Superseded by 90321-KF0-000
|
$11.82 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, FIXING
90321-KF0-000
|
$11.82 | ||
|
Unavailable |
|||
|
#26
O-RING (5.8X1.9)
91357-KA4-004
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, PAN (4X12)
93500-04012-1A
Superseded by 93500-04012-0A
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, PAN (4X12)
93500-04012-0A
|
$0.87 | ||
|
Unavailable |
|||
|
#28
SCREW, OVAL (4X10)
93700-04010-0G
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT, HEX. (6MM)
94001-06000-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
NUT, HEX. (6MM)
94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#31
WASHER, SPRING (4MM)
94111-04000
|
$1.12 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE (6X20)
96001-06020-07
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE (6X22)
96001-06022-07
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
