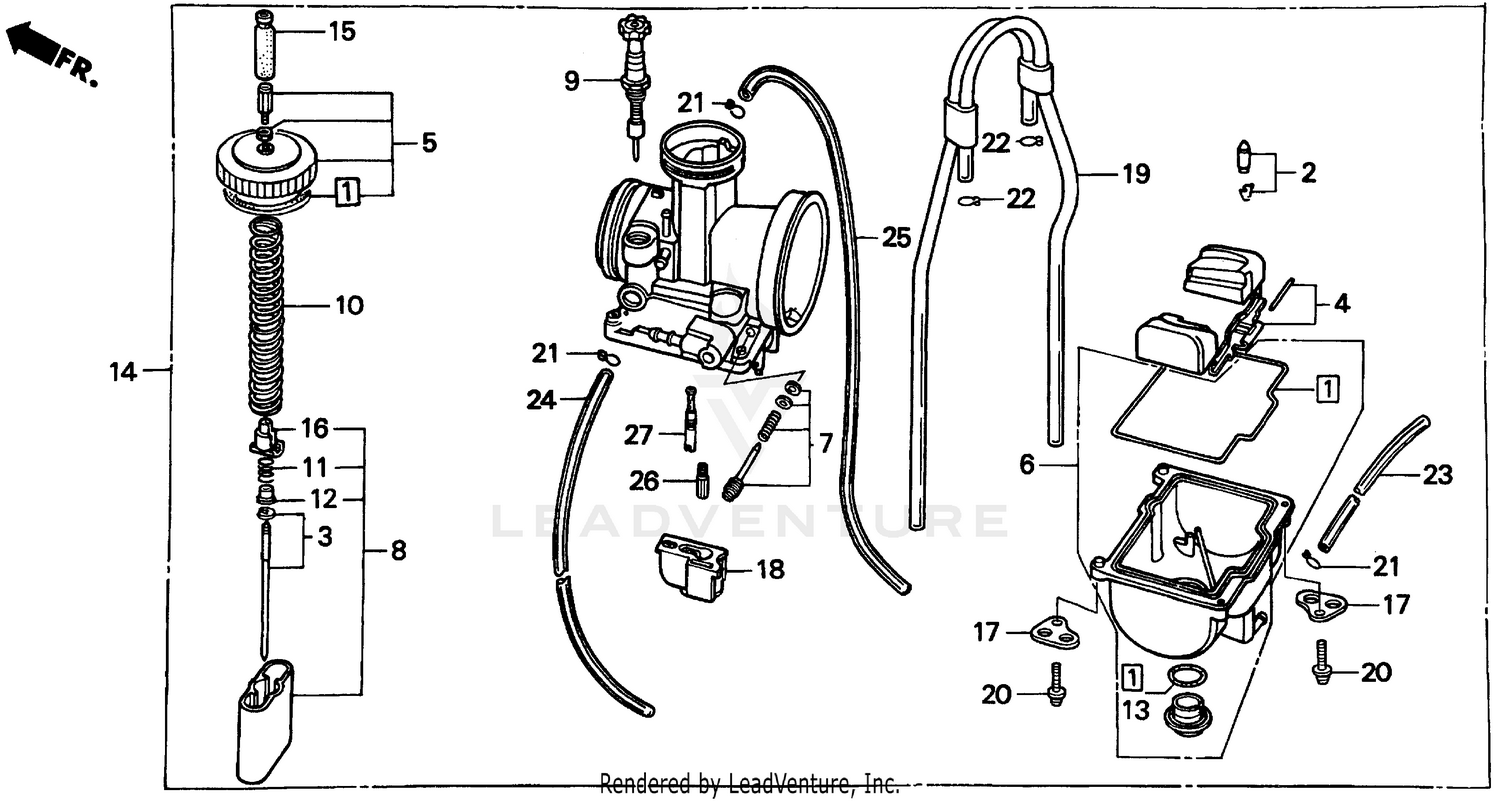

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET SET
16010-KA3-004
|
$58.62 | ||
|
Available to order. Add to View Price |
|||
|
#2
VALVE SET, FLOAT
16011-KA3-741
|
$54.85 | ||
|
Available to order. Add to View Price |
|||
|
#3
NEEDLE SET, JET (R1469N)
16012-KS6-831
|
$18.38 | ||
|
Available to order. Add to View Price |
|||
|
#4
FLOAT SET
16013-KA3-741
Superseded by 16013-HA2-671
|
$59.00 | ||
|
Available to order. Add to View Price |
|||
|
#5
TOP SET
16014-KA3-761
|
$40.55 | ||
|
Unavailable |
|||
|
#6
CHAMBER SET, FLOAT
16015-VM0-004
|
$70.18 | ||
|
Unavailable |
|||
|
#7
SCREW SET A
16016-ML3-910
|
$27.37 | ||
|
Available to order. Add to View Price |
|||
|
#8
VALVE SET, THROTTLE
16022-KA4-771
|
$89.35 | ||
|
Unavailable |
|||
|
#9
VALVE SET, STARTER
16046-KA3-761
|
$85.56 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, COMPRESSION COIL
16050-KA4-771
|
$15.81 | ||
|
Unavailable |
|||
|
#11
SPRING, COMPRESSION COIL
16051-KA3-761
|
$18.75 | ||
|
Unavailable |
|||
|
#12
COLLAR, SPRING SETTING
16066-KA3-761
|
$3.49 | ||
|
Unavailable |
|||
|
#14
CARBURETOR ASSY.
16100-KZ4-700
Superseded by 16100-KZ4-307
|
$297.93 | ||
|
Unavailable |
|||
|
#15
CAP, CABLE SEALING
16118-166-004
|
$10.15 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOLDER, CABLE
16137-KA3-761
|
$13.10 | ||
|
Unavailable |
|||
|
#18
PLATE, BUFFER
16185-KA3-761
|
$12.46 | ||
|
Unavailable |
|||
|
#20
SCREW, PAN (4X16)
93500-04016-0H
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, PAN (4X16)
93500-04016-08
Superseded by 93500-04016-0H
|
$0.87 | ||
|
Unavailable |
|||
|
#20
SCREW, PAN (4X16)
93500-04016-1H
Superseded by 93500-04016-0H
|
$0.87 | ||
|
Unavailable |
|||
|
#21
CLIP, TUBE (B7)
95002-02070
|
$1.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BULK HOSE, VINYL (3.5X6.5X8000) (3.5X6.5X270)
95003-05008-60M
|
$23.43 | ||
|
Available to order. Add to View Price |
|||
|
#24
BULK HOSE, VINYL (4X7X8000) (4X7X330)
95003-07008-60M
|
$29.67 | ||
|
Available to order. Add to View Price |
|||
|
#25
BULK HOSE, VINYL (4X7X8000) (4X7X360)
95003-07008-60M
|
$29.67 | ||
|
Unavailable |
|||
|
#26
JET, MAIN (#170)
99101-357-1700
|
$11.40 | ||
|
Available to order. Add to View Price |
|||
|
#26
JET, MAIN (#170)
99113-GHB-1700
Superseded by 99101-357-1700
|
$11.40 | ||
|
Unavailable |
|||
|
#27
JET, SLOW (#58)
99103-KA3-0580
|
$10.78 | ||
|
Unavailable |
|||
|
#27
JET, SLOW (#58)
99103-440-0580
Superseded by 99103-KA3-0580
|
$10.78 | ||
|
Unavailable |
|||
