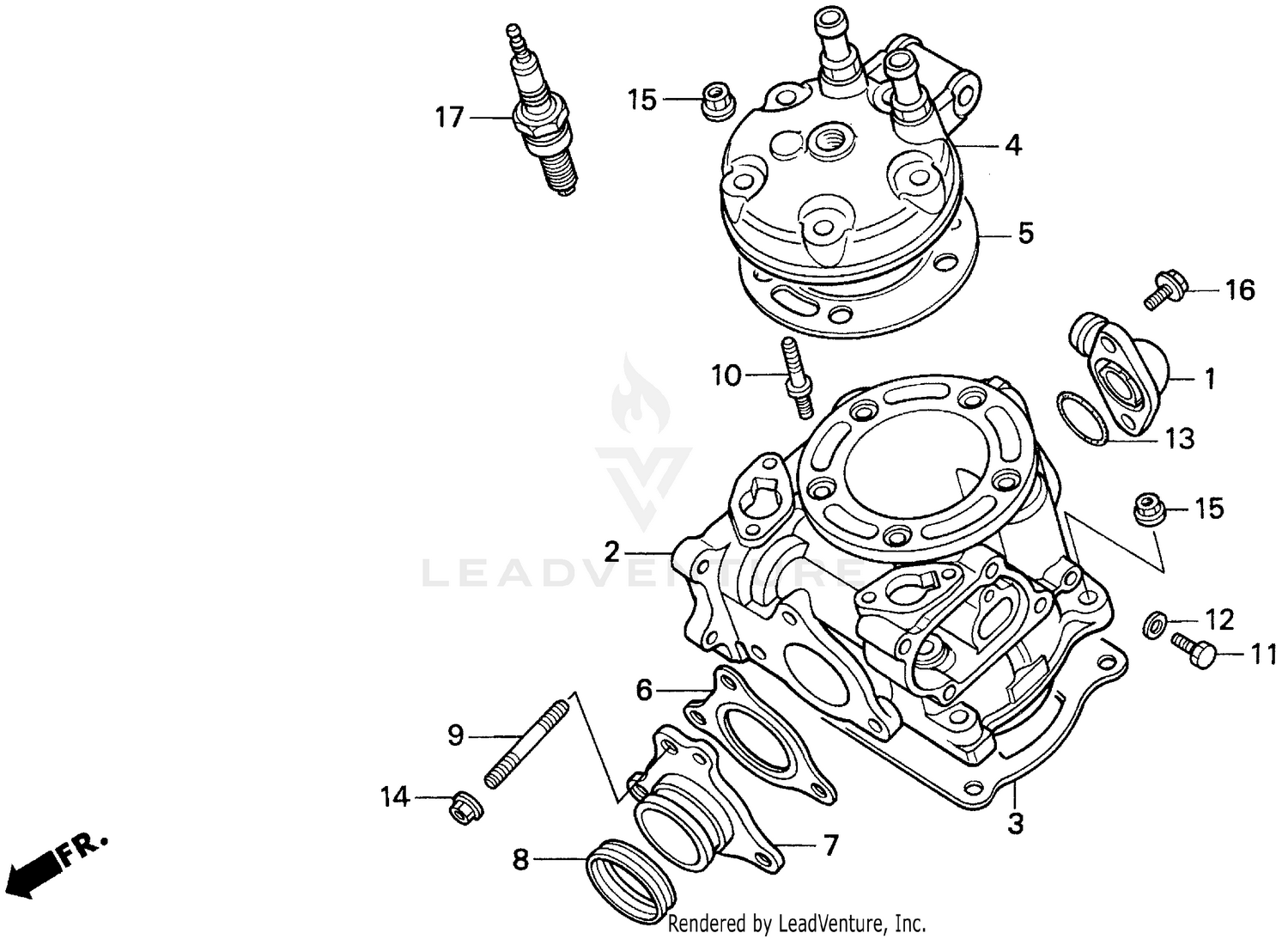

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT, WATER HOSE
12103-KZ4-700
|
$52.11 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER A
12110-KZ4-700
|
$522.91 | ||
|
Unavailable |
|||
|
#2
CYLINDER A
12120-KZ4-700
Superseded by 12110-KZ4-700
|
$522.91 | ||
|
Unavailable |
|||
|
#3
GASKET, CYLINDER
12191-KZ4-306
Superseded by 12191-KZ4-620
|
$15.76 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, CYLINDER
12191-KZ4-700
Superseded by 12191-KZ4-620
|
$15.76 | ||
|
Unavailable |
|||
|
#3
GASKET, CYLINDER
12191-KZ4-860
Superseded by 12191-KZ4-620
|
$15.76 | ||
|
Unavailable |
|||
|
#3
GASKET, CYLINDER
12191-KZ4-620
|
$15.76 | ||
|
Unavailable |
|||
|
#4
CYLINDER HEAD
12200-KZ4-700
Superseded by 12200-KZ4-730
|
$76.56 | ||
|
Unavailable |
|||
|
#4
CYLINDER HEAD
12200-KZ4-730
|
$76.56 | ||
|
Unavailable |
|||
|
#5
GASKET, CYLINDER HEAD
12251-KZ4-701
|
$26.31 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, EX. JOINT
18291-KZ4-700
|
$8.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
JOINT, EX. PIPE
18352-KZ4-700
|
$87.26 | ||
|
Unavailable |
|||
|
#8
SEAL, EX. PIPE
18359-KS7-000
|
$15.13 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BOLT, STUD (6X24)
90006-HA8-630
|
$5.07 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOLT, SPECIAL STUD
90011-KZ4-700
|
$8.89 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, OIL CHECK
90037-360-000
|
$4.10 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
GASKET, FR. FORK DRAIN VALVE
90543-273-000
|
$2.82 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
O-RING (19X3) (NOK)
91312-KE7-003
|
$2.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
NUT, FLANGE (8MM)
94050-08000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X20)
96001-06020-00
|
$1.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
SPARK PLUG (BR9EG) (NGK)
98079-59649
Superseded by 98079-59679
|
$7.07 | ||
|
Unavailable |
|||
|
#17
SPARK PLUG (W27ESR-V) (DENSO)
98079-59659
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPARK PLUG (BR9EG) (NGK)
98079-59669
Superseded by 98079-59679
|
$7.07 | ||
|
Unavailable |
|||
|
#17
SPARK PLUG (BR9EG) (NGK)
98079-59679
|
$7.07 | ||
|
Unavailable |
|||
