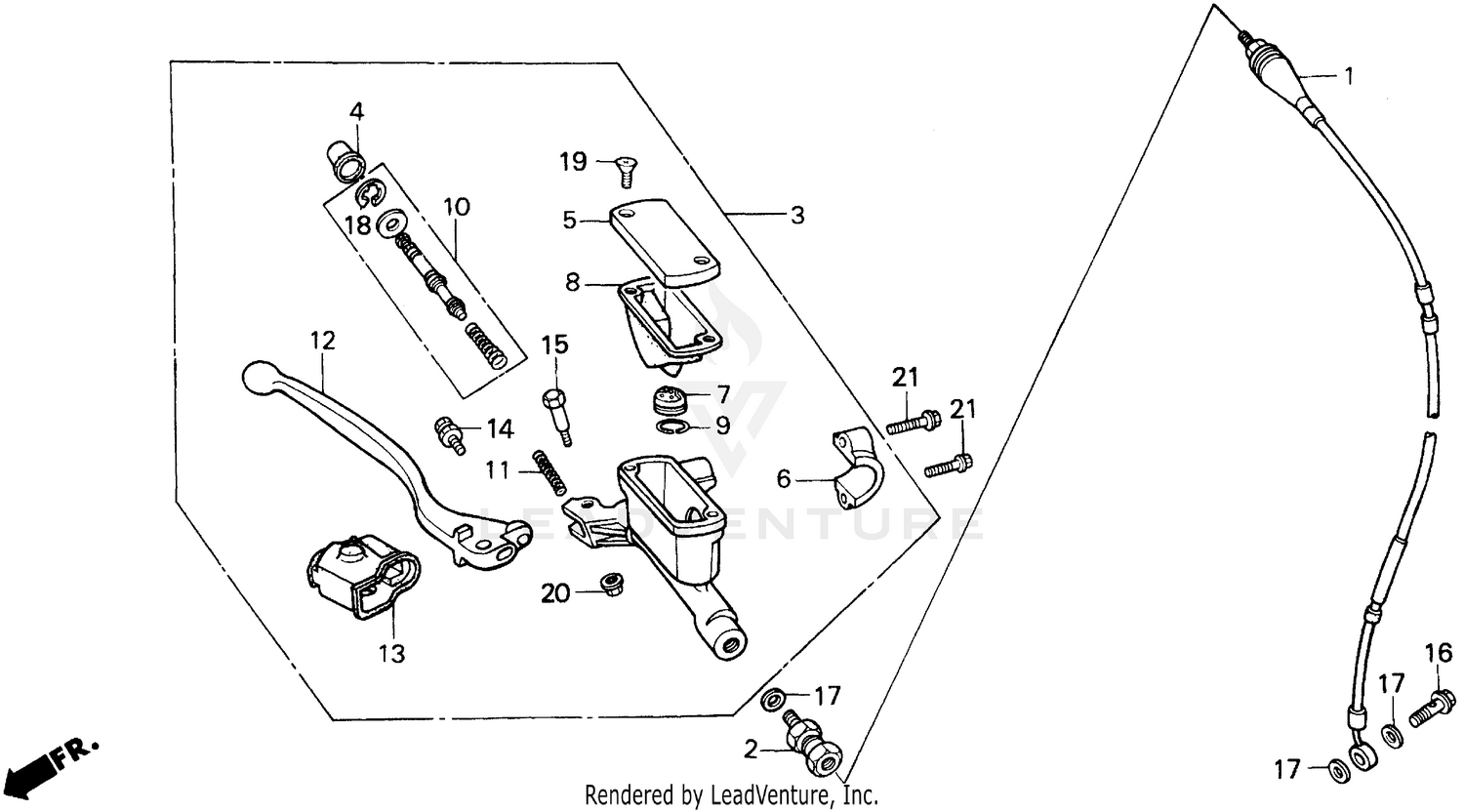

Fr. Brake Master Cyl. 90-91 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOSE, FR. BRAKE
45125-KZ3-003
|
$101.89 | ||
|
Unavailable |
|||
|
#2
JOINT, BRAKE HOSE
45127-KZ4-003
|
$18.45 | ||
|
Available to order. Add to View Price |
|||
|
#3
MASTER CYLINDER ASSY., FR. (NISSIN) (ALT. P/N: 45510-KS6-405)
45500-KS6-841
|
$130.59 | ||
|
Unavailable |
|||
|
#4
BOOT
45504-KN5-006
|
$12.93 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP, MASTER CYLINDER
45513-KA3-732
Superseded by 45513-KCE-006
|
$23.77 | ||
|
Unavailable |
|||
|
#5
CAP, MASTER CYLINDER
45513-KCE-006
|
$23.77 | ||
|
Unavailable |
|||
|
#6
HOLDER, MASTER CYLINDER
45517-166-006
|
$16.42 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEPARATOR
45518-KA3-731
|
$14.76 | ||
|
Available to order. Add to View Price |
|||
|
#8
DIAPHRAGM
45520-KA3-731
|
$16.44 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING
45523-KA3-731
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
PISTON SET, MASTER CYLINDER
45530-KN5-305
|
$65.22 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, BRAKE LEVER (NOT AVAILABLE)
53174-KS6-831
|
$2.33 | ||
|
Unavailable |
|||
|
#12
LEVER, R. HANDLEBAR
53175-KS6-671
|
$18.96 | ||
|
Unavailable |
|||
|
#13
COVER, R. HANDLEBAR
53176-KS6-006
|
$5.62 | ||
|
Unavailable |
|||
|
#14
BOLT SET, ADJUSTER
90111-KS6-000
Superseded by 90111-ML3-791
|
$8.29 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HANDLE LEVER PIVOT
90114-166-006
|
$8.16 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, OIL (10X22)
90145-MS9-611
Superseded by 90145-MS9-612
|
$9.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT, OIL (10X22)
90145-MS9-612
|
$9.20 | ||
|
Unavailable |
|||
|
#17
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
CIRCLIP
90651-MA5-671
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, FLAT (4X12)
93600-04012-0G
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
SCREW, FLAT (4X12)
93600-04012-1G
Superseded by 93600-04012-0G
|
$0.95 | ||
|
Unavailable |
|||
|
#20
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X22)
96001-06022-07
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
