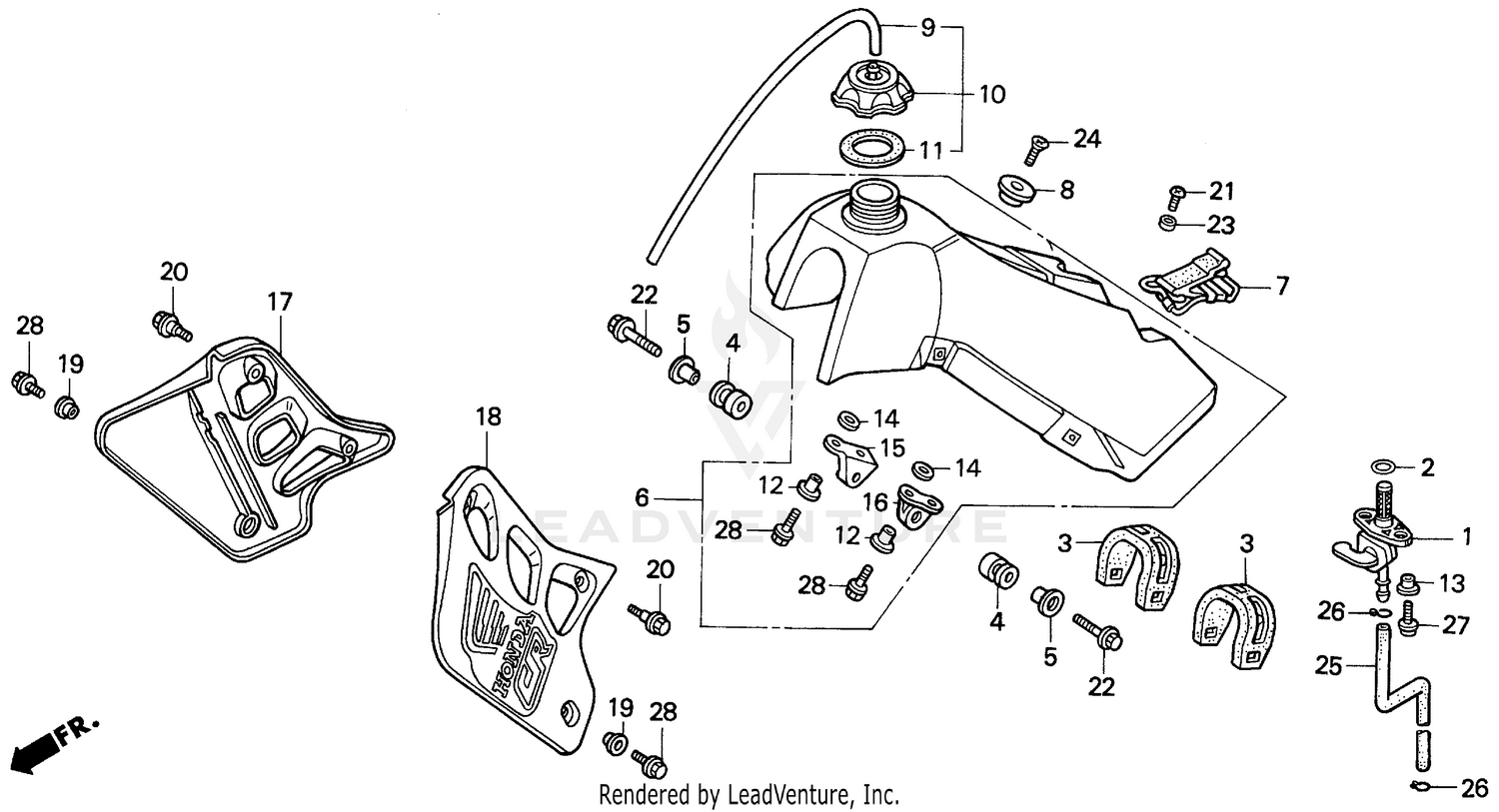

Fuel Tank 90 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PETCOCK ASSY.
16950-ML3-910
Superseded by 16950-ML3-911
|
$61.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1
PETCOCK ASSY.
16950-ML3-911
|
$61.89 | ||
|
Unavailable |
|||
|
#2
O-RING (11.8X3.55)
16997-467-000
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
RUBBER, TANK SETTING (B)
17506-KA3-830
|
$15.15 | ||
|
Unavailable |
|||
|
#4
RUBBER, TANK MOUNTING RUBBER, FUEL TANK SETTING
17508-GBF-830
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#4
RUBBER, TANK MOUNTING
17508-KS6-700
Superseded by 17508-GBF-830
|
$7.42 | ||
|
Unavailable |
|||
|
#5
COLLAR, TANK SETTING
17509-KS6-700
|
$11.07 | ||
|
Available to order. Add to View Price |
|||
|
#6
TANK, FUEL *R119* (FLASH RED) (NOT AVAILABLE)
17510-KZ4-000ZB
|
$338.62 | ||
|
Unavailable |
|||
|
#7
BAND, RR. TANK
17516-KS6-700
|
$24.55 | ||
|
Unavailable |
|||
|
#8
COLLAR, FR. SEAT
17518-KS6-700
|
$7.85 | ||
|
Available to order. Add to View Price |
|||
|
#9
TUBE, FUEL CAP BREATHER
17521-429-000
|
$8.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
CAP ASSY., FUEL TANK
17620-ML3-840
|
$30.55 | ||
|
Unavailable |
|||
|
#11
GASKET, FUEL TANK CAP
17624-KA4-000
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, FUEL TANK SETTING
17626-KA4-700
|
$8.44 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR, FUEL TANK SETTING
17626-467-000
|
$6.00 | ||
|
Available to order. Add to View Price |
|||
|
#14
RUBBER, FR. FUEL TANK
17627-467-000
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET, R. FR. FUEL TANK
17634-KS6-701
|
$13.89 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRACKET, L. FR. FUEL TANK
17635-KS6-701
|
$13.89 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHROUD SET, R. RADIATOR *R119* (WL) (FLASH RED)
19071-KZ4-700ZA
|
$67.99 | ||
|
Unavailable |
|||
|
#18
SHROUD SET, L. RADIATOR *R119* (WL) (FLASH RED)
19072-KZ4-700ZA
|
$67.99 | ||
|
Unavailable |
|||
|
#19
COLLAR (6X23)
19509-KA3-730
|
$8.78 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, SHROUD SETTING
90101-ML3-840
|
$5.33 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, TRUSS (M6X16)
90110-KA3-830
Superseded by 90131-S0X-A00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, TRUSS (M6X16)
90131-S0X-A00
|
$1.35 | ||
|
Unavailable |
|||
|
#22
BOLT, FLANGE (6X40)
90137-KA3-830
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#23
COLLAR (6.2X6)
90516-KA3-830
|
$2.10 | ||
|
Unavailable |
|||
|
#24
SCREW, FLAT (6X16)
93600-06016-0A
|
$1.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
BULK HOSE, FUEL (7.5X8000) (7.3X130)
95001-75008-60M
|
$125.78 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLIP, TUBE (B12)
95002-02120
|
$2.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
BOLT, FLANGE (6X16)
96001-06016-00
|
$1.10 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
BOLT, FLANGE (6X20)
96001-06020-00
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
