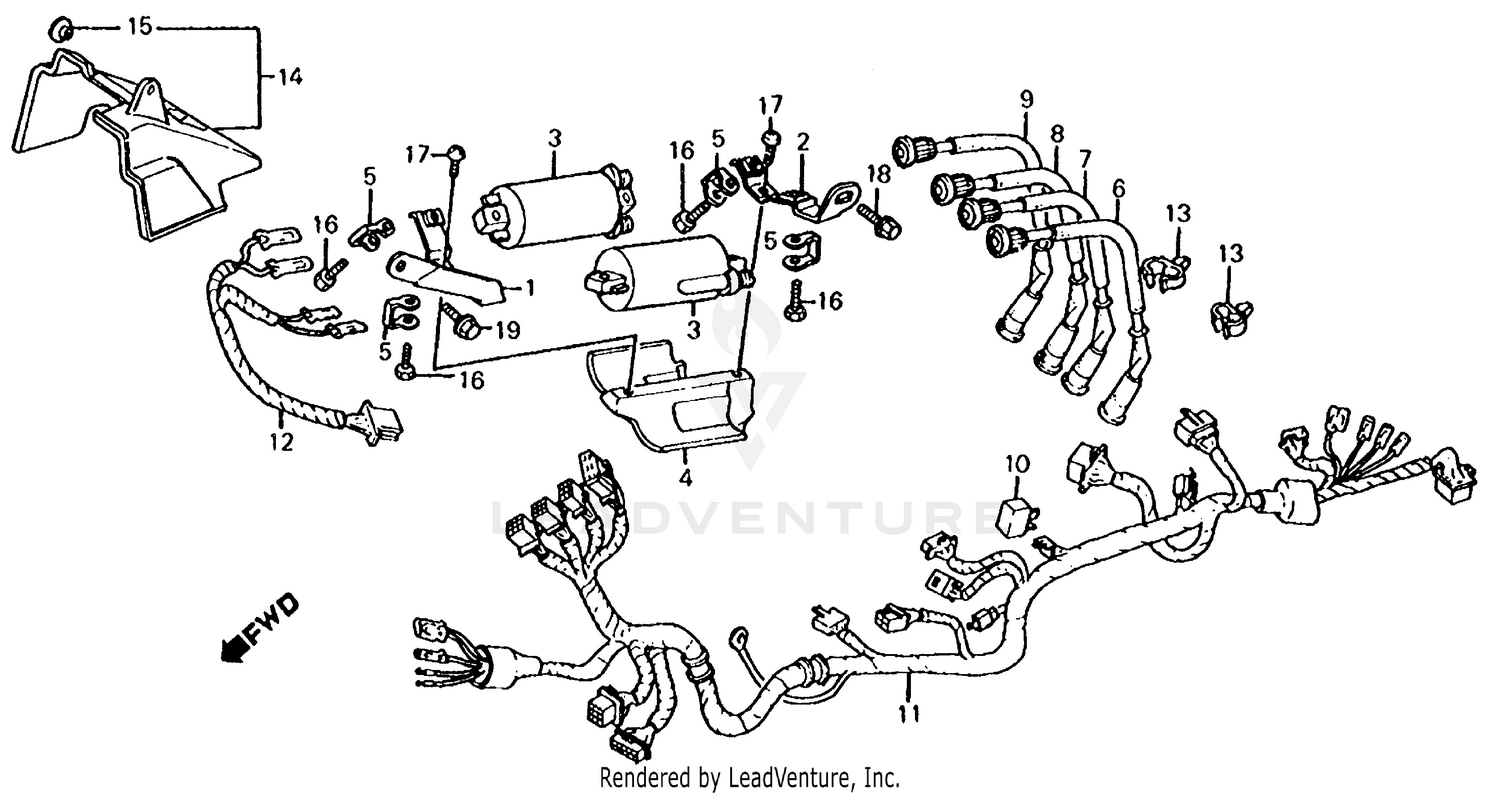

Wire Harness + Ignition Coil Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET, FR. IGNITION COIL
30505-MJ1-000
|
$11.97 | ||
|
Unavailable |
|||
|
#2
BRACKET, RR. IGNITION COIL
30506-MJ1-780
|
$7.08 | ||
|
Unavailable |
|||
|
#3
COIL, IGNITION
30510-MA6-013
|
$204.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
COVER, IGNITION COIL
30515-MJ1-000
|
$18.91 | ||
|
Unavailable |
|||
|
#5
SPACER, IGNITION COIL
30520-MB0-000
|
$3.45 | ||
|
Unavailable |
|||
|
#6
CAP ASSY., SPARK PLUG (1-1)
30751-MJ1-670
|
$31.47 | ||
|
Unavailable |
|||
|
#7
CAP, IGNITION (2-1)
30752-MJ1-670
Superseded by 30752-MJ0-940
|
$17.32 | ||
|
Unavailable |
|||
|
#8
CAP ASSY., SPARK PLUG (3-2)
30753-MJ1-670
|
$31.47 | ||
|
Unavailable |
|||
|
#9
CAP ASSY., SPARK PLUG (4-3)
30754-MJ1-670
|
$31.47 | ||
|
Unavailable |
|||
|
#10
RECTIFIER ASSY., SILICON (SHINDENGEN)
31700-124-003
Superseded by 31700-124-008
|
$36.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
RECTIFIER ASSY., SILICON (SHINDENGEN)
31700-124-008
|
$36.00 | ||
|
Unavailable |
|||
|
#11
WIRE HARNESS
32100-MJ1-780
|
$316.98 | ||
|
Unavailable |
|||
|
#12
SUB-WIRE, IGNITION COIL
32107-MJ1-670
|
$18.97 | ||
|
Unavailable |
|||
|
#13
CLAMP, SPARK PLUG WIRE
32127-MJ1-670
|
$3.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
GUIDE, AIR
50750-MJ1-780
|
$14.93 | ||
|
Unavailable |
|||
|
#15
WASHER, CHAIN CASE SETTING
90522-028-000
|
$3.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT, HEX. (6X20)
92000-06020-4J
Superseded by 92101-06020-4J
|
$1.58 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEX. (6X20)
92101-06020-4J
|
$1.58 | ||
|
Unavailable |
|||
|
#17
SCREW, TAPPING (5X12)
93901-25210
|
$0.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X12)
95700-06012-00
Superseded by 95701-06012-00
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X12)
95701-06012-00
|
$2.09 | ||
|
Unavailable |
|||
|
#19
BOLT, FLANGE (6X22)
95700-06022-07
Superseded by 95701-06022-07
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X22)
95701-06022-07
|
$1.07 | ||
|
Unavailable |
|||
