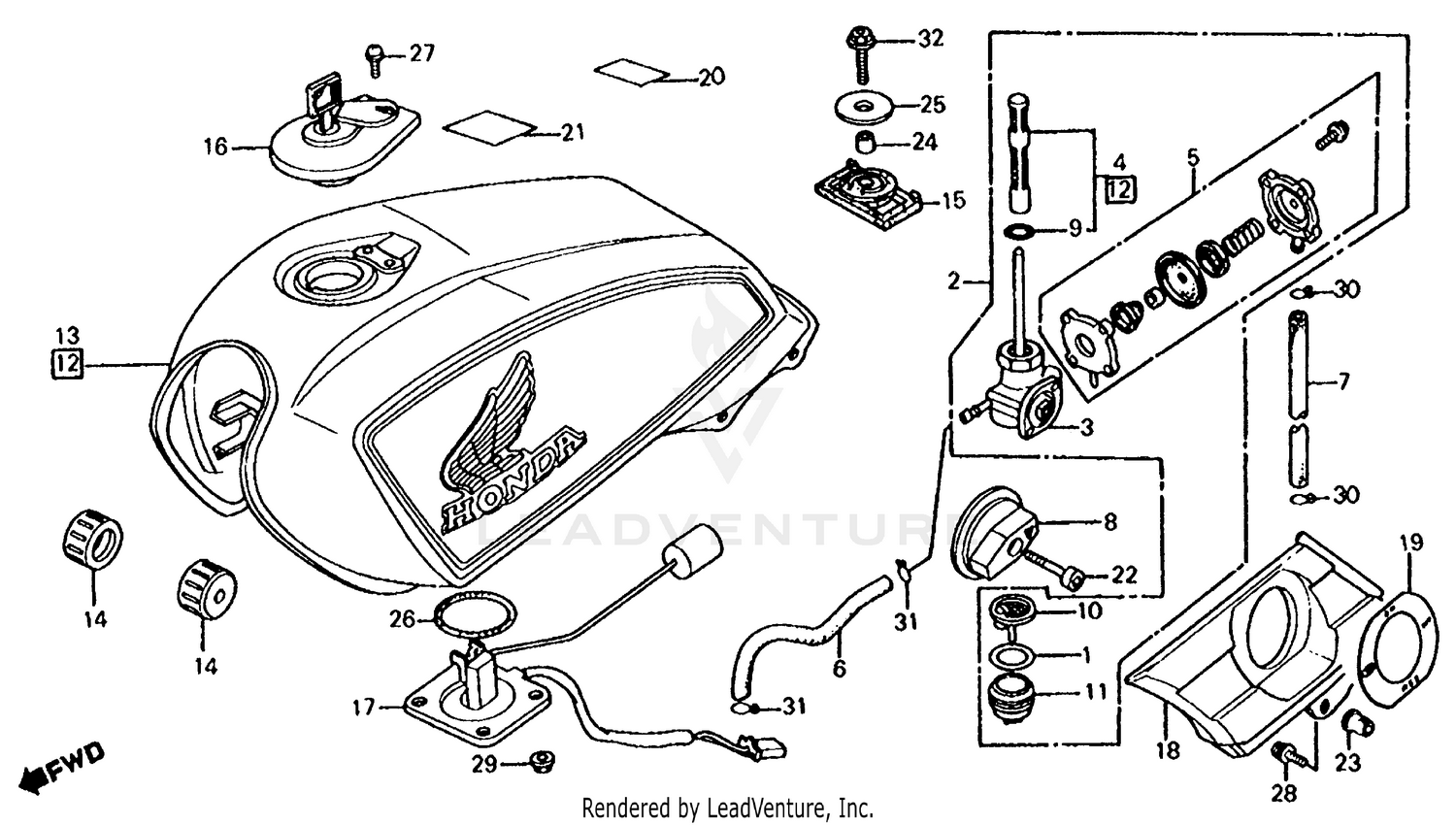

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET SET, PETCOCK (CONTAINS 1 LARGE & 1 SMALL. USE AS NEEDED)
16080-898-631
|
$29.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1
GASKET, FUEL STRAINER CUP
16173-001-004
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1
O-RING (2.4X18.6)
16955-283-000
Superseded by 16075-GHB-B00
|
$5.87 | ||
|
Available to order. Add to View Price |
|||
|
#1
O-RING (2.4X18.6)
16958-011-000
Superseded by 16075-GHB-B00
|
$5.87 | ||
|
Unavailable |
|||
|
#1
O-RING (2.4X18.6)
16958-028-000
Superseded by 16075-GHB-B00
|
$5.87 | ||
|
Unavailable |
|||
|
#2
PETCOCK ASSY., AUTO (NOT AVAILABLE)
16950-MJ1-005
|
$215.50 | ||
|
Unavailable |
|||
|
#3
BODY, PETCOCK
16951-MJ1-005
Superseded by 16951-MJ1-015
|
$117.13 | ||
|
Unavailable |
|||
|
#3
BODY, PETCOCK
16951-MJ1-015
|
$117.13 | ||
|
Unavailable |
|||
|
#4
SCREEN, FUEL STRAINER
16952-461-751
|
$45.70 | ||
|
Unavailable |
|||
|
#5
COVER SET, PETCOCK
16953-ME5-005
Superseded by 16953-ME5-025
|
$54.02 | ||
|
Available to order. Add to View Price |
|||
|
#6
TUBE, PETCOCK
16954-MJ1-000
Superseded by 16954-MJ1-010
|
$9.57 | ||
|
Unavailable |
|||
|
#6
TUBE, PETCOCK
16954-MJ1-010
|
$9.57 | ||
|
Unavailable |
|||
|
#7
TUBE, PETCOCK VACUUM
16955-MJ1-000
|
$8.47 | ||
|
Unavailable |
|||
|
#8
CAP, PETCOCK
16956-MJ1-000
Superseded by 16956-MJ1-010
|
$12.60 | ||
|
Unavailable |
|||
|
#8
CAP, PETCOCK
16956-MJ1-010
|
$12.60 | ||
|
Unavailable |
|||
|
#9
O-RING
16958-MA2-771
|
$5.56 | ||
|
Available to order. Add to View Price |
|||
|
#10
FILTER, CUP
16959-461-751
|
$21.67 | ||
|
Available to order. Add to View Price |
|||
|
#11
CUP, FUEL STRAINER
16967-MA2-771
|
$30.40 | ||
|
Available to order. Add to View Price |
|||
|
#13
TANK SET, FUEL *NH1* (BLACK)
175A1-MJ1-780ZA
|
$544.96 | ||
|
Unavailable |
|||
|
#13
TANK SET, FUEL *PB127CU* (CANDY ALEUTIAN BLUE) (NOT AVAILABLE)
175A1-MJ1-780ZB
|
$507.94 | ||
|
Unavailable |
|||
|
#14
RUBBER, FR. FUEL TANK
17611-KE8-000
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#14
RUBBER, FR. FUEL TANK
17611-286-000
Superseded by 17611-KE8-000
|
$5.29 | ||
|
Unavailable |
|||
|
#15
RUBBER, RR. FUEL TANK
17613-MA5-771
|
$12.27 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAP, FUEL FILLER
17620-MB1-023
Superseded by 17620-MB1-043
|
$147.80 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAP, FUEL FILLER
17620-MB1-033
Superseded by 17620-MB1-043
|
$147.80 | ||
|
Unavailable |
|||
|
#17
FUEL UNIT (NOT AVAILABLE)
37800-MJ1-672
|
$52.31 | ||
|
Unavailable |
|||
|
#18
COVER, FUEL VALVE (NOT AVAILABLE)
83615-MJ1-000
|
$24.72 | ||
|
Unavailable |
|||
|
#19
MARK, FUEL LEVER
83621-MJ1-300
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#20
LABEL, FR. FORK CAUTION
87517-KM9-640
|
$3.78 | ||
|
Unavailable |
|||
|
#21
LABEL, DRIVE CAUTION *A73* (TYPEG) (GOLD)
87560-ME9-670ZA
|
$6.56 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, SOCKET (4X23)
90163-MJ1-000
|
$2.82 | ||
|
Unavailable |
|||
|
#23
NUT, INSERT (5X0.8)
90316-MJ1-000
|
$4.42 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR, FUEL TANK
90502-MA5-770
|
$5.00 | ||
|
Unavailable |
|||
|
#25
WASHER (8.3X38)
90502-461-000
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING (39.5X5)
91305-MC7-000
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW-WASHER (4X8)
93893-04008-08
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW-WASHER (5X10)
93893-05010-07
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
CLIP, TUBE (B7)
95002-02070
|
$1.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
CLIP, TUBE (B10)
95002-02100
|
$1.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
BOLT, FLANGE (8X28)
95700-08028-00
Superseded by 95701-08028-00
|
$1.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
BOLT, FLANGE (8X28)
95701-08028-00
|
$1.58 | ||
|
Unavailable |
|||
