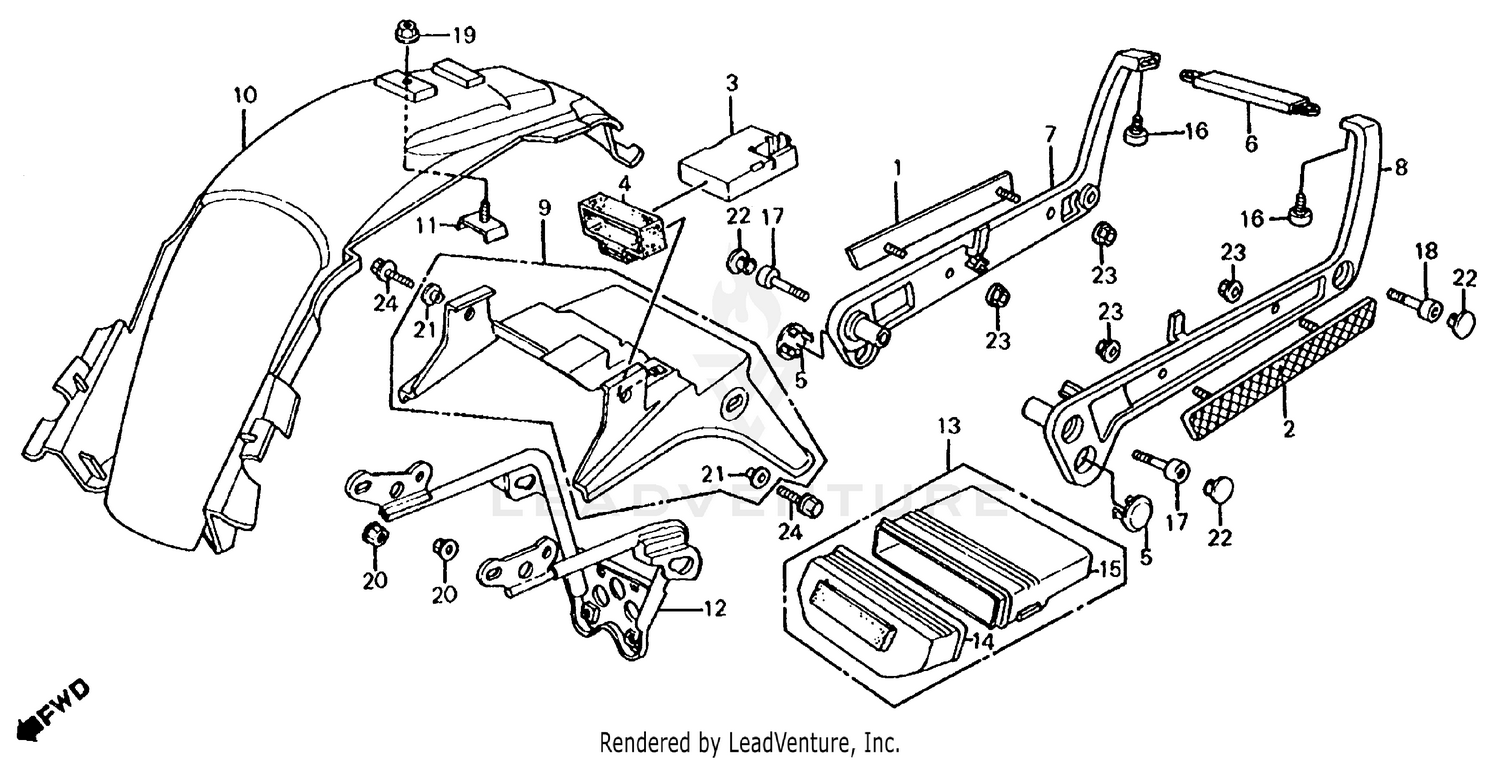

Rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REFLECTOR, R. REFLEX (NOT AVAILABLE)
33743-MJ1-671
|
$33.10 | ||
|
Unavailable |
|||
|
#2
REFLECTOR, L. REFLEX
33745-MJ1-671
|
$40.27 | ||
|
Unavailable |
|||
|
#3
SENSOR, STOP & TAILLIGHT
35550-MB2-771
|
$141.19 | ||
|
Unavailable |
|||
|
#3
SENSOR, STOP & TAILLIGHT (NOT AVAILABLE)
35550-MB2-772
|
$126.89 | ||
|
Unavailable |
|||
|
#4
SUSPENSION, STOP & TAILLIGHT SENSOR
35551-MG9-770
|
$8.78 | ||
|
Unavailable |
|||
|
#5
CAP, GRAB RAIL (NOT AVAILABLE)
77315-MJ1-000
|
$2.26 | ||
|
Unavailable |
|||
|
#6
GRAB RAIL, RR.
77320-MJ1-000
|
$34.79 | ||
|
Unavailable |
|||
|
#7
GRAB RAIL, R.
77330-MJ1-000
|
$114.15 | ||
|
Unavailable |
|||
|
#8
GRAB RAIL, L.
77340-MJ1-000
|
$135.88 | ||
|
Unavailable |
|||
|
#9
FENDER A, RR.
80100-MJ1-000
|
$100.85 | ||
|
Unavailable |
|||
|
#10
FENDER B, RR.
80101-MJ1-010
|
$130.58 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, FENDER SETTING
80102-MJ1-000
|
$8.34 | ||
|
Unavailable |
|||
|
#12
STIFFENER, FENDER A
80105-MJ1-000
|
$94.10 | ||
|
Unavailable |
|||
|
#13
CASE ASSY., PACKAGE
83510-MJ1-000
|
$41.14 | ||
|
Unavailable |
|||
|
#14
CASE A, PACKAGE
83511-MJ1-000
|
$18.91 | ||
|
Unavailable |
|||
|
#15
CASE B, PACKAGE (NOT AVAILABLE)
83512-MJ1-000
|
$17.96 | ||
|
Unavailable |
|||
|
#16
BOLT, SPECIAL (6MM) (NOT AVAILABLE)
90118-MJ1-000
|
$2.17 | ||
|
Unavailable |
|||
|
#17
BOLT, SOCKET (8X42)
90155-MJ1-000
|
$3.27 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, SOCKET (8X54)
90156-MJ1-000
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, FLANGE (8MM)
90309-428-731
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
NUT, CAP (8MM)
90443-107-000
|
$3.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
COLLAR, GEARSHIFT LEVER SETTING
90522-170-700
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
CAP, SOCKET BOLT (10MM)
91456-ME1-670
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, FLANGE (5MM)
94050-05000
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X16)
95700-06016-08
Superseded by 95701-06016-08
|
$1.52 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X16)
95701-06016-08
|
$1.52 | ||
|
Unavailable |
|||
