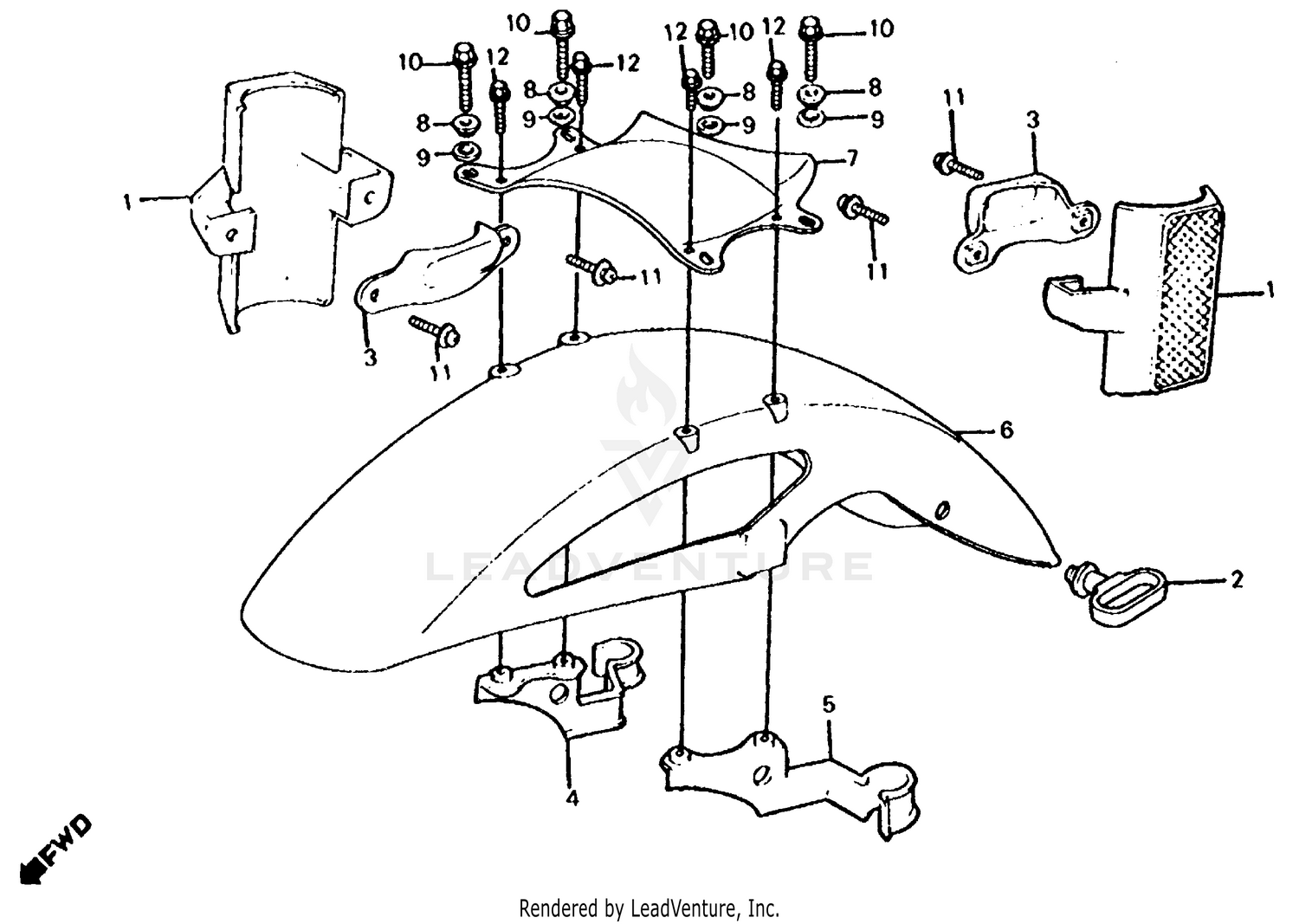

Front Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REFLECTOR, FR. REFLEX (NOT AVAILABLE)
33741-MJ1-672
|
$20.11 | ||
|
Unavailable |
|||
|
#2
GROMMET, WIRE
45451-GE2-000
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#3
STAY, FR. REFLECTOR
50765-MJ1-000
|
$6.06 | ||
|
Unavailable |
|||
|
#4
CLAMP, R. FR. BRAKE HOSE
60108-MJ1-000
|
$17.96 | ||
|
Unavailable |
|||
|
#5
CLAMP, L. FR. BRAKE HOSE
60109-MJ1-000
|
$17.96 | ||
|
Unavailable |
|||
|
#6
FENDER, FR. *NH1* (BLACK) (NOT AVAILABLE)
61100-MB2-000ZC
|
$143.12 | ||
|
Unavailable |
|||
|
#6
FENDER, FR. *PB127CU* (CANDY ALEUTIAN BLUE) (NOT AVAILABLE)
61100-MB2-000ZK
|
$139.50 | ||
|
Unavailable |
|||
|
#7
BRACE, FR. FORK (NOT AVAILABLE)
61102-MJ1-670
|
$64.41 | ||
|
Unavailable |
|||
|
#8
COLLAR, FORK BRACE
61104-MJ1-671
|
$4.31 | ||
|
Unavailable |
|||
|
#9
RUBBER, SETTING
61105-MJ1-670
|
$3.65 | ||
|
Unavailable |
|||
|
#10
BOLT, FLANGE (6X16)
90106-MJ1-000
|
$2.92 | ||
|
Unavailable |
|||
|
#11
SCREW-WASHER (5X12)
93894-05012-07
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X16)
96000-06016-07
Superseded by 96001-06016-07
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X16)
96001-06016-07
|
$1.20 | ||
|
Unavailable |
|||
