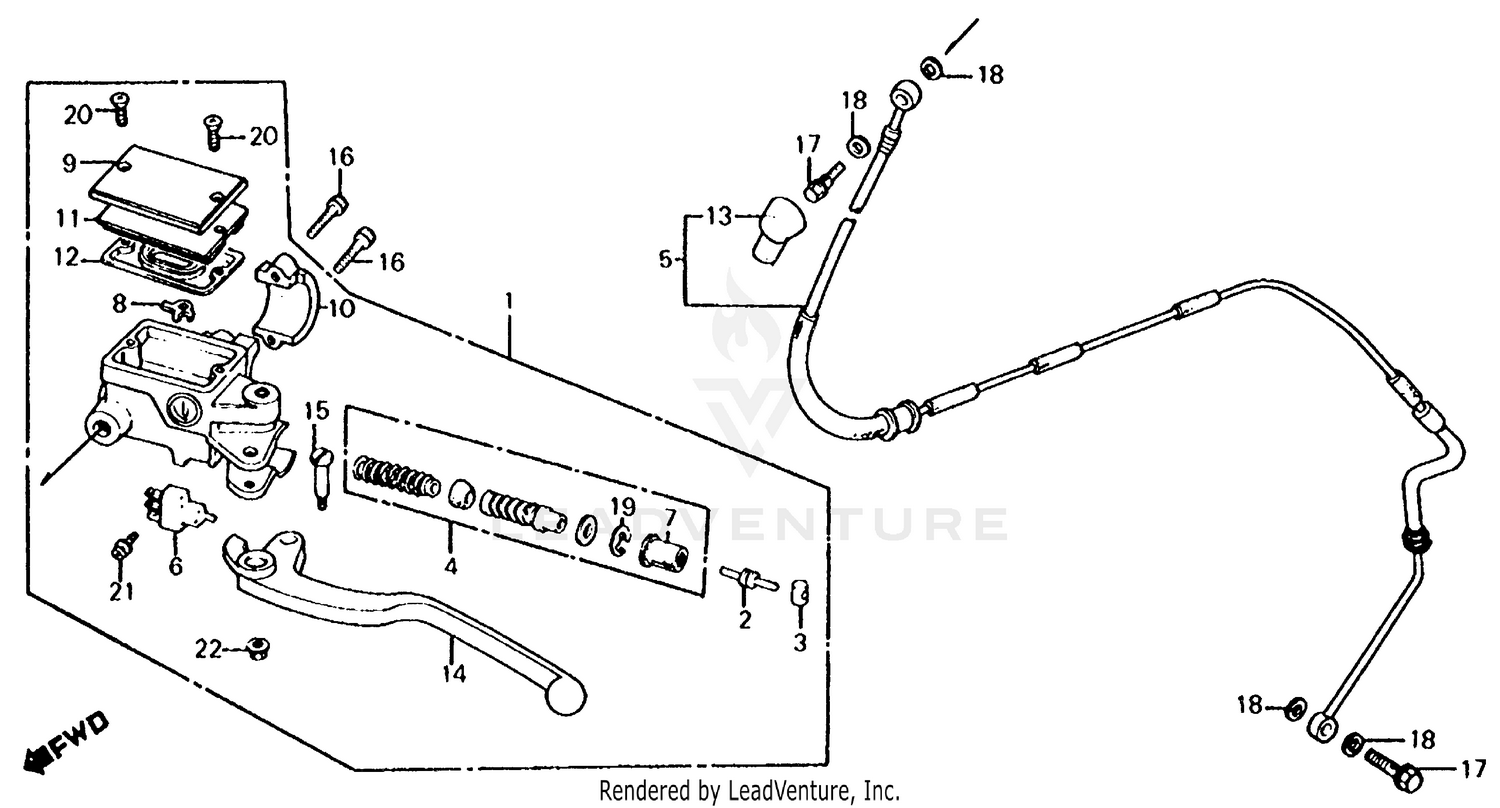

Clutch Master Cylinder + Left Control Lever Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER CYLINDER ASSY., CLUTCH
22880-ME5-772
|
$345.11 | ||
|
Unavailable |
|||
|
#2
ROD, PUSH
22884-MB0-006
|
$25.04 | ||
|
Available to order. Add to View Price |
|||
|
#3
BUSH
22885-MB0-006
|
$15.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
PISTON SET, CLUTCH MASTER CYLINDER
22886-MB0-305
|
$90.07 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
PIPE, CLUTCH (NOT AVAILABLE)
22889-MJ1-010
|
$139.11 | ||
|
Unavailable |
|||
|
#6
SWITCH ASSY., CLUTCH
35330-MB0-003
|
$22.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOOT
45504-410-003
|
$14.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
PROTECTOR
45512-MA6-006
|
$5.38 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
CAP, MASTER CYLINDER
45513-KE5-026
|
$50.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
HOLDER, MASTER CYLINDER
45517-MB0-006
|
$17.61 | ||
|
Unavailable |
|||
|
#11
PLATE, DIAPHRAGM
45518-MB4-671
|
$14.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
DIAPHRAGM
45520-MA5-672
|
$21.96 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOOT, MASTER CYLINDER
45522-422-000
|
$10.51 | ||
|
Available to order. Add to View Price |
|||
|
#14
LEVER, L. HANDLEBAR
53178-KE8-006
|
$30.02 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, R. HANDLEBAR PIVOT
90114-MA5-671
|
$11.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT, SOCKET (6X22)
96600-06022-17
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, SOCKET (6X22)
96700-06022-17
Superseded by 96600-06022-17
|
$2.22 | ||
|
Unavailable |
|||
|
#17
BOLT, OIL (10X22) (SAGA)
90145-KM3-750
Superseded by 90145-KM3-751
|
$13.35 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, OIL (10X22)
90145-KM3-751
|
$13.35 | ||
|
Unavailable |
|||
|
#17
BOLT, OIL (10X22) (SAGA)
90145-961-010
Superseded by 90145-KM3-751
|
$13.35 | ||
|
Unavailable |
|||
|
#18
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
CIRCLIP (INNER) (18MM)
90651-377-003
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, FLAT (4X12)
93600-04012-0G
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
SCREW, FLAT (4X12)
93600-04012-1G
Superseded by 93600-04012-0G
|
$0.95 | ||
|
Unavailable |
|||
|
#21
SCREW-WASHER (4X12)
93893-04012-07
|
$1.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
SCREW-WASHER (4X12)
93893-04012-17
Superseded by 93893-04012-07
|
$1.40 | ||
|
Unavailable |
|||
|
#22
NUT, CAP (6MM)
90201-415-000
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
