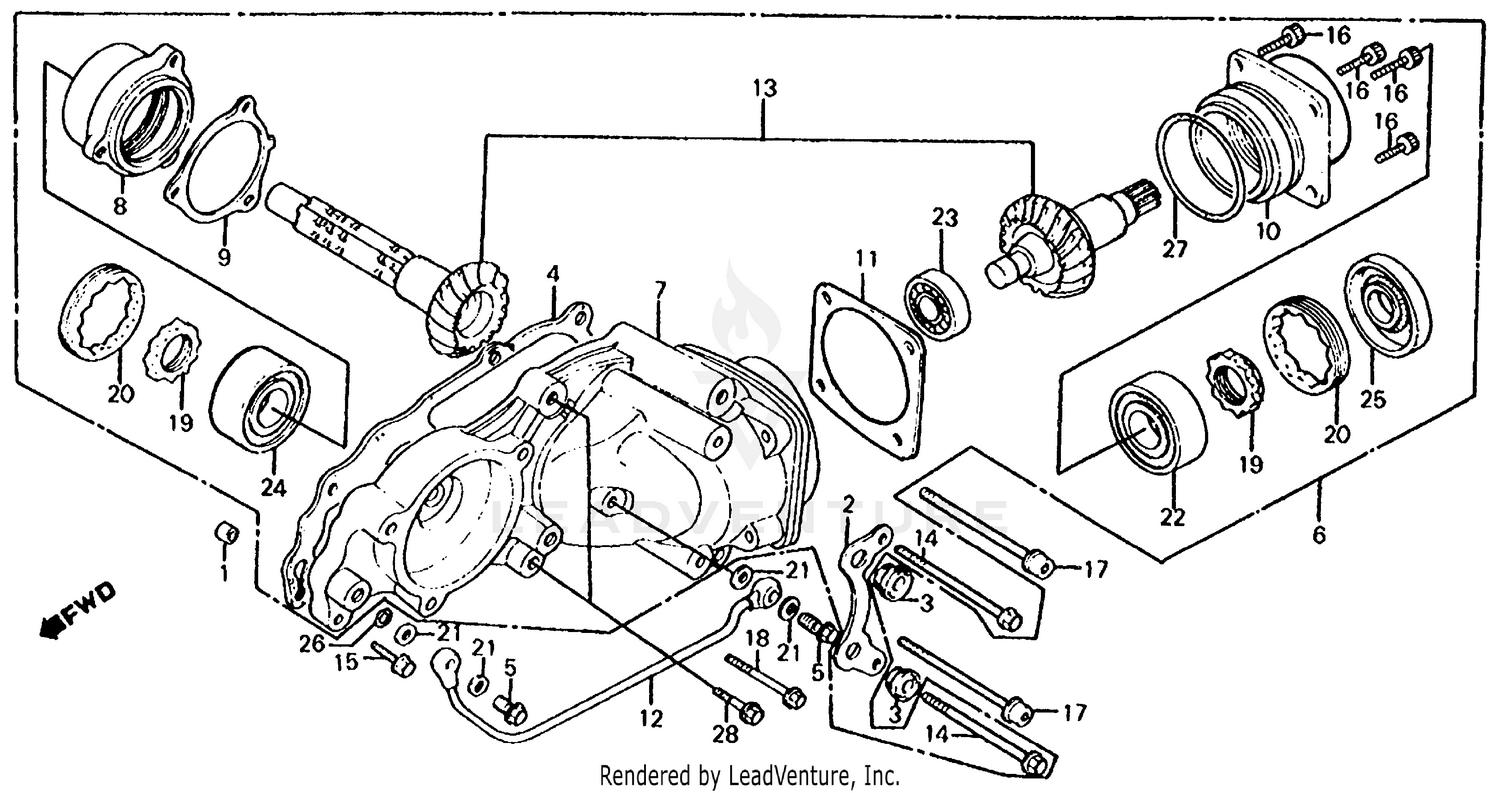

Cross Shaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NOZZLE, TRANSMISSION OIL
11205-MJ1-770
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, CLUTCH
11342-MB0-000
|
$15.65 | ||
|
Unavailable |
|||
|
#3
GROMMET B, RR. COVER
11345-MB0-000
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, L. COVER (INNER)
11663-MJ1-770
Superseded by 11663-MW3-601
|
$20.73 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, L. COVER (INNER)
11663-MW3-600
Superseded by 11663-MW3-601
|
$20.73 | ||
|
Unavailable |
|||
|
#5
BOLT, FLANGE (7X20) (NOT AVAILABLE)
15533-MA6-000
|
$3.52 | ||
|
Unavailable |
|||
|
#6
CASE ASSY., SIDE GEAR
21100-MJ1-770
Superseded by 21100-MJ1-772
|
$1,243.84 | ||
|
Unavailable |
|||
|
#6
CASE ASSY., SIDE GEAR
21100-MJ1-771
Superseded by 21100-MJ1-772
|
$1,243.84 | ||
|
Unavailable |
|||
|
#6
CASE ASSY., SIDE GEAR
21100-MJ1-772
|
$1,243.84 | ||
|
Unavailable |
|||
|
#7
CASE, SIDE GEAR
21200-MJ1-770
|
$559.70 | ||
|
Unavailable |
|||
|
#8
HOLDER, COUNTERSHAFT BEARING
21301-MJ1-000
|
$99.70 | ||
|
Unavailable |
|||
|
#9
SHIM, COUNTERSHAFT (0.40)
21321-MJ1-000
|
$15.86 | ||
|
Unavailable |
|||
|
#9
SHIM, COUNTERSHAFT (0.45)
21322-MJ1-000
|
$15.86 | ||
|
Unavailable |
|||
|
#9
SHIM, COUNTERSHAFT (0.50)
21323-MJ1-000
|
$15.86 | ||
|
Unavailable |
|||
|
#9
SHIM, COUNTERSHAFT (0.55)
21324-MJ1-000
|
$15.86 | ||
|
Unavailable |
|||
|
#9
SHIM, COUNTERSHAFT (0.60)
21325-MJ1-000
|
$15.86 | ||
|
Unavailable |
|||
|
#10
HOLDER, CROSS SHAFT BEARING
21371-MB0-000
|
$126.15 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHIM, CROSS SHAFT (0.40)
21381-MB0-770
|
$28.84 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHIM, CROSS SHAFT (0.45)
21382-MB0-770
|
$28.84 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHIM, CROSS SHAFT (0.50)
21383-MB0-770
|
$28.84 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHIM, CROSS SHAFT (0.55)
21384-MB0-770
|
$28.84 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHIM, CROSS SHAFT (0.60)
21385-MB0-770
|
$28.84 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIPE, TRANSMISSION OIL
21801-MJ1-000
|
$23.08 | ||
|
Unavailable |
|||
|
#13
SHAFT SET, CROSS
23200-MJ1-000
|
$307.08 | ||
|
Unavailable |
|||
|
#14
BOLT, FLANGE (8X100)
90042-ME5-000
|
$6.02 | ||
|
Unavailable |
|||
|
#15
BOLT, FLANGE SOCKET (6X28)
90016-MJ1-000
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, SOCKET (8X22)
96700-08022-17
|
$2.31 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE SOCKET (8X85)
90062-HA0-000
|
$7.75 | ||
|
Unavailable |
|||
|
#18
BOLT, UBS (8X60)
90063-MB0-003
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, LOCK (30MM)
90241-MB0-000
|
$25.56 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, LOCK (64MM)
90242-MB0-000
|
$39.40 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SEALING (7MM)
90441-MJ0-000
|
$6.53 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING, RADIAL BALL (5206)
91008-300-008
Superseded by 91012-MG7-003
|
$108.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BEARING, BALL (6303) (KOYO)
91011-MB0-003
|
$35.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BEARING, BALL (6303) (KOYO)
91011-MB0-004
Superseded by 91011-MB0-003
|
$35.00 | ||
|
Unavailable |
|||
|
#24
BEARING, SPECIAL BALL (30X62X25.8)
91012-MJ1-003
|
$73.40 | ||
|
Unavailable |
|||
|
#24
OIL SEAL (8X25X8) (ARAI)
91204-MB0-003
Superseded by 91204-MB0-013
|
$5.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
OIL SEAL (8X25X8) (ARAI)
91204-MB0-013
|
$5.09 | ||
|
Unavailable |
|||
|
#24
OIL SEAL (8X25X8) (ARAI)
91204-MB0-000
Superseded by 91204-MB0-013
|
$5.09 | ||
|
Unavailable |
|||
|
#24
OIL SEAL (8X25X8) (ARAI)
91208-MJ1-771
Superseded by 91204-MB0-013
|
$5.09 | ||
|
Unavailable |
|||
|
#25
OIL SEAL (25X66X8.5) (ARAI)
91205-MG7-003
|
$22.75 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING (7.8X1.9) (ARAI)
91301-MJ0-003
|
$2.86 | ||
|
Available to order. Add to View Price |
|||
|
#27
O-RING (69.5X3) (ARAI)
91314-MG7-003
|
$11.20 | ||
|
Available to order. Add to View Price |
|||
|
#27
O-RING (69.5X3) (ARAI)
91314-MJ0-000
Superseded by 91314-MG7-003
|
$11.20 | ||
|
Unavailable |
|||
|
#28
BOLT, FLANGE (8X40)
95700-08040-08
Superseded by 95701-08040-08
|
$2.32 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE (8X40)
95701-08040-08
|
$2.32 | ||
|
Unavailable |
|||
