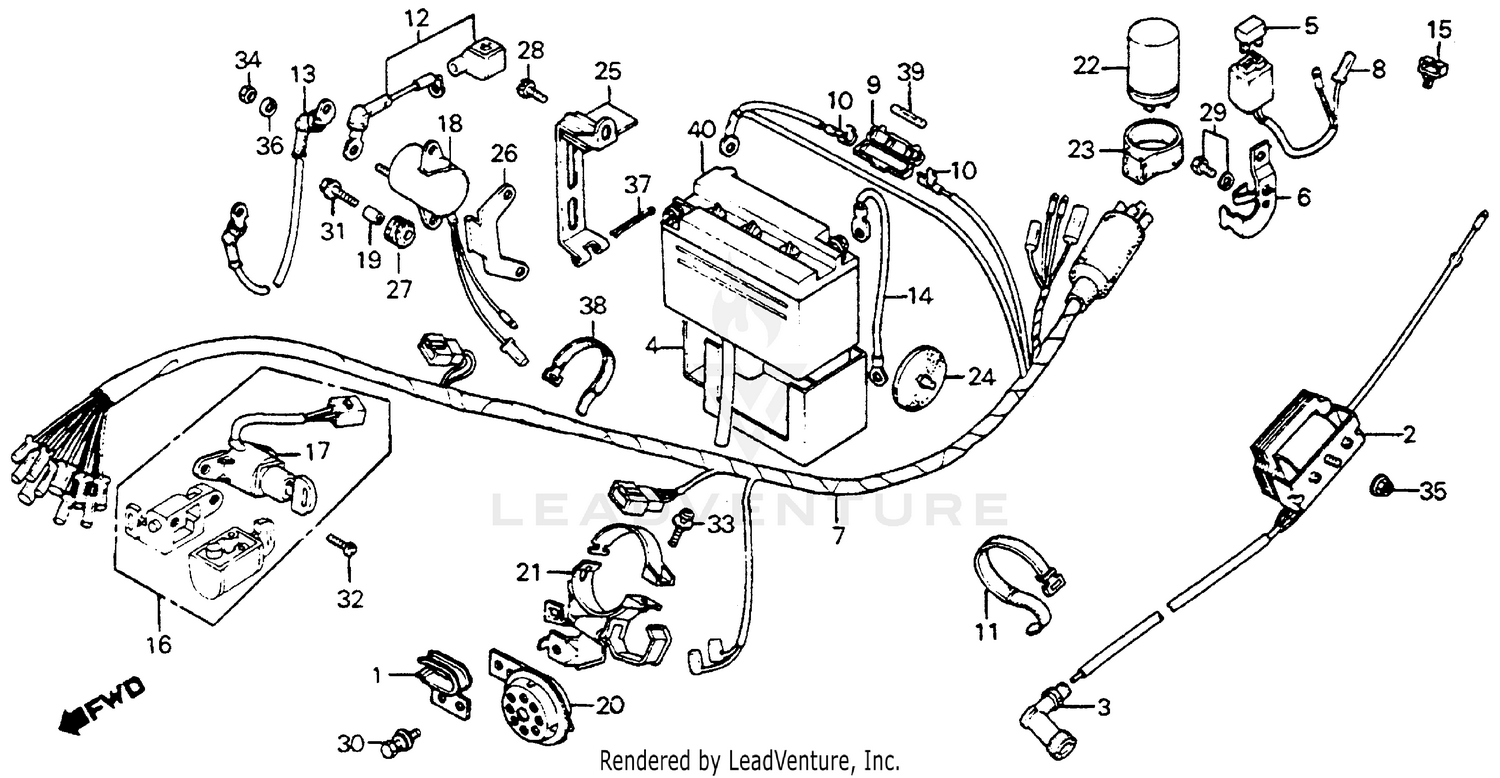

Wire Harness + Horn Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLAMP, FUEL TUBE (NOT AVAILABLE)
17505-174-670
|
$5.62 | ||
|
Unavailable |
|||
|
#2
COIL ASSY., A.C. IGNITION (TOYO) (NOT AVAILABLE)
30500-179-711
Superseded by 30500-179-712
|
$66.87 | ||
|
Unavailable |
|||
|
#2
COIL ASSY., A.C. IGNITION (TOYO) (NOT AVAILABLE)
30500-179-712
|
$66.87 | ||
|
Unavailable |
|||
|
#3
CAP ASSY., NOISE SUPPRESSOR
30700-KE2-942
|
$21.65 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP ASSY., NOISE SUPPRESSOR
30700-098-153
Superseded by 30700-KE2-942
|
$21.65 | ||
|
Unavailable |
|||
|
#3
CAP ASSY., NOISE SUPPRESSOR
30700-098-163
Superseded by 30700-KE2-942
|
$21.65 | ||
|
Unavailable |
|||
|
#5
RECTIFIER ASSY., SILICON (SHINDENGEN)
31700-124-003
Superseded by 31700-124-008
|
$36.00 | ||
|
Available to order. Add to View Price |
|||
|
#5
RECTIFIER ASSY., SILICON (SHINDENGEN)
31700-124-008
|
$36.00 | ||
|
Unavailable |
|||
|
#6
BRACKET, SELENIUM RECTIFIER (NOT AVAILABLE)
31701-086-000
|
$9.78 | ||
|
Unavailable |
|||
|
#7
WIRE HARNESS (NOT AVAILABLE)
32100-174-670
|
$93.18 | ||
|
Unavailable |
|||
|
#8
SUB-WIRE HARNESS, SILICON (NOT AVAILABLE)
32105-086-000
|
$14.36 | ||
|
Unavailable |
|||
|
#9
CASE, FUSE CONNECTOR
32111-230-000
|
$5.13 | ||
|
Available to order. Add to View Price |
|||
|
#10
CONNECTOR, FUSE
32112-230-000
|
$4.44 | ||
|
Available to order. Add to View Price |
|||
|
#11
BAND A3, WIRE
32161-001-000
Superseded by 95014-61300
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
BAND A3, WIRE
95014-61300
|
$2.25 | ||
|
Unavailable |
|||
|
#12
CABLE, STARTER BATTERY (NOT AVAILABLE)
32401-179-710
|
$17.92 | ||
|
Unavailable |
|||
|
#13
CABLE, STARTER MOTOR (NOT AVAILABLE)
32410-179-710
|
$24.70 | ||
|
Unavailable |
|||
|
#14
CABLE, BATTERY GROUND (NOT AVAILABLE)
32601-179-710
Superseded by 32601-179-711
|
$10.74 | ||
|
Unavailable |
|||
|
#14
CABLE, BATTERY GROUND (NOT AVAILABLE)
32601-179-711
|
$10.74 | ||
|
Unavailable |
|||
|
#15
GROMMET, WIRE
32985-300-000
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#16
LOCK SET (NOT AVAILABLE)
35010-174-670
Superseded by 35010-174-671
|
$89.25 | ||
|
Unavailable |
|||
|
#16
LOCK SET (NOT AVAILABLE)
35010-174-671
|
$89.25 | ||
|
Unavailable |
|||
|
#17
SWITCH ASSY., COMBINATION (NOT AVAILABLE)
35100-172-017
Superseded by 35100-172-027
|
$50.40 | ||
|
Unavailable |
|||
|
#17
SWITCH ASSY., COMBINATION (NOT AVAILABLE)
35100-172-027
|
$50.40 | ||
|
Unavailable |
|||
|
#18
SWITCH ASSY., STARTER MAGNETIC (NOT AVAILABLE)
35850-179-711
|
$104.95 | ||
|
Unavailable |
|||
|
#19
COLLAR, STARTING MAGNETIC SWITCH SETTING (NOT AVAILABLE)
35852-179-710
|
$2.57 | ||
|
Unavailable |
|||
|
#20
HORN ASSY.
38110-086-721
Superseded by 38110-179-701
|
$35.84 | ||
|
Unavailable |
|||
|
#20
HORN
38110-179-701
|
$35.84 | ||
|
Unavailable |
|||
|
#21
BRACKET, HORN (NOT AVAILABLE)
38110-174-670
|
$16.85 | ||
|
Unavailable |
|||
|
#22
RELAY ASSY., TURN SIGNAL
38300-GF0-405
|
$53.64 | ||
|
Available to order. Add to View Price |
|||
|
#22
RELAY ASSY., TURN SIGNAL
38300-089-671
Superseded by 38300-GF0-405
|
$53.64 | ||
|
Unavailable |
|||
|
#22
RELAY ASSY., TURN SIGNAL
38300-243-670
Superseded by 38300-GF0-405
|
$53.64 | ||
|
Unavailable |
|||
|
#22
RELAY ASSY., TURN SIGNAL
38300-428-004
Superseded by 38300-GF0-405
|
$53.64 | ||
|
Unavailable |
|||
|
#22
RELAY ASSY., TURN SIGNAL
38301-428-004
Superseded by 38300-GF0-405
|
$53.64 | ||
|
Unavailable |
|||
|
#22
RELAY ASSY., TURN SIGNAL
38301-428-671
Superseded by 38300-GF0-405
|
$53.64 | ||
|
Unavailable |
|||
|
#22
RELAY ASSY., TURN SIGNAL
38310-428-671
Superseded by 38300-GF0-405
|
$53.64 | ||
|
Unavailable |
|||
|
#23
SUSPENSION, TURN SIGNAL RELAY
38306-292-000
|
$4.73 | ||
|
Available to order. Add to View Price |
|||
|
#24
RUBBER, BATTERY STAY (NOT AVAILABLE)
50326-003-000
|
$1.31 | ||
|
Unavailable |
|||
|
#25
BAND, BATTERY *NH1* (BLACK) (NOT AVAILABLE)
50373-086-690B
|
$8.81 | ||
|
Unavailable |
|||
|
#26
HOLDER, CONNECTOR (NOT AVAILABLE)
50374-086-690
|
$4.42 | ||
|
Unavailable |
|||
|
#27
RUBBER, NUMBER BRACKET CUSHION
84705-292-000
|
$3.18 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, RECESSED (6X12)
92300-06012
Superseded by 92301-06012-0A
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, RECESSED (6X12)
92300-06012-0A
Superseded by 92301-06012-0A
|
$1.55 | ||
|
Unavailable |
|||
|
#28
BOLT, RECESSED (6X12)
92301-06012-0A
|
$1.55 | ||
|
Unavailable |
|||
|
#29
BOLT-WASHER (6X12)
93402-06012-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT-WASHER (6X12)
93412-06012-00
Superseded by 93402-06012-00
|
$1.85 | ||
|
Unavailable |
|||
|
#29
BOLT-WASHER (6X12)
93482-06012
Superseded by 93402-06012-00
|
$1.85 | ||
|
Unavailable |
|||
|
#29
BOLT-WASHER (6X12)
93482-06012-00
Superseded by 93402-06012-00
|
$1.85 | ||
|
Unavailable |
|||
|
#30
BOLT-WASHER (6X16)
93413-06016-00
Superseded by 93403-06016-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT-WASHER (6X16)
93483-06016
Superseded by 93403-06016-00
|
$1.70 | ||
|
Unavailable |
|||
|
#30
BOLT-WASHER (6X16)
93483-06016-00
Superseded by 93403-06016-00
|
$1.70 | ||
|
Unavailable |
|||
|
#31
BOLT-WASHER (6X20)
93401-06020-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT-WASHER (6X20)
93491-06020-00
Superseded by 93401-06020-00
|
$1.70 | ||
|
Unavailable |
|||
|
#32
SCREW, PAN (6X12)
93500-06012
Superseded by 93500-06012-0A
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW, PAN (6X12)
93500-06012-0A
|
$1.03 | ||
|
Unavailable |
|||
|
#32
SCREW, PAN (6X12)
93500-06012-00
Superseded by 93500-06012-0A
|
$1.03 | ||
|
Unavailable |
|||
|
#33
SCREW-WASHER (6X22) (NOT AVAILABLE)
93891-06022-00
|
$0.68 | ||
|
Unavailable |
|||
|
#34
NUT, HEX. (6MM)
94002-06080
Superseded by 94002-06080-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#34
NUT, HEX. (6MM)
94002-06080-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#34
NUT, HEX. (6MM)
94002-06080-00
Superseded by 94002-06080-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#34
NUT, HEX. (6MM)
94002-06080-05
Superseded by 94002-06080-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#35
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
WASHER, SPRING (6MM)
94111-06800
|
$1.18 | ||
|
Unavailable |
|||
|
#37
PIN, SPLIT (3.0X35)
94201-30350
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#38
BAND A3, WIRE
95014-61300
|
$2.25 | ||
|
Unavailable |
|||
|
#39
FUSE (15A)
98200-11500
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
|
#40
BATTERY (6N11-2D)
31500-174-505
Superseded by 31500-174-505AH
|
$94.18 | ||
|
Available to order. Add to View Price |
|||
|
#40
BATTERY (6N11-2D)
31500-174-505AH
|
$94.18 | ||
|
Unavailable |
|||
|
#40
BATTERY (6N11-2D)
31500-174-777
Superseded by 31500-174-505AH
|
$94.18 | ||
|
Unavailable |
|||
|
#40
BATTERY (6N11-2D)
98203-64210
Superseded by 31500-174-505AH
|
$94.18 | ||
|
Unavailable |
|||
