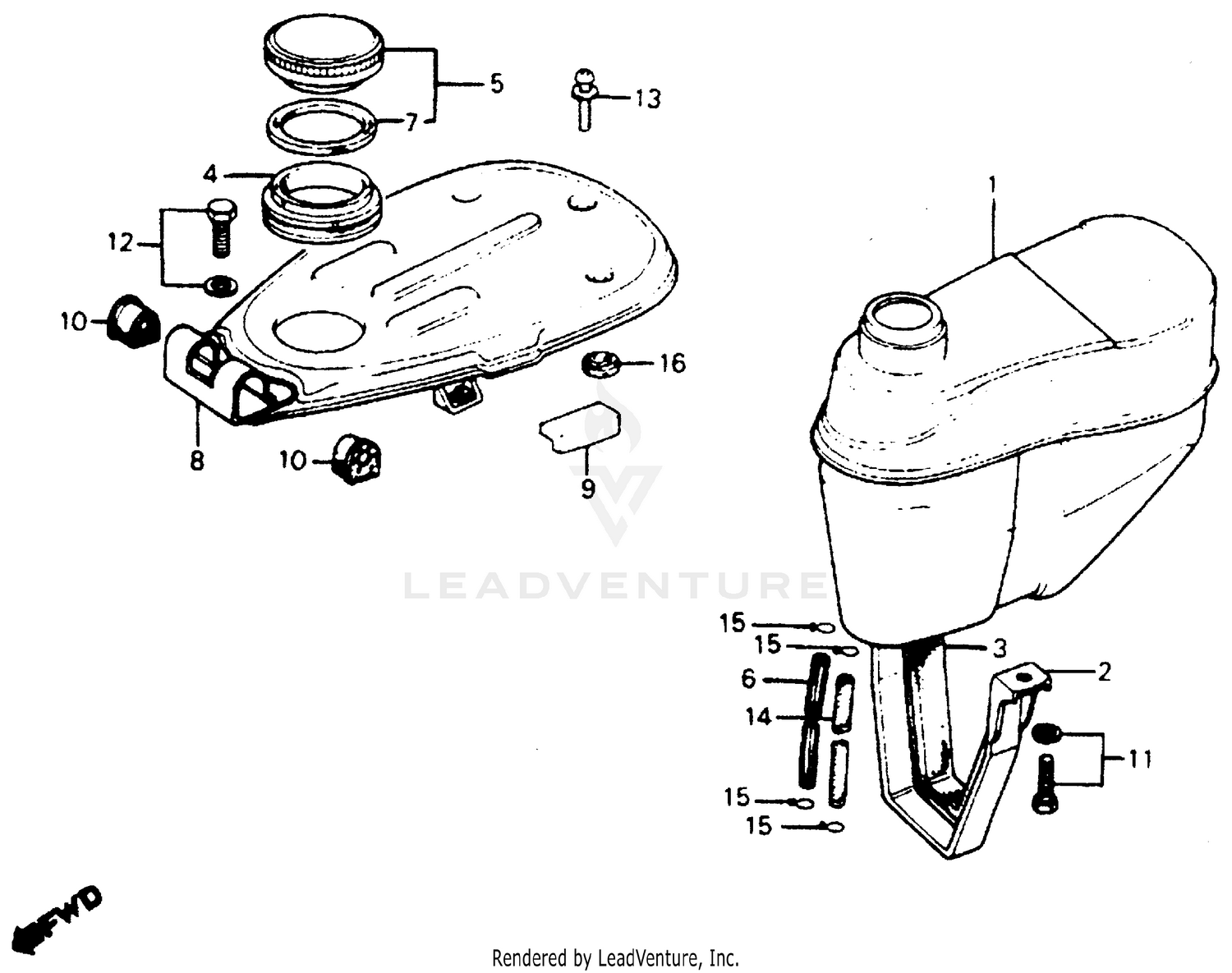

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TANK, FUEL
17500-092-720
Superseded by 17500-092-305CB
|
$197.34 | ||
|
Unavailable |
|||
|
#2
BAND, FUEL TANK (NOT AVAILABLE)
17503-092-670
|
$15.19 | ||
|
Unavailable |
|||
|
#3
RUBBER, FUEL TANK MOUNT
17504-092-670
|
$10.93 | ||
|
Unavailable |
|||
|
#4
GASKET, FUEL FILLER NECK
17512-086-010
|
$8.85 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, FUEL FILLER NECK
17512-092-720
Superseded by 17512-086-010
|
$8.85 | ||
|
Unavailable |
|||
|
#5
CAP, FUEL FILLER
17620-171-000
Superseded by 17620-171-020
|
$9.11 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP, FUEL FILLER
17620-171-010
Superseded by 17620-171-020
|
$9.11 | ||
|
Unavailable |
|||
|
#6
TUBE, FUEL RESERVE (NOT AVAILABLE)
17631-046-010
Superseded by 17681-096-000
|
$11.28 | ||
|
Unavailable |
|||
|
#6
TUBE, FUEL RESERVE (NOT AVAILABLE)
17681-096-000
|
$11.28 | ||
|
Unavailable |
|||
|
#7
GASKET
17631-096-700
Superseded by 17631-096-702
|
$2.96 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
GASKET
17631-096-701
Superseded by 17631-096-702
|
$2.96 | ||
|
Unavailable |
|||
|
#8
LID, FRAME *Y31* (PARAKEET YELLOW) (NOT AVAILABLE)
50751-092-720ZJ
|
$43.37 | ||
|
Unavailable |
|||
|
#8
LID, FRAME *PB31* (ANGEL BLUE) (NOT AVAILABLE)
50751-092-720ZK
|
$43.37 | ||
|
Unavailable |
|||
|
#9
SEAT, FRAME LID (NOT AVAILABLE)
50752-092-720
|
$4.47 | ||
|
Unavailable |
|||
|
#10
RUBBER, SEAT MOUNTING
77218-121-730
|
$10.77 | ||
|
Unavailable |
|||
|
#11
BOLT-WASHER (6X20)
93411-06020-00
Superseded by 93401-06020-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT-WASHER (6X20)
93481-06020
Superseded by 93401-06020-00
|
$1.70 | ||
|
Unavailable |
|||
|
#11
BOLT-WASHER (6X20)
93481-06020-00
Superseded by 93401-06020-00
|
$1.70 | ||
|
Unavailable |
|||
|
#12
BOLT-WASHER (8X16)
93401-08016-00
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT-WASHER (8X16)
93411-08016-00
Superseded by 93401-08016-00
|
$2.02 | ||
|
Unavailable |
|||
|
#12
BOLT-WASHER (8X16)
93481-08016
Superseded by 93401-08016-00
|
$2.02 | ||
|
Unavailable |
|||
|
#12
BOLT-WASHER (8X16)
93481-08016-00
Superseded by 93401-08016-00
|
$2.02 | ||
|
Unavailable |
|||
|
#13
SCREW-WASHER (6X25)
93891-06025-00
|
$1.17 | ||
|
Unavailable |
|||
|
#13
SCREW-WASHER (6X25)
93891-06025-10
Superseded by 93891-06025-00
|
$1.17 | ||
|
Unavailable |
|||
|
#14
BULK HOSE, FUEL (5.5X3000) (5.3X450)
95001-55003-60M
|
$57.33 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP, TUBE (B10)
95002-02100
|
$1.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
RUBBER C, STAND STOPPER
95011-63000
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
