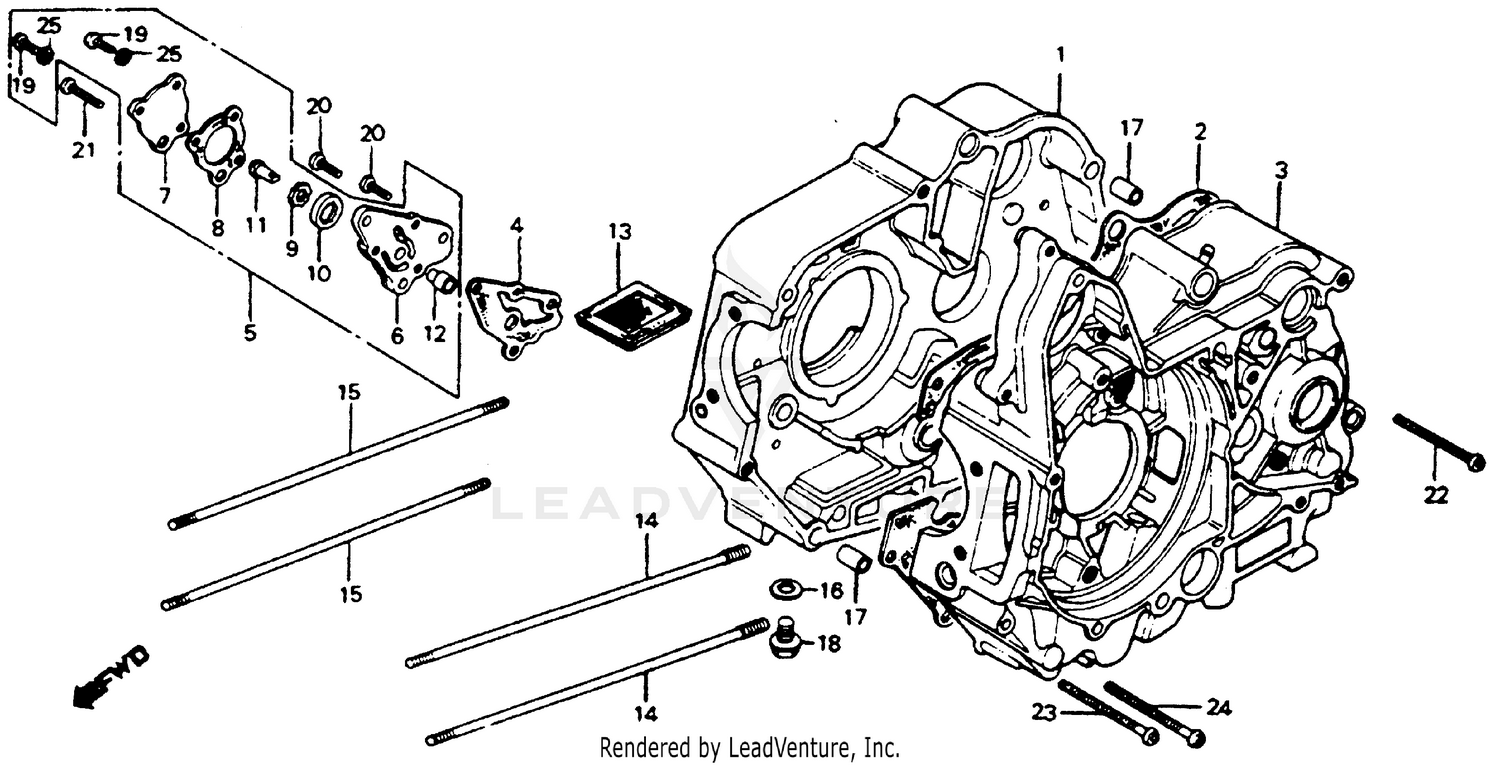

Crankcase Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE, R. (NOT AVAILABLE)
11100-174-670
|
$237.51 | ||
|
Unavailable |
|||
|
#2
GASKET, CRANKCASE
11191-178-010
Superseded by 11191-178-306
|
$6.86 | ||
|
Unavailable |
|||
|
#3
CRANKCASE, L.
11200-174-670
|
$263.94 | ||
|
Unavailable |
|||
|
#4
GASKET, OIL PUMP BODY
15119-178-000
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#5
PUMP ASSY., OIL
15300-035-000
|
$44.07 | ||
|
Unavailable |
|||
|
#6
BODY, OIL PUMP (NOT AVAILABLE)
15311-035-013
|
$17.61 | ||
|
Unavailable |
|||
|
#7
COVER, OIL PUMP (NOT AVAILABLE)
15321-035-003
|
$0.88 | ||
|
Unavailable |
|||
|
#8
GASKET, OIL PUMP COVER
15329-035-003
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#9
ROTOR, OIL PUMP (INNER) (NOT AVAILABLE)
15331-035-004
|
$3.76 | ||
|
Unavailable |
|||
|
#10
ROTOR, OIL PUMP (OUTER) (NOT AVAILABLE)
15332-035-004
|
$5.29 | ||
|
Unavailable |
|||
|
#11
DRIVESHAFT, OIL PUMP (NOT AVAILABLE)
15382-035-003
|
$3.76 | ||
|
Unavailable |
|||
|
#12
PIN, OIL PUMP KNOCK
15383-035-003
|
$1.50 | ||
|
Unavailable |
|||
|
#13
SCREEN, OIL FILTER
15421-035-010
|
$4.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOLT A, CYLINDER STUD (196MM)
90031-035-010
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT B, CYLINDER STUD (188MM)
90032-035-000
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, DRAIN PLUG (12MM)
90407-231-000
Superseded by 94109-12000
|
$1.28 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
GASKET, DRAIN PETCOCK (12.5X20)
90407-259-000
|
$3.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
WASHER, DRAIN PLUG (12MM)
94109-12000
|
$1.28 | ||
|
Unavailable |
|||
|
#17
PIN A, DOWEL (10X14)
90704-035-000
Superseded by 94301-10140
|
$2.58 | ||
|
Unavailable |
|||
|
#17
PIN A, DOWEL (10X14)
94301-10140
|
$2.58 | ||
|
Unavailable |
|||
|
#18
BOLT, DRAIN PLUG (12MM)
92800-12000
|
$4.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
SCREW, PAN (5X10)
93500-05010-0A
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, PAN (6X16)
93500-06016
Superseded by 93500-06016-0A
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, PAN (6X16)
93500-06016-0A
|
$1.20 | ||
|
Unavailable |
|||
|
#21
SCREW, PAN (6X22)
93500-06022
Superseded by 93500-06022-0A
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, PAN (6X22)
93500-06022-0A
|
$1.28 | ||
|
Unavailable |
|||
|
#22
SCREW, PAN (6X50)
93500-06050
Superseded by 93500-06050-0A
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, PAN (6X50)
93500-06050-0A
|
$1.08 | ||
|
Unavailable |
|||
|
#23
SCREW, PAN (6X60)
93500-06060
Superseded by 93500-06060-0A
|
$1.50 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, PAN (6X60)
93500-06060-0A
|
$1.50 | ||
|
Unavailable |
|||
|
#24
SCREW, PAN (6X65)
93500-06065
Superseded by 93500-06065-0A
|
$1.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
SCREW, PAN (6X65)
93500-06065-0A
|
$1.68 | ||
|
Unavailable |
|||
|
#25
WASHER, SPRING (5MM)
94111-05000
|
$1.18 | ||
|
Available to order. Add to View Price |
|||
