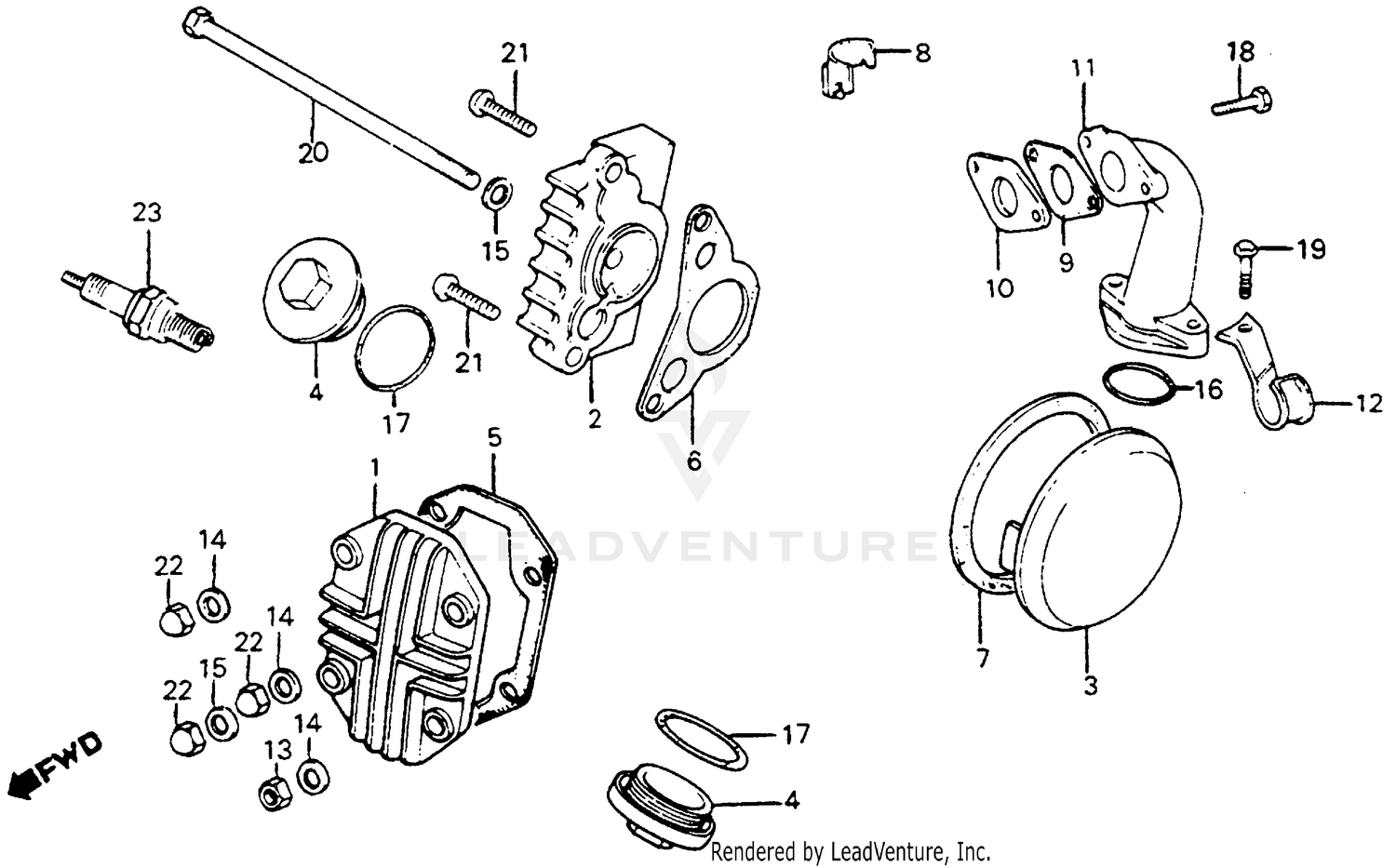

Cylinder Head Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CYLINDER HEAD
12301-086-000
|
$32.25 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, R. CYLINDER HEAD SIDE
12331-035-000
|
$21.25 | ||
|
Unavailable |
|||
|
#3
COVER, L. CYLINDER HEAD SIDE
12341-040-000
|
$21.25 | ||
|
Unavailable |
|||
|
#4
CAP, VALVE ADJ.
12361-035-000
Superseded by 12361-300-000
|
$12.40 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, VALVE ADJ.
12361-300-000
|
$12.40 | ||
|
Unavailable |
|||
|
#4
CAP, VALVE ADJ.
12361-371-980
Superseded by 12361-300-000
|
$12.40 | ||
|
Unavailable |
|||
|
#5
GASKET, CYLINDER HEAD COVER
12391-GW8-680
Superseded by 12391-KVM-C20
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, CYLINDER HEAD COVER
12391-GW8-681
Superseded by 12391-KVM-C20
|
$5.20 | ||
|
Unavailable |
|||
|
#5
GASKET, CYLINDER HEAD COVER
12391-035-000
Superseded by 12391-KVM-C20
|
$5.20 | ||
|
Unavailable |
|||
|
#5
GASKET, CYLINDER HEAD COVER
12391-035-306
Superseded by 12391-KVM-C20
|
$5.20 | ||
|
Unavailable |
|||
|
#6
GASKET, R. CYLINDER
12394-035-000
Superseded by 12394-035-010
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, R. CYLINDER
12394-035-010
|
$4.27 | ||
|
Unavailable |
|||
|
#6
GASKET, R. CYLINDER
12394-035-306
Superseded by 12394-035-010
|
$4.27 | ||
|
Unavailable |
|||
|
#7
GASKET, L. CYLINDER HEAD SIDE COVER
12395-GW8-680
Superseded by 12395-GW8-682
|
$6.22 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET, L. CYLINDER HEAD SIDE COVER
12395-GW8-681
Superseded by 12395-GW8-682
|
$6.22 | ||
|
Unavailable |
|||
|
#7
GASKET, L. CYLINDER HEAD SIDE COVER
12395-035-000
Superseded by 12395-GW8-682
|
$6.22 | ||
|
Unavailable |
|||
|
#7
GASKET, L. CYLINDER HEAD SIDE COVER
12395-035-306
Superseded by 12395-GW8-682
|
$6.22 | ||
|
Unavailable |
|||
|
#8
COVER, AIR BLEED (NOT AVAILABLE)
16111-086-305
|
$3.78 | ||
|
Unavailable |
|||
|
#9
GASKET, INSULATOR
16201-HB2-900
Superseded by 16201-086-701
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET, INSULATOR
16201-086-700
Superseded by 16201-086-701
|
$5.65 | ||
|
Unavailable |
|||
|
#9
GASKET, INSULATOR
16201-086-701
|
$5.65 | ||
|
Unavailable |
|||
|
#10
INSULATOR, CARBURETOR
16211-086-700
|
$7.11 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIPE, INLET (NOT AVAILABLE)
17111-086-700
|
$38.30 | ||
|
Unavailable |
|||
|
#12
CLAMP A, BREATHER TUBE (NOT AVAILABLE)
17237-174-670
|
$4.76 | ||
|
Unavailable |
|||
|
#13
NUT, HEX. (6MM)
90230-087-000
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SEALING (6MM)
90442-035-000
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER A, SEALING (6MM)
90443-035-000
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING (27X2.0)
91301-028-000
|
$3.51 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING (27X2) (ARAI)
91305-KF0-000
Superseded by 91305-KF0-003
|
$3.51 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
O-RING (27X2) (ARAI)
91305-KF0-003
|
$3.51 | ||
|
Unavailable |
|||
|
#17
O-RING (30.8MM)
91302-001-020
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, HEX. (6X22)
92000-06022
Superseded by 92101-06022-0A
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, HEX. (6X22)
92000-06022-00
Superseded by 92101-06022-0A
|
$1.62 | ||
|
Unavailable |
|||
|
#18
BOLT, HEX. (6X22)
92101-06022-0A
|
$1.62 | ||
|
Unavailable |
|||
|
#19
BOLT, HEX. (6X25)
92000-06025
Superseded by 92101-06025-0A
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOLT, HEX. (6X25)
92101-06025-0A
|
$1.70 | ||
|
Unavailable |
|||
|
#20
BOLT, HEX. (6X111)
92000-06111
Superseded by 92101-06111-0A
|
$1.96 | ||
|
Unavailable |
|||
|
#20
BOLT, HEX. (6X111)
92000-06111-0A
Superseded by 92101-06111-0A
|
$1.96 | ||
|
Unavailable |
|||
|
#20
BOLT, HEX. (6X111)
92101-06111-0A
|
$1.96 | ||
|
Unavailable |
|||
|
#21
SCREW, PAN (6X20)
93500-06020
Superseded by 93500-06020-0A
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, PAN (6X20)
93500-06020-0A
|
$1.07 | ||
|
Unavailable |
|||
|
#22
NUT, CAP (6MM)
94021-06000
Superseded by 94021-06020
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, CAP (6MM)
94021-06000-0S
Superseded by 94021-06020
|
$1.90 | ||
|
Unavailable |
|||
|
#22
NUT, CAP (6MM)
94021-06020
|
$1.90 | ||
|
Unavailable |
|||
|
#22
NUT, CAP (6MM)
94021-06020-0S
Superseded by 94021-06020
|
$1.90 | ||
|
Unavailable |
|||
|
#22
NUT, CAP (6MM)
94022-06020
Superseded by 94021-06020
|
$1.90 | ||
|
Unavailable |
|||
|
#23
SPARK PLUG (C6HSA) (NGK)
98056-56711
Superseded by 98056-56713
|
$2.63 | ||
|
Unavailable |
|||
|
#23
SPARK PLUG (C6HSA) (NGK)
98056-56713
|
$2.63 | ||
|
Unavailable |
|||
|
#23
SPARK PLUG (U20FB) (DENSO)
98056-56721
Superseded by 98056-56723
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPARK PLUG (U20FB) (DENSO)
98056-56723
|
$2.43 | ||
|
Unavailable |
|||
|
#23
SPARK PLUG (C7HS) (NGK)
98056-57710
Superseded by 98056-57713
|
$2.63 | ||
|
Unavailable |
|||
|
#23
SPARK PLUG (C7HS) (NGK)
98056-57711
Superseded by 98056-57713
|
$2.63 | ||
|
Unavailable |
|||
|
#23
SPARK PLUG (C7HS) (NGK)
98056-57713
|
$2.63 | ||
|
Unavailable |
|||
|
#23
SPARK PLUG (C7HS) (NGK)
98056-57717
Superseded by 98056-57713
|
$2.63 | ||
|
Unavailable |
|||
|
#23
SPARK PLUG (C7HS) (NGK)
98056-57722
Superseded by 98056-57713
|
$2.63 | ||
|
Unavailable |
|||
|
#23
SPARK PLUG (U22FS-U) (DENSO)
98056-57723
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPARK PLUG (C8HSA) (NGK)
98056-58713
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPARK PLUG (C8HSA) (NGK)
98056-59710
Superseded by 98056-58713
|
$2.70 | ||
|
Unavailable |
|||
|
#23
SPARK PLUG (U22FS-U) (DENSO)
98056-59720
Superseded by 98056-57723
|
$2.43 | ||
|
Unavailable |
|||
