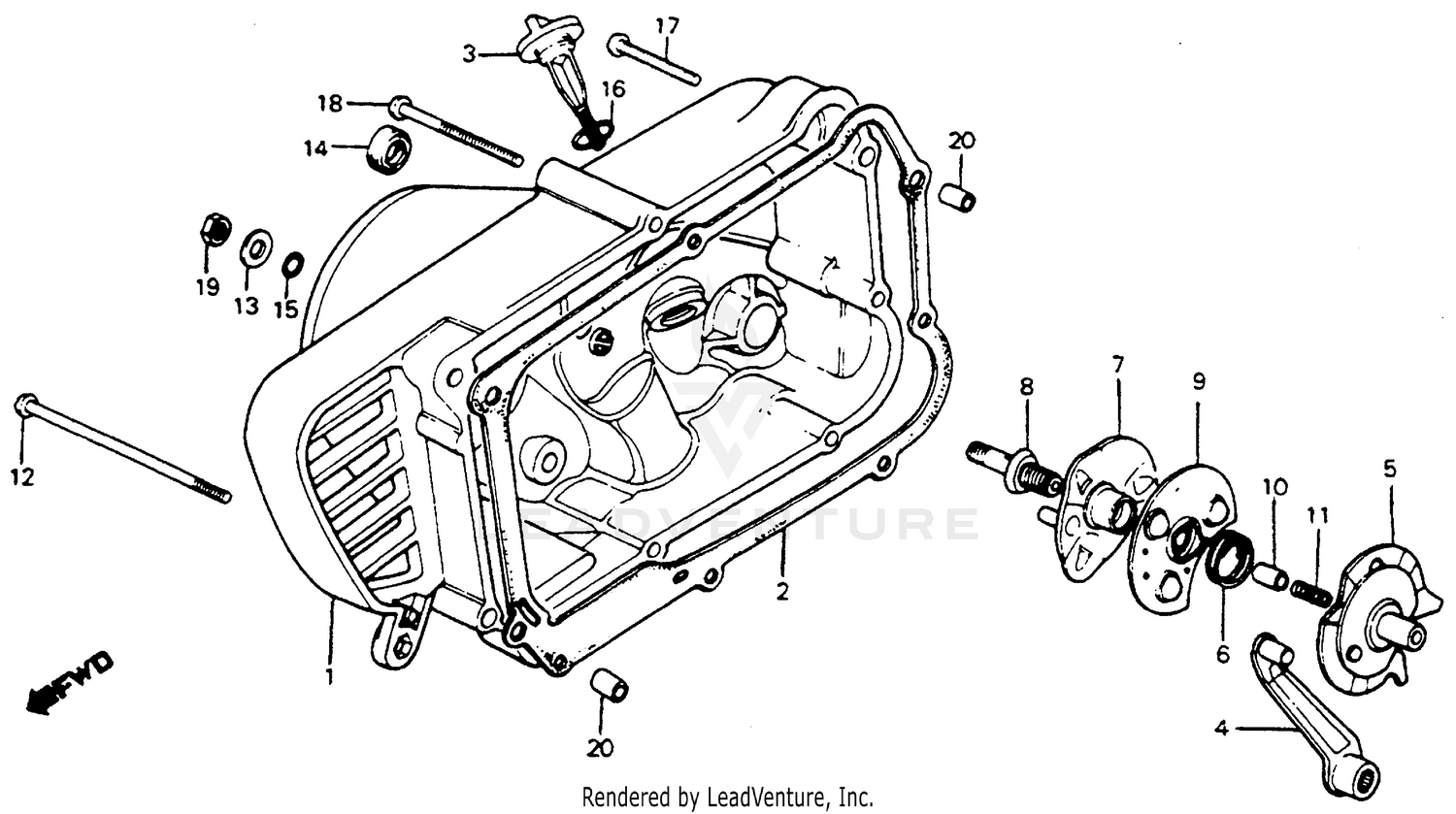

Right Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, R. CRANKCASE (NOT AVAILABLE)
11330-086-020
|
$110.09 | ||
|
Unavailable |
|||
|
#2
GASKET, R. CRANKCASE COVER
11394-GW8-680
Superseded by 11394-GW8-682
|
$16.44 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, R. CRANKCASE COVER
11394-GW8-681
Superseded by 11394-GW8-682
|
$16.44 | ||
|
Unavailable |
|||
|
#2
GASKET, R. CRANKCASE COVER
11394-035-010
Superseded by 11394-GW8-682
|
$16.44 | ||
|
Unavailable |
|||
|
#2
GASKET, R. CRANKCASE COVER
11394-035-306
Superseded by 11394-GW8-682
|
$16.44 | ||
|
Unavailable |
|||
|
#3
DIPSTICK, OIL
15650-KA9-680
|
$9.78 | ||
|
Available to order. Add to View Price |
|||
|
#3
DIPSTICK, OIL
15650-086-000
Superseded by 15650-KA9-680
|
$9.78 | ||
|
Unavailable |
|||
|
#4
LEVER, CLUTCH
22811-040-020
|
$36.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, CLUTCH CAM
22820-918-000
Superseded by 22820-918-020
|
$24.74 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, CLUTCH CAM
22820-918-010
Superseded by 22820-918-020
|
$24.74 | ||
|
Unavailable |
|||
|
#5
PLATE, CLUTCH CAM
22820-918-020
|
$24.74 | ||
|
Unavailable |
|||
|
#6
SPRING, CAM PLATE SIDE
22825-046-000
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, CLUTCH LIFTER
22830-041-000
|
$14.22 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, CLUTCH ADJUSTING
22846-040-010
|
$7.91 | ||
|
Available to order. Add to View Price |
|||
|
#9
RETAINER, CLUTCH BALL
22860-046-000
|
$8.84 | ||
|
Available to order. Add to View Price |
|||
|
#10
THROUGH, OIL
25551-918-000
Superseded by 25551-GEL-A80
|
$7.34 | ||
|
Available to order. Add to View Price |
|||
|
#10
THROUGH, OIL
25551-918-007
Superseded by 25551-GEL-A80
|
$7.34 | ||
|
Unavailable |
|||
|
#11
SPRING, OIL THROUGH
25555-065-000
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, PAN (6X113) (NOT AVAILABLE)
90084-086-790
|
$2.99 | ||
|
Unavailable |
|||
|
#13
WASHER (8MM)
90485-040-000
|
$2.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
OIL SEAL (14X24X5)
91202-KFL-841
|
$6.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
OIL SEAL (14X24X5)
91202-216-003
Superseded by 91202-KFL-841
|
$6.33 | ||
|
Unavailable |
|||
|
#14
OIL SEAL (14X24X5)
91202-302-000
Superseded by 91202-KFL-841
|
$6.33 | ||
|
Unavailable |
|||
|
#14
OIL SEAL (14X24X5)
91202-302-010
Superseded by 91202-KFL-841
|
$6.33 | ||
|
Unavailable |
|||
|
#14
OIL SEAL (14X24X5)
91205-HB2-771
Superseded by 91202-KFL-841
|
$6.33 | ||
|
Unavailable |
|||
|
#14
OIL SEAL (14X24X5)
91205-HB2-772
Superseded by 91202-KFL-841
|
$6.33 | ||
|
Unavailable |
|||
|
#14
OIL SEAL (14X24X5)
91205-035-303
Superseded by 91202-KFL-841
|
$6.33 | ||
|
Unavailable |
|||
|
#15
O-RING (8X1.7) (ARAI)
91303-001-000
Superseded by 91306-HB3-003
|
$2.16 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING (8X1.7) (ARAI)
91306-HB3-003
|
$2.16 | ||
|
Unavailable |
|||
|
#16
O-RING (18X3) (ARAI)
91307-KF0-003
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING (18X3)
91307-035-000
|
$3.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
SCREW, PAN (6X40)
93500-06040
Superseded by 93500-06040-0A
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, PAN (6X40)
93500-06040-0A
|
$1.48 | ||
|
Unavailable |
|||
|
#18
SCREW, PAN (6X70)
93500-06070
Superseded by 93500-06070-0A
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, PAN (6X70)
93500-06070-0A
|
$1.25 | ||
|
Unavailable |
|||
|
#19
NUT, HEX. (8MM)
94030-08000
|
$1.12 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN A, DOWEL (8X12)
94301-08120
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
