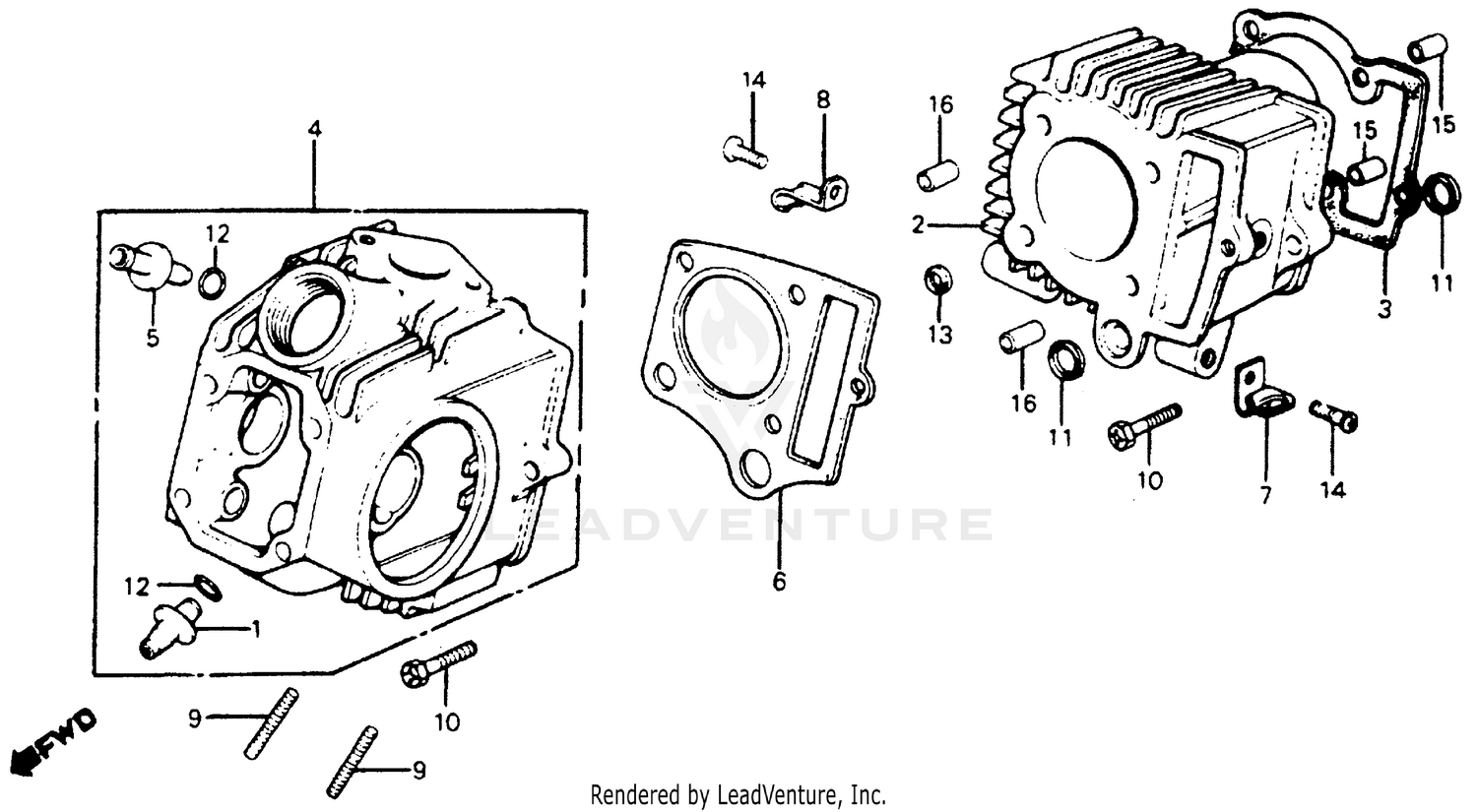

Cylinder + Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GUIDE, EX. VALVE
12023-051-320
|
$11.46 | ||
|
Unavailable |
|||
|
#2
CYLINDER
12101-GB0-910
|
$243.18 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER
12101-087-010
Superseded by 12101-GB0-910
|
$243.18 | ||
|
Unavailable |
|||
|
#3
GASKET, CYLINDER
12191-GB2-004
Superseded by 12191-GW8-683
|
$10.75 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, CYLINDER
12191-GB2-306
Superseded by 12191-GW8-683
|
$10.75 | ||
|
Unavailable |
|||
|
#3
GASKET, CYLINDER
12191-GW8-681
Superseded by 12191-GW8-683
|
$10.75 | ||
|
Unavailable |
|||
|
#3
GASKET, CYLINDER
12191-GW8-682
Superseded by 12191-GW8-683
|
$10.75 | ||
|
Unavailable |
|||
|
#3
GASKET, CYLINDER
12191-118-670
Superseded by 12191-GW8-683
|
$10.75 | ||
|
Unavailable |
|||
|
#4
CYLINDER HEAD (NOT AVAILABLE)
12200-178-000
Superseded by 12200-178-305
|
$143.19 | ||
|
Unavailable |
|||
|
#4
CYLINDER HEAD (NOT AVAILABLE)
12200-178-305
|
$143.19 | ||
|
Unavailable |
|||
|
#5
GUIDE, IN./EX. VALVE
12023-051-405
Superseded by 12021-128-405
|
$21.71 | ||
|
Available to order. Add to View Price |
|||
|
#5
GUIDE, IN./EX. VALVE
12231-178-305
Superseded by 12021-128-405
|
$21.71 | ||
|
Unavailable |
|||
|
#6
GASKET, CYLINDER HEAD
12251-111-505
|
$15.47 | ||
|
Unavailable |
|||
|
#6
GASKET, CYLINDER HEAD
12251-111-730
Superseded by 12251-111-505
|
$15.47 | ||
|
Unavailable |
|||
|
#6
GASKET, CYLINDER HEAD
12251-111-731
Superseded by 12251-111-505
|
$15.47 | ||
|
Unavailable |
|||
|
#7
CLAMP B, BREATHER TUBE (NOT AVAILABLE)
17236-174-670
|
$4.51 | ||
|
Unavailable |
|||
|
#8
CLIP, IGNITION WIRE
32906-061-000
|
$5.84 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, STUD (6X32)
90033-041-010
Superseded by 90033-041-020
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, STUD (6X32)
90033-041-020
|
$2.56 | ||
|
Unavailable |
|||
|
#10
BOLT (6MM)
90082-035-000
Superseded by 90082-035-010
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT (6MM)
90082-035-010
|
$2.73 | ||
|
Unavailable |
|||
|
#11
GASKET, RUBBER (16MM)
91303-035-000
|
$6.13 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING (9X1.6) (ARAI)
91305-028-158
Superseded by 91305-028-900
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING (9X1.6) (ARAI)
91305-028-900
|
$3.40 | ||
|
Unavailable |
|||
|
#13
GASKET, RUBBER (9MM)
91306-035-000
Superseded by 91306-141-000
|
$5.84 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET, RUBBER (9MM)
91306-141-000
|
$5.84 | ||
|
Unavailable |
|||
|
#14
SCREW, PAN (6X20)
93500-06020
Superseded by 93500-06020-0A
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, PAN (6X20)
93500-06020-0A
|
$1.07 | ||
|
Unavailable |
|||
|
#15
PIN A, DOWEL (8X12)
94301-08120
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, DOWEL (8X14)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
