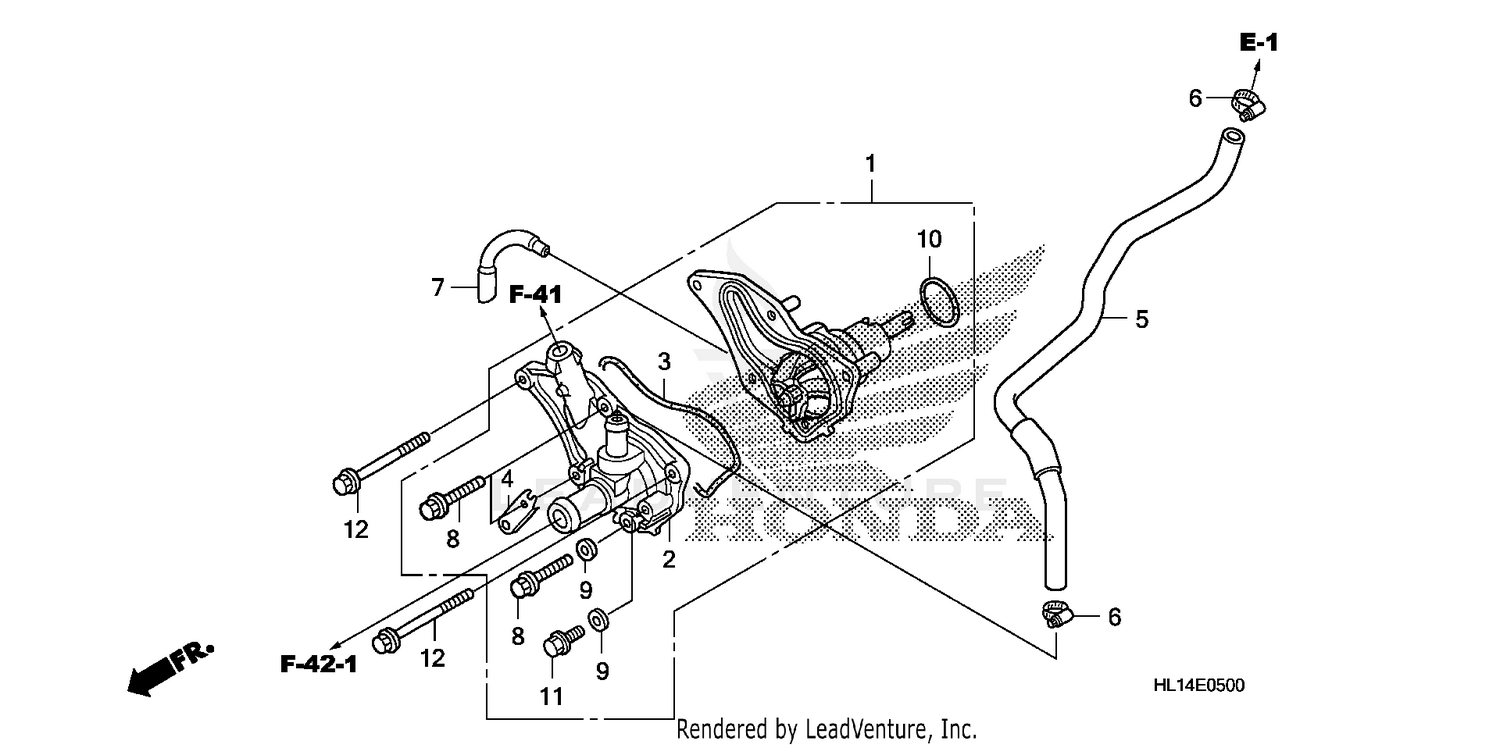

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WATER PUMP
19200-HN8-A60
|
$288.96 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, WATER PUMP
19220-HN8-A60
|
$97.40 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, WATER PUMP COVER
19226-HN8-000
|
$11.42 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLAMP, HOSE
19271-HN8-A60
|
$3.56 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOSE B, WATER
19502-HL1-A00
|
$41.44 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLAMP, WATER HOSE
19506-KA4-000
|
$11.13 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE, DRAIN
19507-HN8-010
|
$23.93 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE (6X22)
90003-HN8-003
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SEALING (6.5MM)
90412-HN8-003
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING (32.95X2.62) (ARAI)
91302-MB0-013
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X12)
95701-06012-08
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X45)
95701-06045-00
Superseded by 95701-06045-07
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X45)
95701-06045-07
|
$2.27 | ||
|
Unavailable |
|||
