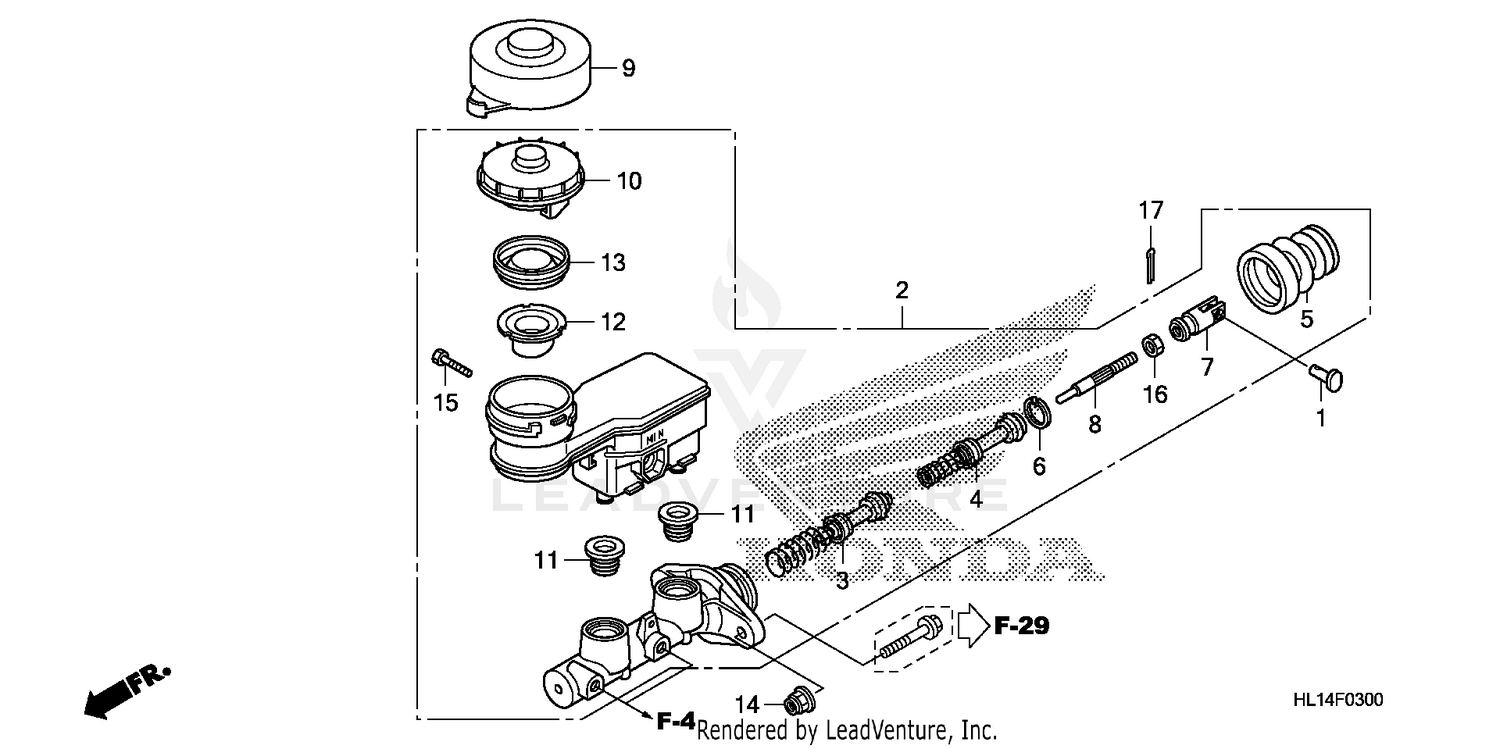

Front Brake Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIN, JOINT BRAKE
43456-GBZ-000
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#2
MASTER CYLINDER ASSY. (COO)
45500-HL1-305
|
$298.55 | ||
|
Available to order. Add to View Price |
|||
|
#3
PISTON ASSY., PRIMARY
45502-HL1-A01
|
$18.04 | ||
|
Available to order. Add to View Price |
|||
|
#4
PISTON ASSY., SECONDARY
45503-HL1-A01
|
$21.51 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOOT
45504-HL1-A01
|
$9.53 | ||
|
Available to order. Add to View Price |
|||
|
#6
CIRCLIP
45505-HL1-A01
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
YOKE, PUSH ROD
45506-HL1-A01
|
$29.27 | ||
|
Available to order. Add to View Price |
|||
|
#8
ROD, PUSH
45525-HL1-A01
|
$25.13 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, RESERVE TANK CAP
46163-HL1-A00
|
$22.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP, RESERVE TANK
46662-S5A-003
|
$16.47 | ||
|
Available to order. Add to View Price |
|||
|
#11
GROMMET
46665-S04-J01
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#12
FILTER, BRAKE RESERVOIR
46666-S2K-003
|
$10.30 | ||
|
Available to order. Add to View Price |
|||
|
#13
DIAPHRAGM
46669-S5A-003
Superseded by 46669-SCV-A01
|
$11.73 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, FLANGE (8MM)
90309-KF0-003
Superseded by 90309-428-731
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
NUT, FLANGE (M8X1.25) (SELF-LOCK)
90309-428-731
|
$4.20 | ||
|
Unavailable |
|||
|
#15
BOLT, RECESSED (5X25)
92301-05025-0H
|
$1.13 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, HEX. (8MM)
94002-08000-0S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN, SPLIT (2.0X12)
94201-20120
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
