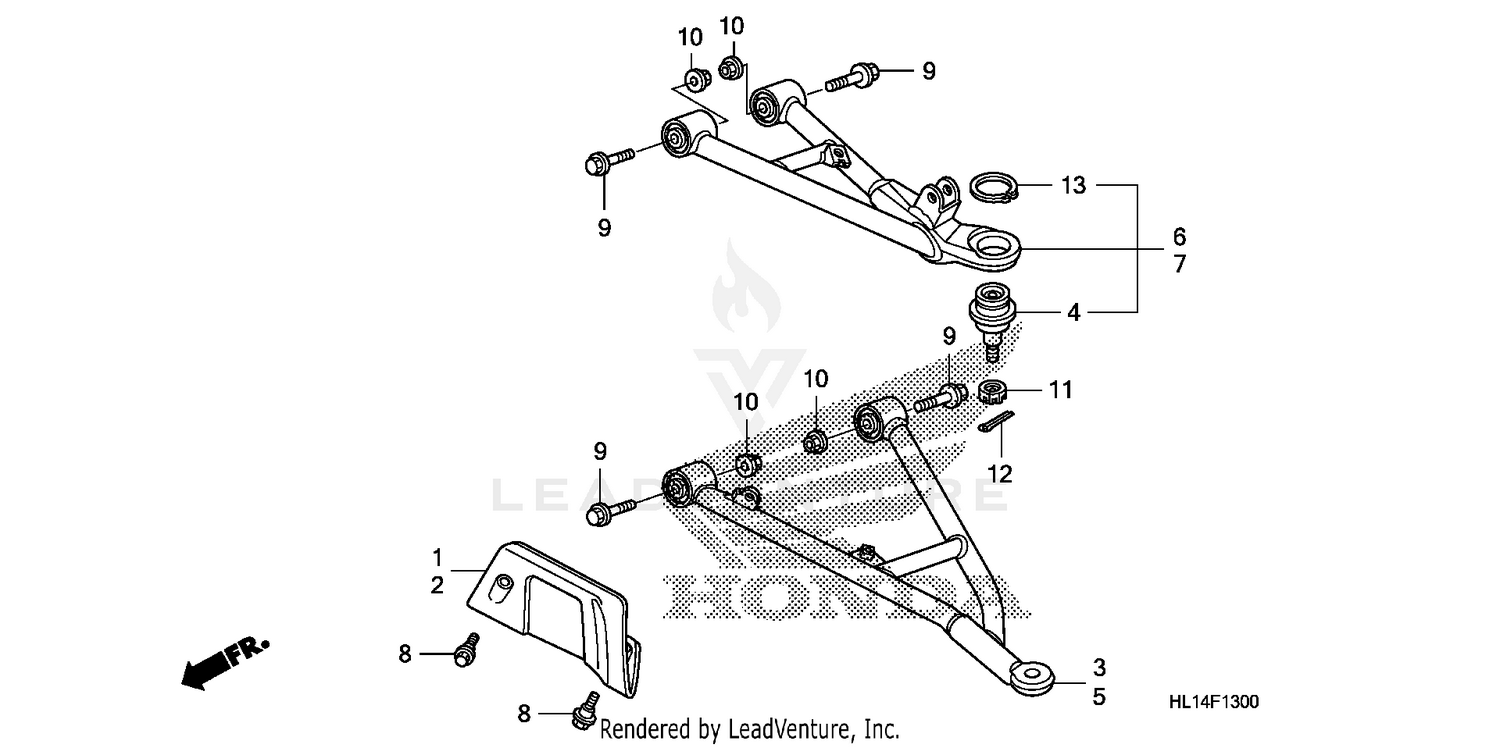

Front Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GUARD, R. FR.
51315-HL1-A00
|
$12.89 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUARD, L. FR.
51316-HL1-A00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
ARM ASSY., R. FR. (LOWER)
51350-HL1-A00
|
$339.24 | ||
|
Available to order. Add to View Price |
|||
|
#4
JOINT A, ARM BALL
51355-HL1-A01
|
$76.80 | ||
|
Available to order. Add to View Price |
|||
|
#5
ARM ASSY., L. FR. (LOWER)
51360-HL1-A00
|
$361.62 | ||
|
Available to order. Add to View Price |
|||
|
#6
ARM ASSY., R. FR. (UPPER)
51370-HL1-A00
|
$578.04 | ||
|
Available to order. Add to View Price |
|||
|
#7
ARM ASSY., L. FR. (UPPER)
51380-HL1-A00
|
$456.51 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE (6MM)
90111-KT1-780
|
$17.62 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (12X70)
90122-HL1-A00
|
$5.33 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, SELF-LOCK (12MM)
90305-HC4-000
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, CASTLE (12MM)
90363-SF1-000
|
$11.48 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, COTTER (3.0X45)
94201-30200
Superseded by 94201-30450
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, COTTER (3.0X45)
94201-30250
Superseded by 94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#12
PIN, COTTER (3.0X45)
94201-30280
Superseded by 94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#12
PIN, COTTER (3.0X45)
94201-30300
Superseded by 94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#12
PIN, COTTER (3.0X45)
94201-30400
Superseded by 94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#12
PIN, SPLIT (3.0X45)
94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#13
CIRCLIP (OUTER) (38MM)
94514-38000
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
