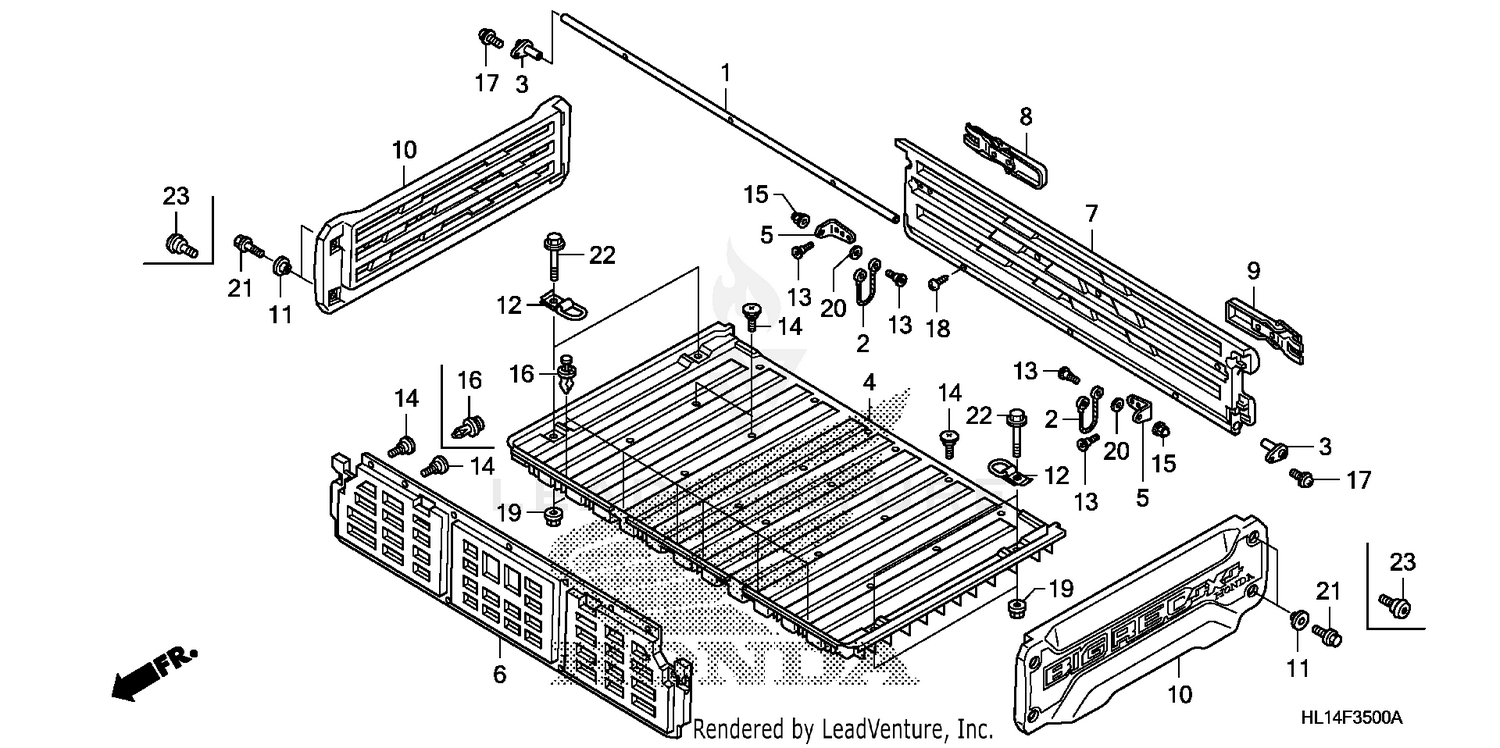

Bed Plate + Rear Gate Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HINGE, RR. GATE
81503-HL1-A00
|
$174.89 | ||
|
Available to order. Add to View Price |
|||
|
#2
WIRE, RR. GATE STOPPER
81504-HL1-A00
|
$10.85 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET, RR. GATE HINGE
81505-HL1-A20
|
$7.33 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, BED TOP
81507-HL1-A00
|
$312.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET, RR. GATE LOCK
81508-HL1-A00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, FR. BED
81520-HL1-A50
|
$299.25 | ||
|
Available to order. Add to View Price |
|||
|
#7
GATE, RR. *NH1* (BLACK)
81530-HL1-A00ZB
|
$644.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
LOCK, R. RR. GATE
81531-HL1-A00
|
$99.18 | ||
|
Available to order. Add to View Price |
|||
|
#9
LOCK, L. RR. GATE
81532-HL1-A00
|
$99.15 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER SET, BED SIDE *YR252R* (WL) (SANDSTONE BEIGE R)
81565-HL1-A60ZA
|
$329.84 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER SET, BED SIDE *YR252R* (WL) (SANDSTONE BEIGE R)
81565-HL1-A60ZB
Superseded by 81565-HL1-A60ZA
|
$329.84 | ||
|
Unavailable |
|||
|
#12
HOOK ASSY., TIE DOWN
84614-S06-000
|
$14.00 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, SPECIAL (6X8)
90102-HN5-670
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, SPECIAL (6MM)
90103-HF1-670
|
$7.64 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, CAP (6MM)
90201-415-000
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP, SPLASH GUARD
90653-HC4-900
|
$0.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
SCREW-WASHER (6X12)
93891-06012-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, TAPPING (5X16)
93903-25310
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
WASHER, PLAIN (6MM)
94103-06700
|
$0.75 | ||
|
Unavailable |
|||
|
#22
BOLT, FLANGE (6X55)
95701-06055-07
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, GRIP END
90109-HP1-000
|
$2.31 | ||
|
Available to order. Add to View Price |
|||
