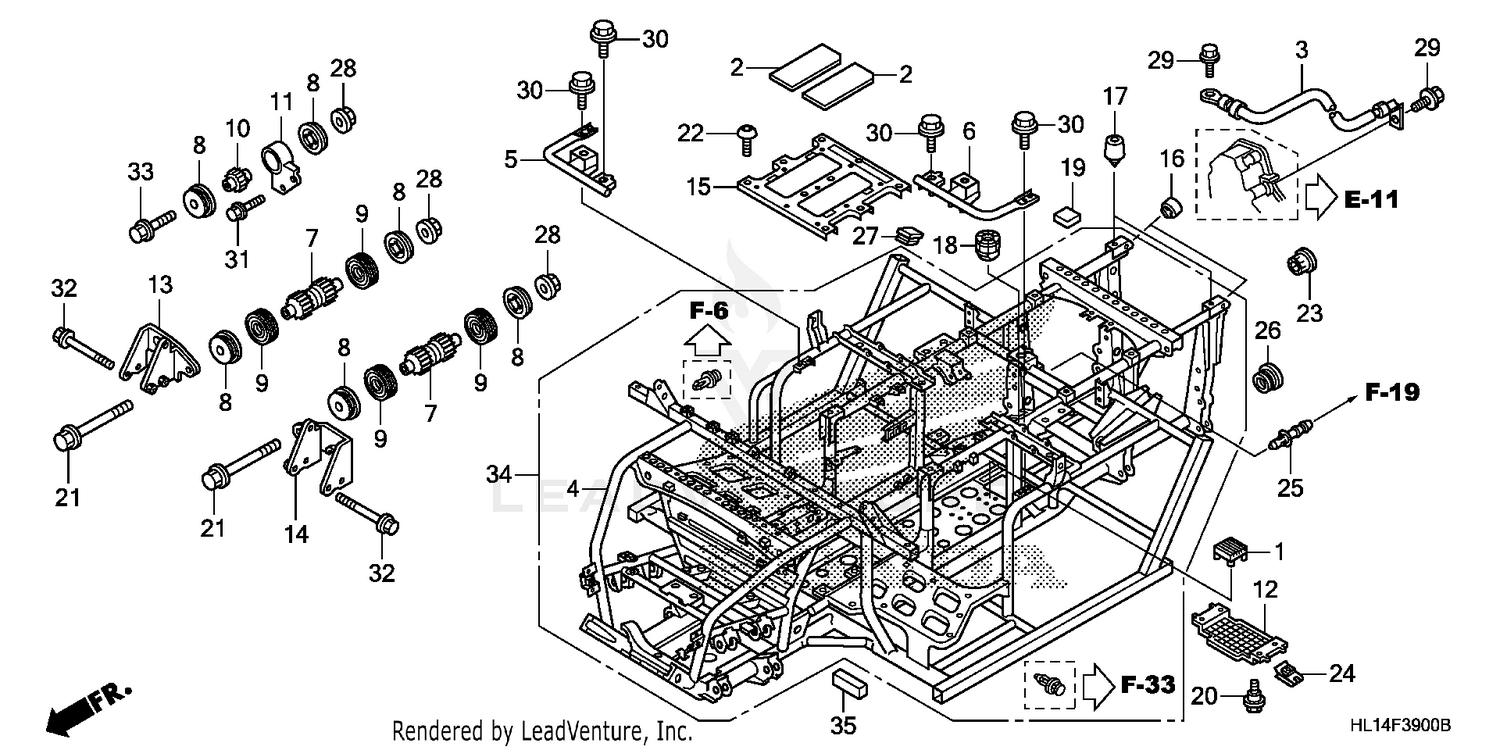

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CUSHION, RR. FUEL TANK
17612-MCL-000
|
$15.95 | ||
|
Available to order. Add to View Price |
|||
|
#2
RUBBER, SHEET
31514-SDA-A01
|
$8.87 | ||
|
Available to order. Add to View Price |
|||
|
#3
CABLE, GROUND
32603-HL1-A20
|
$4.07 | ||
|
Available to order. Add to View Price |
|||
|
#4
FRAME *NH1* (BLACK)
50100-HL1-306ZA
|
$3,076.53 | ||
|
Available to order. Add to View Price |
|||
|
#4
FRAME *NH1* (BLACK)
50100-HL1-A50ZA
Superseded by 50100-HL1-306ZA
|
$3,076.53 | ||
|
Unavailable |
|||
|
#5
PIPE, R. SEAT MOUNTING (LOWER)
50230-HL1-A20
|
$107.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIPE, L. SEAT MOUNTING (LOWER)
50240-HL1-A20
|
$107.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
RUBBER, ENGINE MOUNTING (LOWER)
50301-HN8-003
|
$29.76 | ||
|
Available to order. Add to View Price |
|||
|
#8
RUBBER C, MOUNTING
50302-HL1-A01
|
$9.33 | ||
|
Available to order. Add to View Price |
|||
|
#9
DUST SEAL, ENGINE MOUNTING
50303-HN8-000
|
$11.09 | ||
|
Available to order. Add to View Price |
|||
|
#10
RUBBER, ENGINE HEAD MOUNTING
50305-HN8-003
|
$14.04 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET, HEAD HANGER
50353-HL1-A00
|
$70.59 | ||
|
Available to order. Add to View Price |
|||
|
#12
GUARD, ENGINE
50360-HL1-A00
|
$13.89 | ||
|
Available to order. Add to View Price |
|||
|
#13
HANGER, R. ENGINE (LOWER)
50362-HL1-A00
|
$9.45 | ||
|
Available to order. Add to View Price |
|||
|
#14
HANGER, L. ENGINE (LOWER)
50363-HL1-A00
|
$9.45 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE, FLOOR CROSS
50370-HL1-A00
|
$192.44 | ||
|
Available to order. Add to View Price |
|||
|
#16
RUBBER, STAND STOPPER
50524-KBW-900
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#17
RUBBER A, SEAT CUSHION
77204-128-000
|
$9.55 | ||
|
Available to order. Add to View Price |
|||
|
#18
CUSHION, SEAT MOUNTING
77207-HA0-000
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#19
RUBBER, BED MOUNTING
81593-HL1-A00
|
$2.82 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6MM)
90111-197-890
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (10X145)
90115-HM8-003
|
$8.27 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, SOCKET (8X16)
90128-MEJ-J00
|
$3.24 | ||
|
Available to order. Add to View Price |
|||
|
#23
CAP, R. SWINGARM PIVOT
90302-MN4-781
|
$14.16 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, CLIP (6MM)
90305-SM4-003
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#25
JOINT, BREATHER TUBE
90652-HF7-003
|
$11.53 | ||
|
Available to order. Add to View Price |
|||
|
#26
CAP, PIPE END (2")
90863-HL1-A00
|
$6.87 | ||
|
Available to order. Add to View Price |
|||
|
#27
CAP, SQUARE PIPE END (1-1/2")
90877-HL1-A00
|
$3.56 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT, FLANGE (10MM)
94050-10000
|
$1.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
BOLT, FLANGE (6X12)
95701-06012-00
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
BOLT, FLANGE (8X16)
95701-08016-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE (8X25)
95701-08025-00
|
$2.04 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE (8X85)
95701-08085-00
|
$2.98 | ||
|
Unavailable |
|||
|
#33
BOLT, FLANGE (10X65)
95701-10065-00
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#35
SEAL, BRAKE PEDAL MOUNTING
90883-HL1-A20
|
$4.56 | ||
|
Available to order. Add to View Price |
|||
