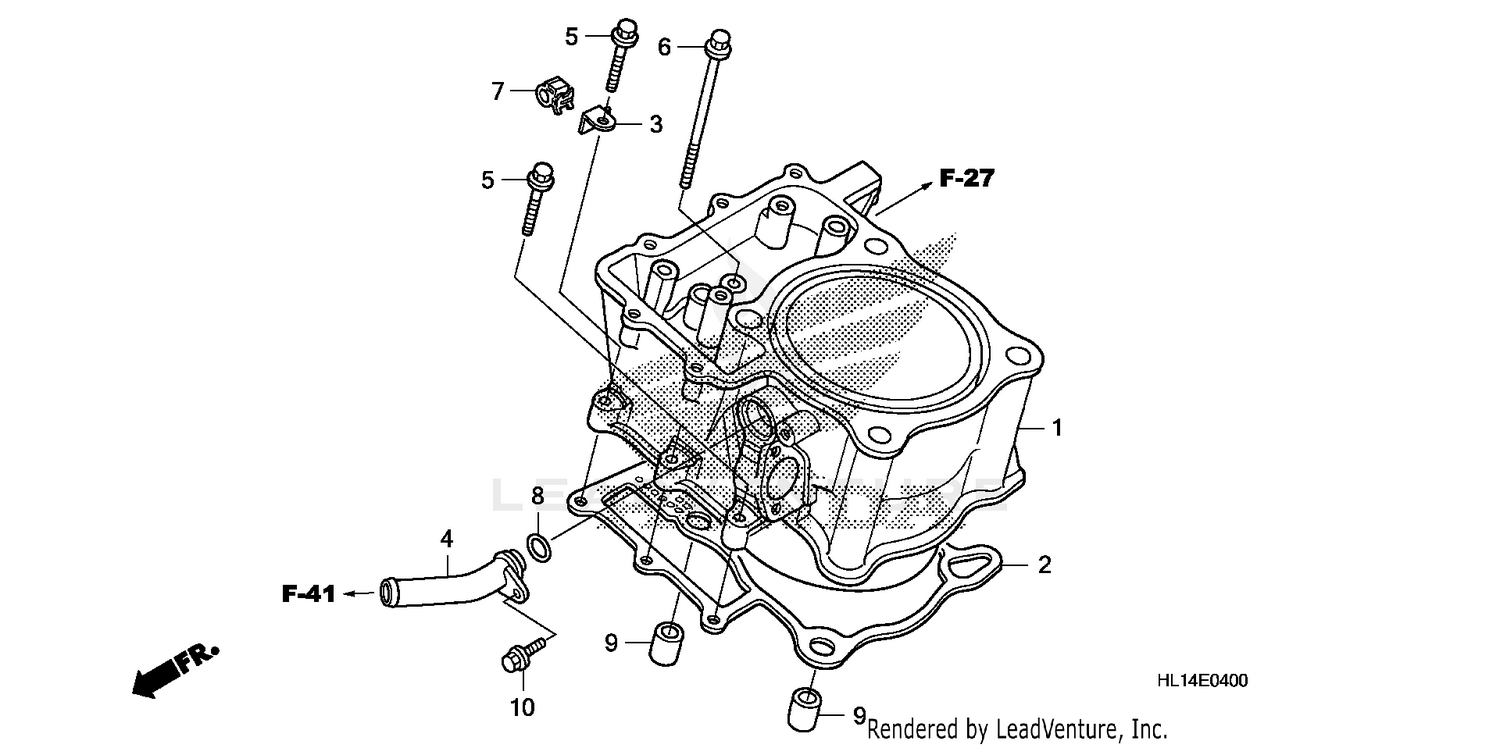

Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER
12100-HN8-A60
|
$477.62 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, CYLINDER
12191-HN8-000
|
$25.05 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLATE, CABLE
16230-HN8-000
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#4
JOINT, WATER
19523-HL1-A00
|
$22.93 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE (6X28) (NSHF)
90004-GHB-680
|
$4.18 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE (6X85) (NSHF)
90004-GHB-800
|
$3.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
CLIP, CABLE (10MM)
90690-GHB-641
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING (17.4X2.9)
91304-HN8-003
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN A, DOWEL (12X16)
94301-12160
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (6X14)
95701-06014-00
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
