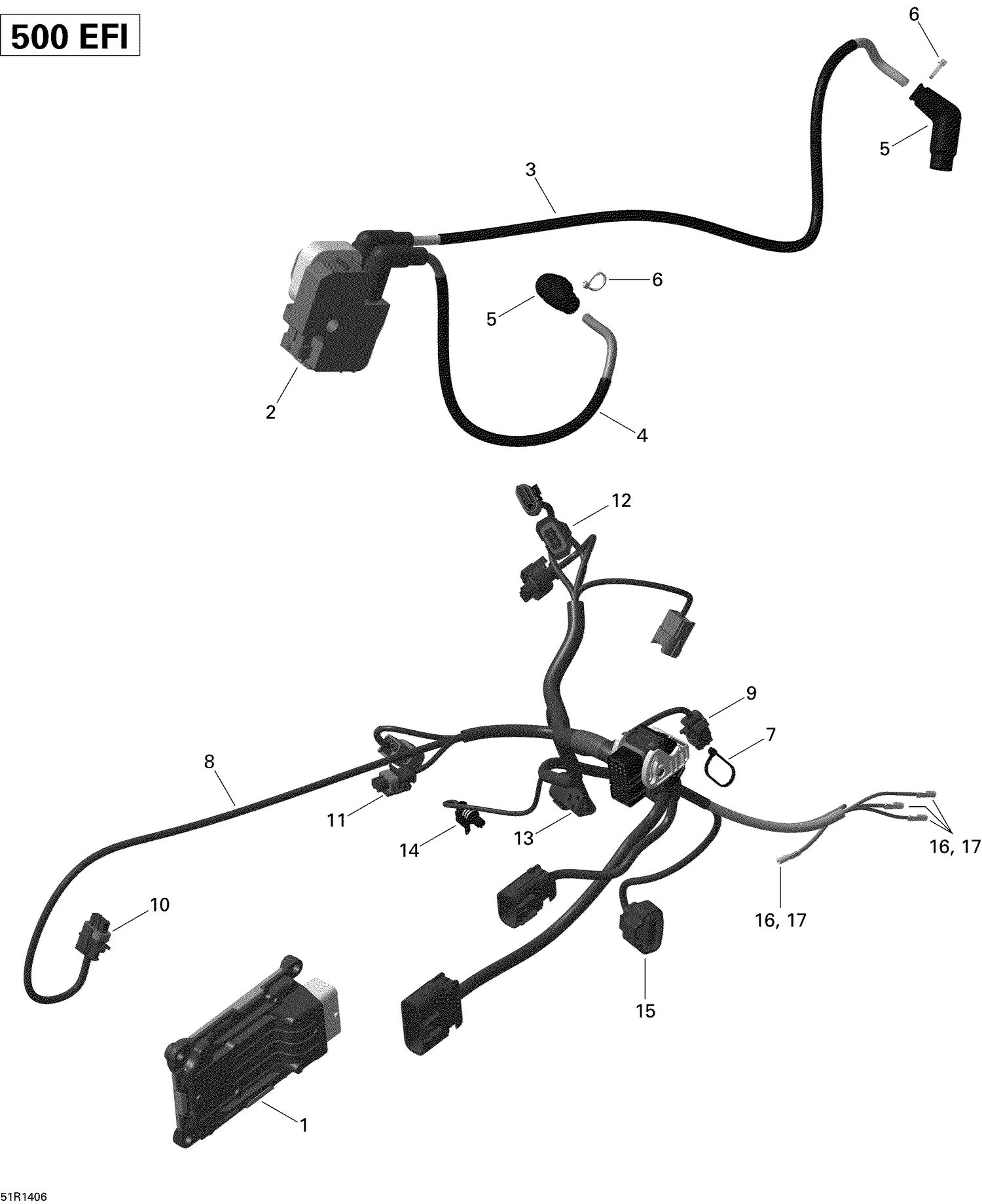

10- Engine Harness And Electronic Module Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ECM Connector
420264950
|
$1,189.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
ECM, Engine Control Module - Call Your Local BRP Dealership
420264952
|
$1,149.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Ignition Coil
278001546
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Spark Plug Cable, 790 mm, Rear
420665330
Superseded by 420665333
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Spark Plug Cable, 790 mm, Rear
420664300
Superseded by 420665333
|
$61.99 | ||
|
Unavailable |
|||
|
#5
Spark Plug Connector
420265248
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Tie Rap
420866710
|
$5.59 | ||
|
Available to order. Add to View Price |
|||
|
#7
Tie Wrap 94 mm
293750001
|
$1.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
Engine Wiring Harness
420665908
Superseded by 420666571
|
$439.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Male Housing, 2 Circuits
278001005
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
Male Housing, 3 Circuits
278000997
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
Male Housing, 2 Circuits
278001005
|
$19.49 | ||
|
Unavailable |
|||
|
#12
Housing Connector, 3 Circuits
278001829
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Male Housing
409207000
Superseded by 278002378
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
Male Housing, 1 Circuit
278001012
|
$17.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
Male Housing, 4 Circuits
710000329
|
$15.36 | ||
|
Available to order. Add to View Price |
|||
|
#16
Female Terminal
278001009
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#17
Insulated Sheath
278001007
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
