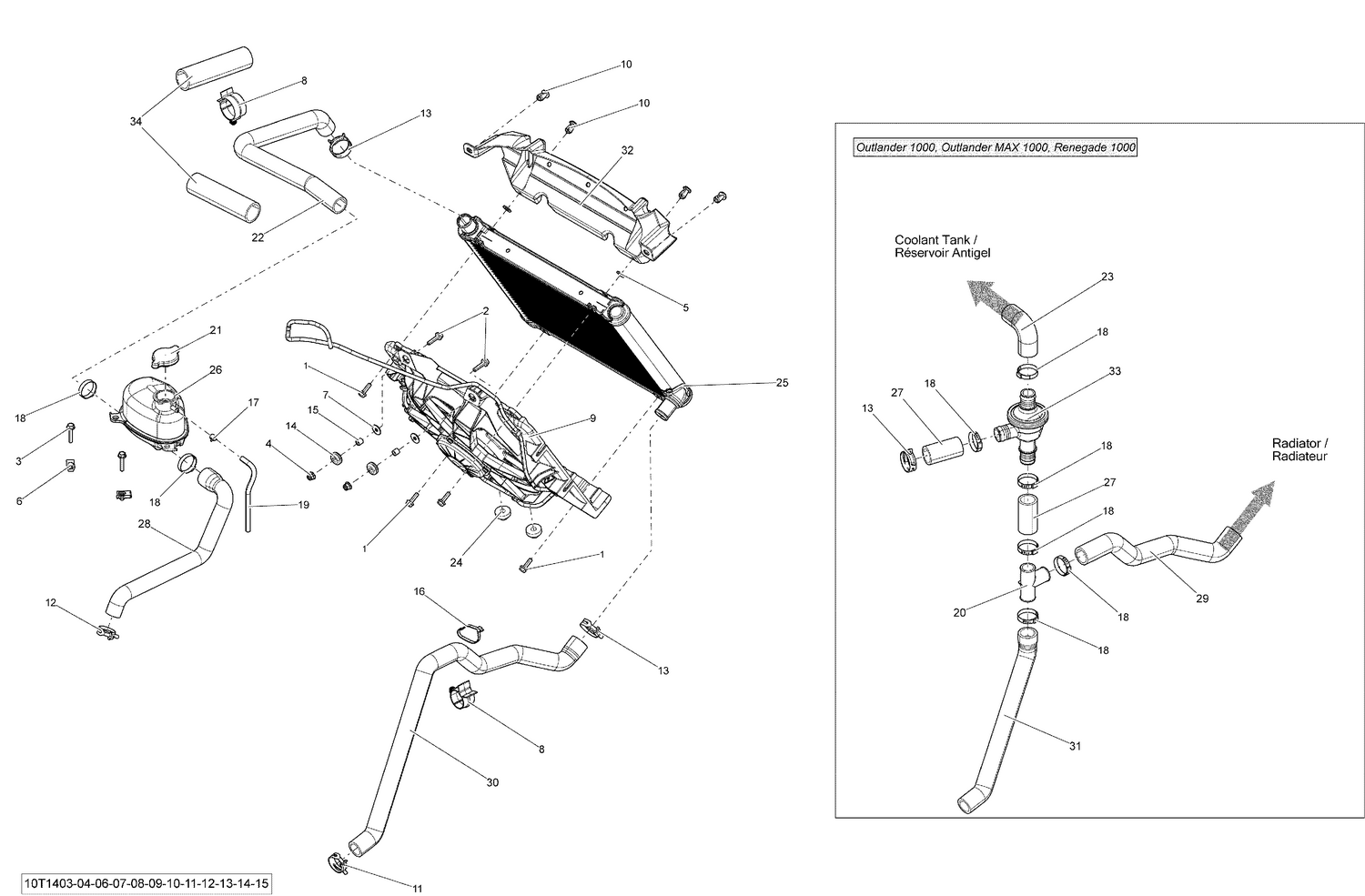

01- Cooling System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Hex. Flange Screw M6 X 20
207662034
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#2
Hex. Flange Screw M6 X 25
207662534
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#3
Hex. Flange Screw M6 X 30, Scotch Grip
207663034
Superseded by 207563034
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
Flange Elastic Nut M6
233261434
|
$4.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
Flat Washer 8 mm
234081410
|
$0.82 | ||
|
Available to order. Add to View Price |
|||
|
#6
Panel Nut M6 X 1.0
250000048
Superseded by 250100198
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
Flat Washer
250200082
|
$0.44 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
Retainer
275500590
|
$9.69 | ||
|
Available to order. Add to View Price |
|||
|
#8
Retainer
275500590
|
$9.69 | ||
|
Unavailable |
|||
|
#9
Fan Ass'y
709200488
Superseded by 709200563
|
$249.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
Tuflok Plastic Rivet
293150089
Superseded by 293150230
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
Norma Spring Clamp
293650108
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#12
Norma Spring Clamp
293650109
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#13
Norma Spring Clamp
293650166
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
Grommet
293720053
Superseded by 709000582
|
$4.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
Bushing
293900105
|
$7.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#17
Spring Clamp
414554800
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#18
Gear Clamp
509000162
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
Polyurethane Hose 10000Mm Long
219704410
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#21
Radiator Pressure Cap
709200207
|
$25.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
Radiator Inlet Hose
709200278
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#24
Grommet
709200285
|
$9.89 | ||
|
Available to order. Add to View Price |
|||
|
#25
Radiator
709200286
|
$476.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
Coolant Tank
709200297
|
$55.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#28
Engine Outlet Hose
709200310
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#30
Radiator Outlet Hose
709200391
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#32
Air Deflector
709200393
|
$15.87 | ||
|
Available to order. Add to View Price |
|||
|
#33
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#34
Tubing 35 MM 1000MM Long
219704428
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
