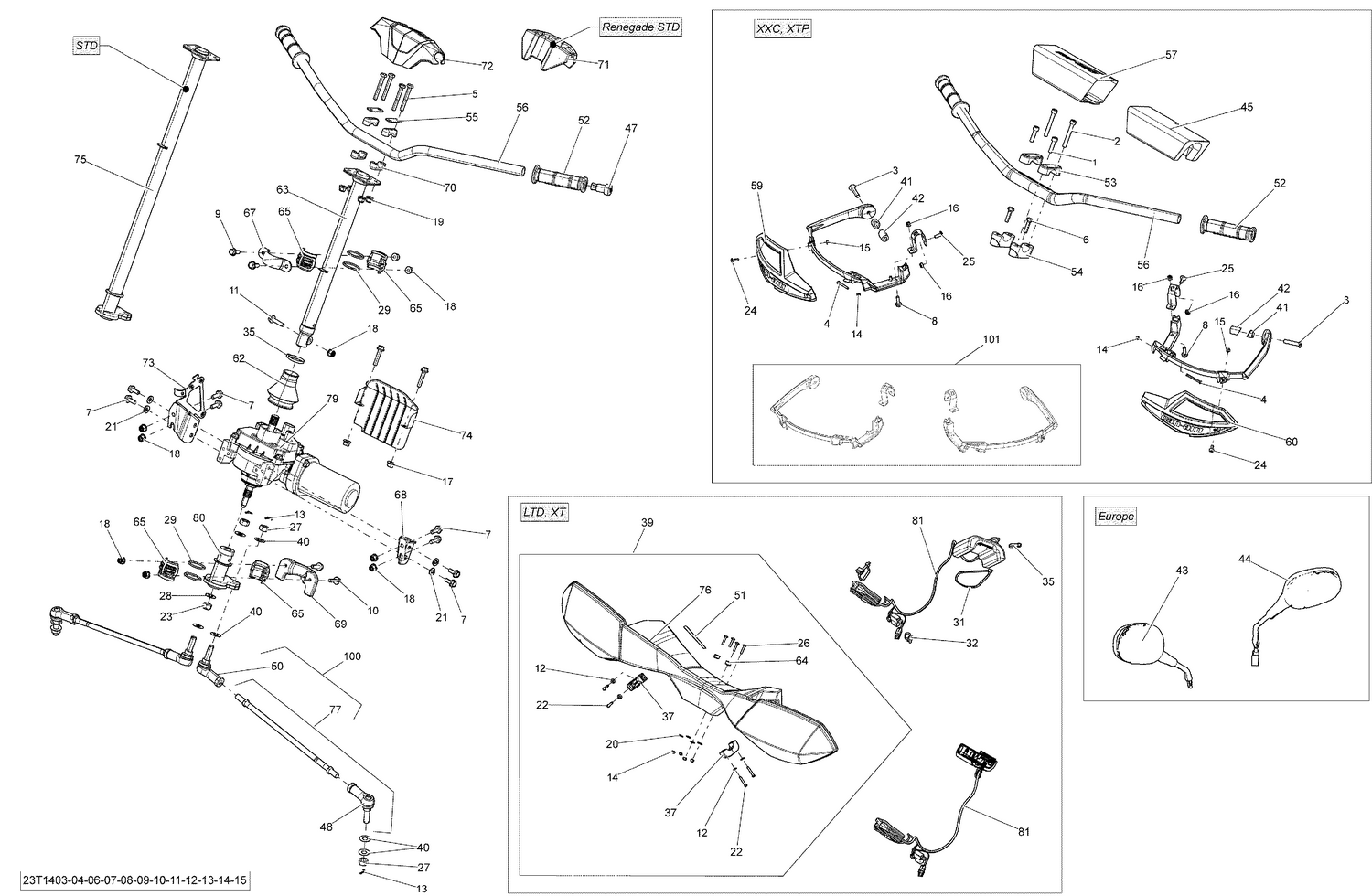

07- Steering Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#2
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#3
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#4
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#5
Hex. Screw M8 X 60
207086046
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#6
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#7
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#9
Hex. Flange Screw M8 X 20
207682044
|
$1.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
Hex. Flange Screw M8 X 25
207682544
|
$1.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
Hex. Flange Screw M8 X 35
207683544
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#12
Flat Washer
211200035
|
$0.57 | ||
|
Available to order. Add to View Price |
|||
|
#13
Cotter Pin
211400013
|
$0.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#15
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#16
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#17
Hex. Flange Nut M8
233081416
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#18
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
Hex. Elastic Flange Nut M8
233281416
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#21
Conical Spring Washer M8
234281474
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
Hex. Flange Screw K40 X 25
241142560
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#23
Hex. Flange Elastic Nut M12
250000047
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#25
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#26
TORX SCREW M4 X 20 - Call your local BRP dealership
250000405
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Nut M12
250100099
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#28
Hardened Washer
250200086
Superseded by 706200281
|
$2.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
O-Ring
293300068
|
$7.79 | ||
|
Available to order. Add to View Price |
|||
|
#31
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#32
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#35
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#37
U-Clamp
517303264
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
Handle Guard Ass'y, XT
703100352
|
$98.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
Hardened Washer
250200086
Superseded by 706200281
|
$2.89 | ||
|
Unavailable |
|||
|
#41
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#42
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#43
LH Mirror
709400406
|
$33.99 | ||
|
Unavailable |
|||
|
#44
RH Mirror
709400523
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#47
End Piece
709400449
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#48
LH Ball Joint
709400486
Superseded by 709402303
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
RH Ball Joint
709400490
Superseded by 709402302
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
DPS Decal
704902966
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#52
Handle Grip
709400493
|
$14.83 | ||
|
Available to order. Add to View Price |
|||
|
#53
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#54
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#55
Stiffner
709400509
|
$4.79 | ||
|
Available to order. Add to View Price |
|||
|
#56
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#56
Black, Handlebar
709401240
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#57
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#59
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#60
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#62
Bellows
709400674
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#63
Kit Tube-Main.
709400703
Superseded by 703501137
|
$184.99 | ||
|
Available to order. Add to View Price |
|||
|
#64
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#65
Spherical Half Bushing
709400783
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#67
Upper Column Attachment
709400827
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#68
Power Steering Module Bracket
709400848
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#69
Column Attachment
709400912
Superseded by 709401428
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#70
Steering Support
709400919
|
$22.49 | ||
|
Available to order. Add to View Price |
|||
|
#71
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#72
Cover
709400939
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#73
RH STEERING BRACKET - Call your local BRP dealership
709400994
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#74
HEAT DEFLECTOR - Call your local BRP dealership
709401005
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#75
Main Tube
709401008
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#76
Handle Bar Protector
709400822
|
$90.99 | ||
|
Available to order. Add to View Price |
|||
|
#77
Tie Rod Ass`y
703500783
Superseded by 703501038
|
$96.49 | ||
|
Available to order. Add to View Price |
|||
|
#79
Power Steering
709401182
Superseded by 709401608
|
$1,010.49 | ||
|
Available to order. Add to View Price |
|||
|
#80
Lower Steering Tube, Black
709401320
|
|||
|
Available to order. Add to View Price |
|||
|
#81
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#100
Tie Rod Ass`y
703500783
Superseded by 703501038
|
$96.49 | ||
|
Unavailable |
|||
|
#101
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
