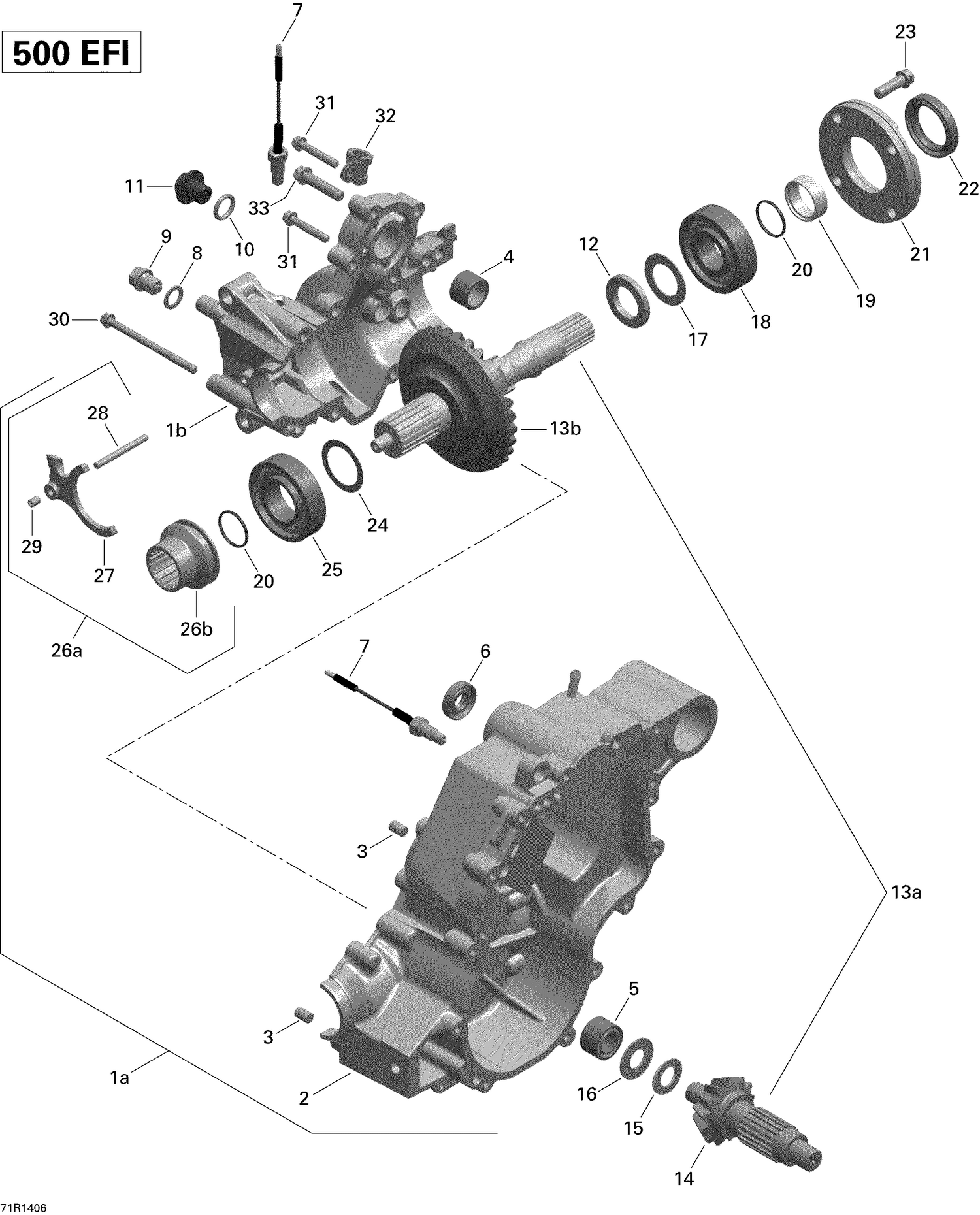

01- Gear Box Output Shaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1a
Gear Housing Ass'y
420686205
|
$929.99 | ||
|
Available to order. Add to View Price |
|||
|
#1b
Not Available As Spare Part - Gear Housing, Right
|
|||
|
Unavailable |
|||
|
#2
Not Available As Spare Part - Gear Housing, Center
|
|||
|
Unavailable |
|||
|
#3
Center Pin 8 X 12
420632010
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#4
Needle Bushing
420832240
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Needle Bushing
420232085
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Oil Seal
420250450
|
$17.04 | ||
|
Available to order. Add to View Price |
|||
|
#7
Contact Screw M10 Ass'y With Cable
420640192
|
$42.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
Copper Washer
420250640
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
Magnetic Drain Plug M12
420241786
Superseded by 420241787
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-Ring
420650350
|
$12.11 | ||
|
Available to order. Add to View Price |
|||
|
#11
Plug Screw M14 X 1.5
420241660
Superseded by 420241662
|
$15.81 | ||
|
Available to order. Add to View Price |
|||
|
#12
Distance Ring
420247770
Superseded by 420247772
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#13a
Drive Ass'y
420635552
Superseded by 420635557
|
$444.99 | ||
|
Available to order. Add to View Price |
|||
|
#13b
Not Available As Spare Part - Drive Shaft
|
|||
|
Unavailable |
|||
|
#14
Not Available As Spare Part - Bevel Gear, 13 Teeth
|
|||
|
Unavailable |
|||
|
#15
Axial Needle Bearing
420632300
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
Thrust Washer Set, MAG Side
420281306
|
$61.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
Washer Thrust Set
420281312
Superseded by 420281300
|
$95.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
Ball Bearing
420932825
Superseded by 420932822
|
$30.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
Distance Ring
420247114
|
|||
|
Available to order. Add to View Price |
|||
|
#20
O-Ring
420631610
Superseded by 420631612
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#21
Bearing Cover
420611440
Superseded by 420611444
|
$48.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
Oil Seal
420950089
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
Torx Flange Screw M8 X 25
420440372
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#24
Shim 0.5
420944584
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#25
Ball Bearing
420232785
Superseded by 420932580
|
$10.33 | ||
|
Available to order. Add to View Price |
|||
|
#26a
Shifting Sleeve Kit
420257676
|
|||
|
Available to order. Add to View Price |
|||
|
#26b
Not Available As Spare Part - Shifting Sleeve
|
|||
|
Unavailable |
|||
|
#27
Not Available As Spare Part - Shifting Fork
|
|||
|
Unavailable |
|||
|
#28
Not Available As Spare Part - Pin
|
|||
|
Unavailable |
|||
|
#29
SET SCREW M6 X 8 - Call your local BRP dealership
420841771
|
$3.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
Torx Flange Screw M6 X 85
420641228
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#31
Torx Flange Screw M6 X 35
420641258
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
CABLE CLAMP - Call your local BRP dealership
420251690
|
$9.19 | ||
|
Available to order. Add to View Price |
|||
|
#33
Torx Flange Screw M8 X 35
420641188
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
