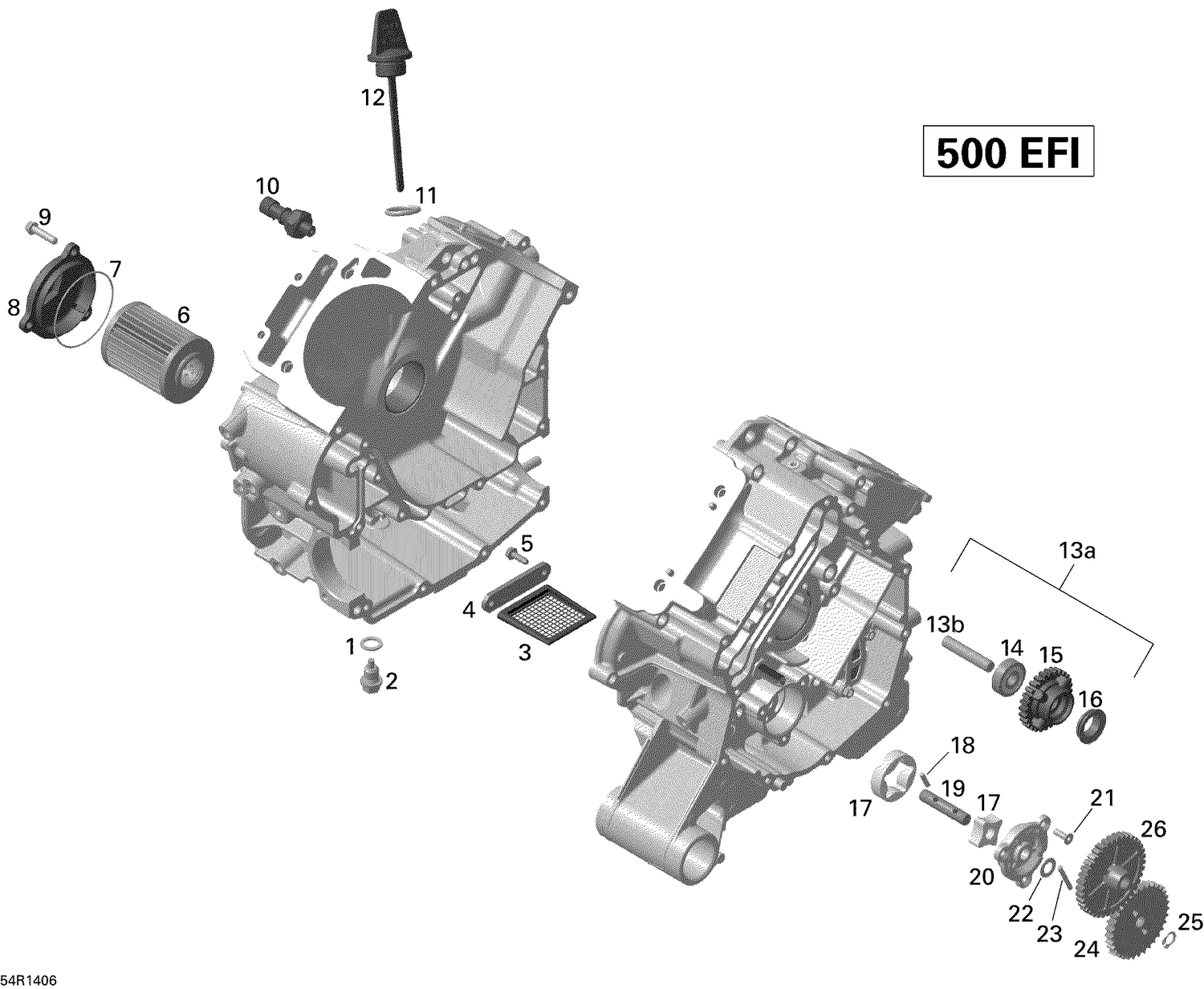

01- Engine Lubrication Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Copper Washer
420250640
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
Plug screw
420841921
Superseded by 420841924
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
Oil Sieve
420256322
|
$28.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
Cover Sieve
420210661
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
Taptite Screw M5 X 16
420941925
Superseded by 420941928
|
$0.50 | ||
|
Unavailable |
|||
|
#6
Oil Filter
420256188
|
$13.77 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-Ring
420230920
Superseded by 420230923
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#8
Oil Filter cover
420210418
Superseded by 420612135
|
$11.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
Torx Flange Screw M6 X 25
420641238
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#10
Oil Pressure Switch
420856537
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-Ring
420631640
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#12
Oil Dipstick
420256802
|
$17.05 | ||
|
Available to order. Add to View Price |
|||
|
#13a
Idle Gear Ass'y, 28 Teeth
420434307
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#13b
Not Available As Spare Part - Location Pin
|
|||
|
Unavailable |
|||
|
#14
Not Available As Spare Part - Ball Bearing
|
|||
|
Unavailable |
|||
|
#15
Not Available As Spare Part - Idle Gear, 28 Teeth
|
|||
|
Unavailable |
|||
|
#16
Oil Seal
420430555
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Oil Pump Rotor
420256348
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Needle Pin
420232730
Superseded by 420232731
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#19
Oil Pump Shaft
420237059
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Oil Pump Cover
420210641
Superseded by 420210646
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Torx Head Screw M5 X 16
420640821
Superseded by 420640823
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Thrust Washer
420827590
|
$4.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
Needle Pin
420232431
Superseded by 420232432
|
$4.59 | ||
|
Available to order. Add to View Price |
|||
|
#24
Oil Pump Gear, 33 Teeth
420434320
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Circlip
504152282
|
$3.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
Idle Gear, 38 Teeth
420434300
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
