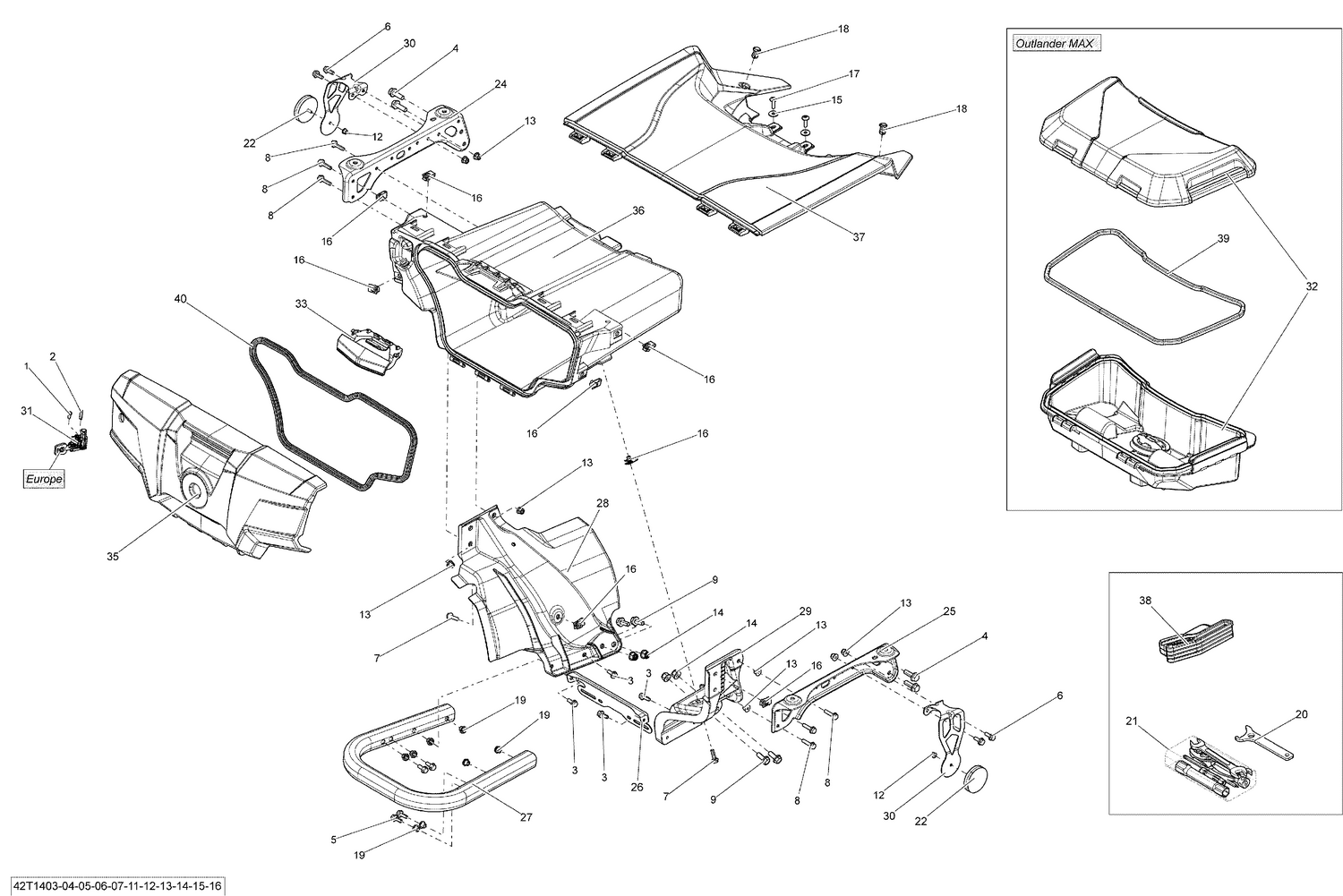

09- Rear Cargo Box Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Socket Head Screw M5 X 10
205951046
|
$2.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
Socket Set Screw M5 X 20
206252044
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
Hex. Flange Screw M6 X 16, Scotch Grip
207561646
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Hex. Flange Screw M8 X 25, Scotch Grip
207582586
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Hex. Flange Screw M6 X 16
207661634
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#6
Hex. Flange Screw M6 X 16
207661644
|
$0.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
Hex. Flange Screw M6 X 20
207662044
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
Hex. Flange Screw M6 X 25
207662544
|
$0.66 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
Hex. Flange Screw M8 X 20
207682044
|
$1.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
Flange Elastic Nut M5
233251414
Superseded by 233251434
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#16
Panel Nut M6 X 1.0
250000048
Superseded by 250100198
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
Torx Screw M6 X 20, Scotch Grip
250000446
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
Tuflok Plastic Rivet
293150089
Superseded by 293150230
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
Threaded Insert M6 X 1.0
293450274
Superseded by 250100242
|
|||
|
Unavailable |
|||
|
#19
Threaded Insert M6 X 1.0
293450274
Superseded by 250100242
|
|||
|
Unavailable |
|||
|
#20
Adjustment Wrench
529000035
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#21
Tool Kit
704700148
Superseded by 704700162
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Red Reflector
705002408
Superseded by 705011221
|
$14.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
LH Support
705004563
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
RH Support
705004564
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
Plate Support
705004806
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Rear Bumper Ass'y
715001564
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
REAR BUMPER - Call your local BRP dealership
715001566
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
LH Cargo Support
705006997
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
RH Cargo Support
705006998
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Reflector Support
705202576
|
$9.29 | ||
|
Available to order. Add to View Price |
|||
|
#31
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#32
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#33
Handle Latch
708200272
Superseded by 708201250
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
Rear Panel
708300150
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
Rear Panel
708300511
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
Rear Storage Box
708300674
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
REAR STORAGE COVER - Call your local BRP dealership
708300848
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
Remote Control
710002270
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#40
NEOPRENE SEAL - Call your local BRP dealership
293250275
|
$6.83 | ||
|
Available to order. Add to View Price |
|||
