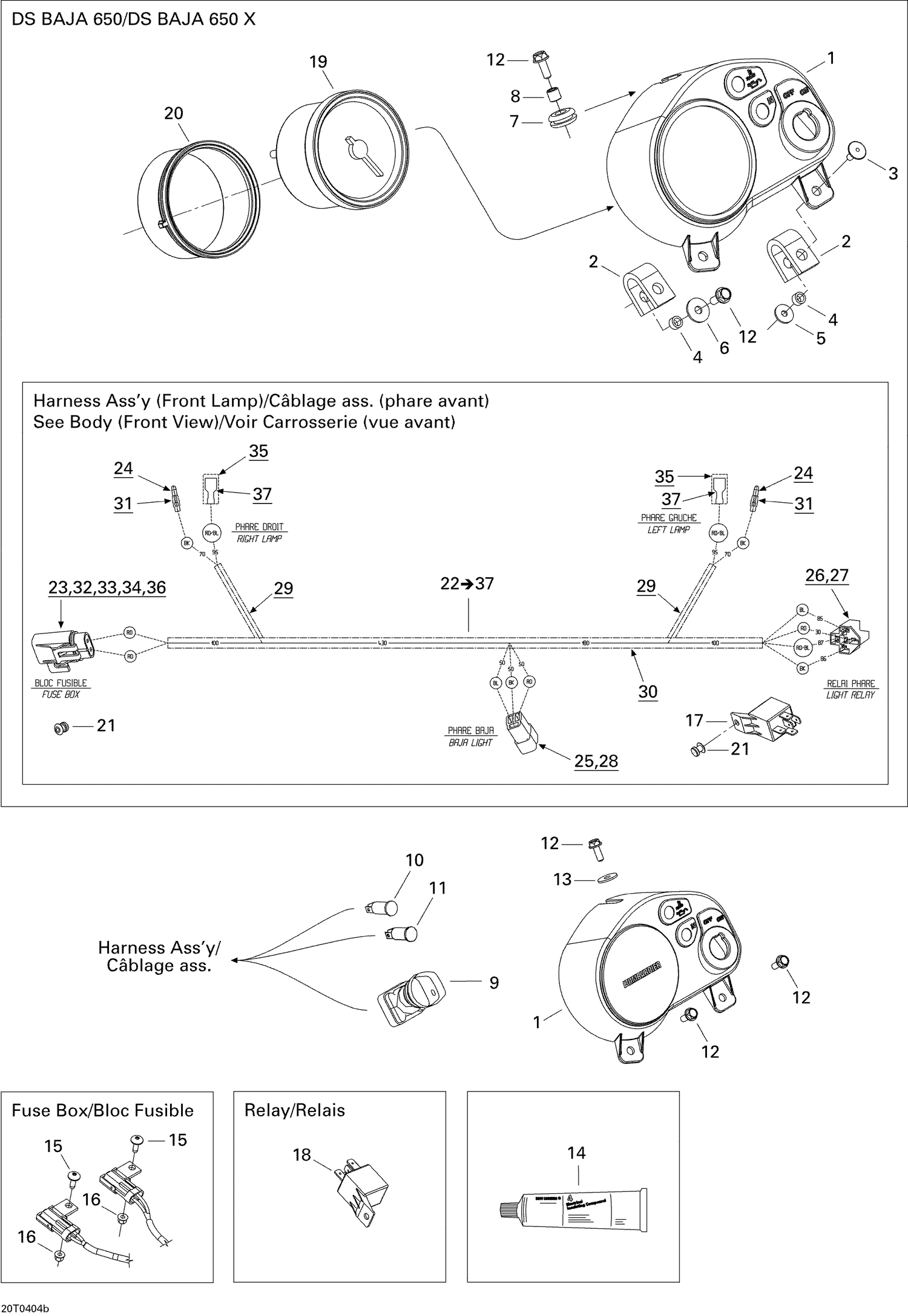

10- Electrical System 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DASHBOARD - Call your local BRP dealership
710000060
|
$14.42 | ||
|
Available to order. Add to View Price |
|||
|
#1
DASHBOARD - Call your local BRP dealership
710000250
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOLDER - Call your local BRP dealership
710000505
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
Pop Rivet 3/16"
390409600
Superseded by 293150104
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#4
Bushing
293900029
Superseded by 293900104
|
$5.50 | ||
|
Available to order. Add to View Price |
|||
|
#5
Washer
517124300
|
$0.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
Flat Washer
224061201
|
$1.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
Grommet
293720053
Superseded by 709000582
|
$4.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
Bushing
293900045
Superseded by 293900105
|
$7.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
IGNITION SWITCH - Call your local BRP dealership
710000075
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BLANK KEY (A TYPE) - Call your local BRP dealership
710000137
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BLANK KEY (B TYPE) - Call your local BRP dealership
710000101
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Pilot Lamp, Red
710000062
|
$19.49 | ||
|
Unavailable |
|||
|
#11
Pilot Lamp
710000063
|
|||
|
Available to order. Add to View Price |
|||
|
#12
Hex. Flange Screw M6 X 16
210261680
Superseded by 210261650
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
Hex. Flange Screw M6 X 16
210261680
Superseded by 210261650
|
$1.69 | ||
|
Unavailable |
|||
|
#13
Flat Washer
224061201
|
$1.39 | ||
|
Unavailable |
|||
|
#14
Was 293550004 Dielectric Grease, 150 g
219704453
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Forming Screw M5 x 16
732600030
Superseded by 250000676
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#16
Flange Elastic Nut M5
233251414
Superseded by 233251434
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
Relay
410113200
Superseded by 710010053
|
$24.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
Relay
410113200
Superseded by 710010053
|
$24.49 | ||
|
Unavailable |
|||
|
#19
TACHOMETER - Call your local BRP dealership
710000426
|
$201.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
GAUGE SUPPORT - Call your local BRP dealership
710000427
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Pop Rivet 3/16"
390402000
|
$0.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
FRONT LAMP HARNESS ASS'Y - Call your local BRP dealership
710000256
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Cushion
278000805
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#24
Male Terminal
278000230
|
$4.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
MALE TERMINAL - Call your local BRP dealership
409210000
|
$4.59 | ||
|
Available to order. Add to View Price |
|||
|
#26
Female Housing, 5 Circuits
409209900
|
$9.79 | ||
|
Available to order. Add to View Price |
|||
|
#27
FEMALE TERMINAL - Call your local BRP dealership
561503100
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
FEMALE HOUSING - Call your local BRP dealership
409204200
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#29
Tubing 6 mm
515175422
|
|||
|
Unavailable |
|||
|
#30
Was 409901700 Tubing (9 mm)
219704399
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
Insulated Sheath
278001008
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#32
Fuse, 15 Amperes
278000343
|
$3.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
Fuse Holder Cap
278001326
|
$7.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
Fuse Holder
278001325
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
Rubber Envelope Terminal
710000115
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
Female Terminal
710000113
|
$7.19 | ||
|
Available to order. Add to View Price |
|||
|
#37
FEMALE TERMINAL - Call your local BRP dealership
710000114
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
