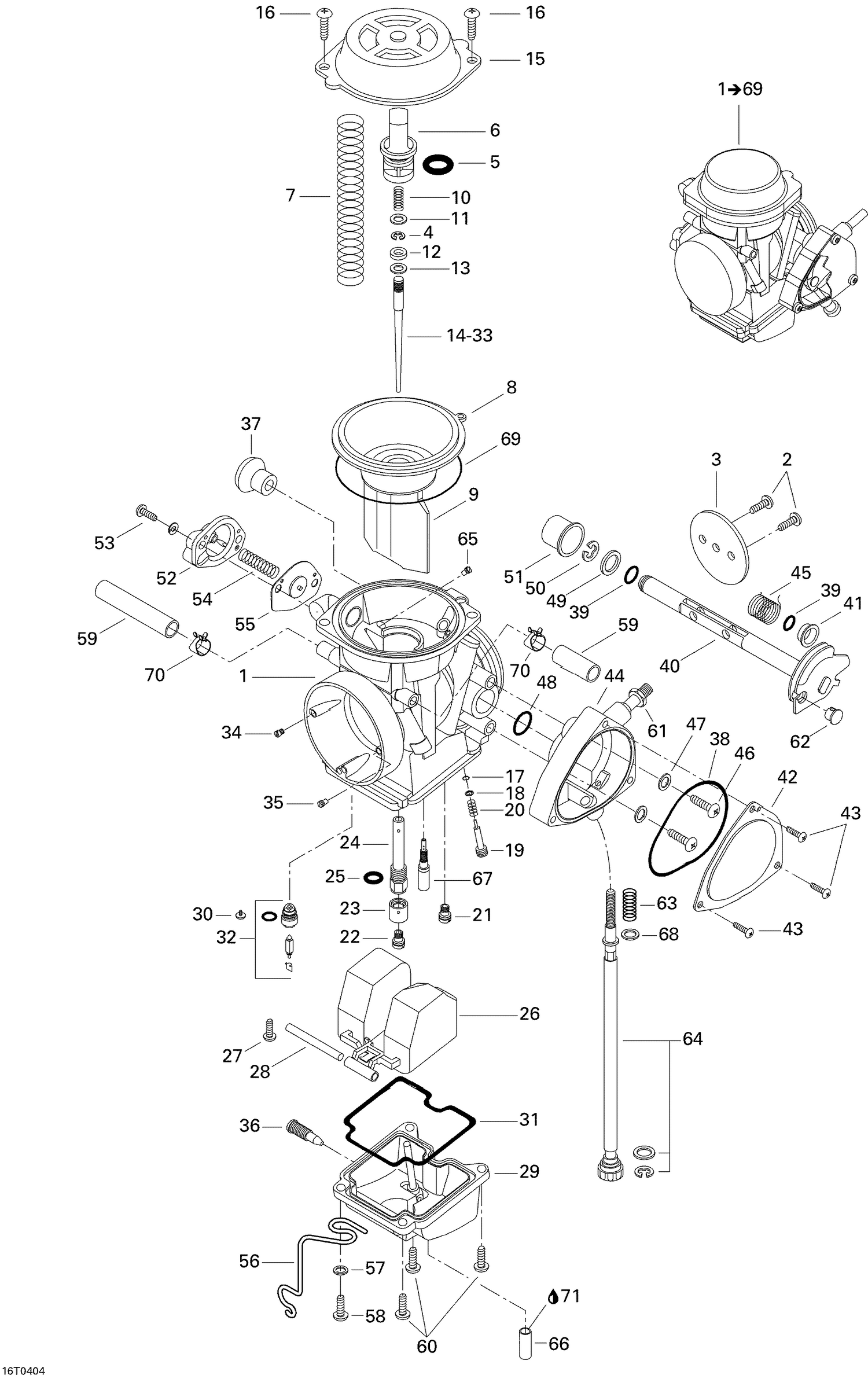

02- Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
Carburator Bsr42-4
707200142
|
$679.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
Not Available As Spare Part - Mixing body
|
|||
|
Unavailable |
|||
|
#2
Not Available As Spare Part - Screw
|
|||
|
Unavailable |
|||
|
#3
Not Available As Spare Part - Throttle Valve
|
|||
|
Unavailable |
|||
|
#4
E-Ring
404152200
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING - Call your local BRP dealership
270500144
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOLDER - Call your local BRP dealership
707200067
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING - Call your local BRP dealership
707200147
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
DIAPHRAGM - Call your local BRP dealership
707200113
|
$41.99 | ||
|
Unavailable |
|||
|
#9
Piston Valve
707200114
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING - Call your local BRP dealership
707200071
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER - Call your local BRP dealership
707200072
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
RING - Call your local BRP dealership
707200065
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER - Call your local BRP dealership
707200064
|
$7.17 | ||
|
Available to order. Add to View Price |
|||
|
#14
NEEDLE J8-6BCY22-60 - Call your local BRP dealership
707200137
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
DIAPHRAGM COVER - Call your local BRP dealership
707200116
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Screw
404161903
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING - Call your local BRP dealership
404139900
|
$7.29 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER - Call your local BRP dealership
707200018
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
ADJUSTER - Call your local BRP dealership
707200117
|
$13.99 | ||
|
Unavailable |
|||
|
#20
Spring
707200078
|
$7.99 | ||
|
Unavailable |
|||
|
#21
Starter Jet 45.0
707200108
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
MAIN JET 165 - Call your local BRP dealership
270500411
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#23
RING - Call your local BRP dealership
707200148
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Jet Holder
707200080
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
O-RING - Call your local BRP dealership
270500119
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
FLOAT ASS?Y - Call your local BRP dealership
707200103
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW - Call your local BRP dealership
404138600
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#28
Pin
404123400
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
FLOAT BODY ASS?Y - Call your local BRP dealership
707200119
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW - Call your local BRP dealership
404161861
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#31
O-Ring
707200083
|
$17.57 | ||
|
Available to order. Add to View Price |
|||
|
#32
VALVE-NEEDLE 3.0 - Call your local BRP dealership
707200139
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
Jet-needle
707200121
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
PILOT JET 110 - Call your local BRP dealership
707200122
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
JET 120 - Call your local BRP dealership
707200123
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
SCREW - Call your local BRP dealership
707200024
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
PLUNGER ASS'Y - Call your local BRP dealership
707200124
|
$53.99 | ||
|
Unavailable |
|||
|
#38
O-RING - Call your local BRP dealership
707200092
|
$24.99 | ||
|
Unavailable |
|||
|
#39
Not Available As Spare Part - Sealing ring
|
|||
|
Unavailable |
|||
|
#40
Not Available As Spare Part - Throttle Shaft
|
|||
|
Unavailable |
|||
|
#41
Not Available As Spare Part - Ring
|
|||
|
Unavailable |
|||
|
#42
COVER - Call your local BRP dealership
707200126
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
SCREW - Call your local BRP dealership
707200091
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
Not Available As Spare Part - Case
|
|||
|
Unavailable |
|||
|
#45
Not Available As Spare Part - Spring
|
|||
|
Unavailable |
|||
|
#46
Not Available As Spare Part - Screw
|
|||
|
Unavailable |
|||
|
#47
Not Available As Spare Part - Washer
|
|||
|
Unavailable |
|||
|
#48
Not Available As Spare Part - O-Ring
|
|||
|
Unavailable |
|||
|
#49
Not Available As Spare Part - Packing
|
|||
|
Unavailable |
|||
|
#50
Not Available As Spare Part - E-Ring
|
|||
|
Unavailable |
|||
|
#51
Not Available As Spare Part - Cap
|
|||
|
Unavailable |
|||
|
#52
Cover Ass’y
707200105
|
$38.49 | ||
|
Available to order. Add to View Price |
|||
|
#53
SCREW - Call your local BRP dealership
404901400
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#54
SPRING - Call your local BRP dealership
707200129
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#55
DIAPHRAGM ASS?Y - Call your local BRP dealership
707200106
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
CLIP - Call your local BRP dealership
707200130
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
Washer
707200101
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#58
Screw
404138700
|
$4.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#59
Hose
707200131
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#60
SCREW - Call your local BRP dealership
404159300
|
$3.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#61
NUT - Call your local BRP dealership
707200132
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#62
CABLE GUIDE - Call your local BRP dealership
707200058
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#63
Spring
404101700
|
$4.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#64
Cable-Adjuster
707200140
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#65
AIR JET 1.3 - Call your local BRP dealership
707200134
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#66
Hose
707200135
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#67
Jet-Pilot 40
707200136
|
|||
|
Unavailable |
|||
|
#68
WASHER - Call your local BRP dealership
707200141
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#69
Not Available As Spare Part - O-ring
|
|||
|
Unavailable |
|||
|
#70
Spring Clamp
414420700
|
$0.74 | ||
|
Available to order. Add to View Price |
|||
|
#71
Glue Tube, Loctite 454, 20 G
413708300
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
